Introductions

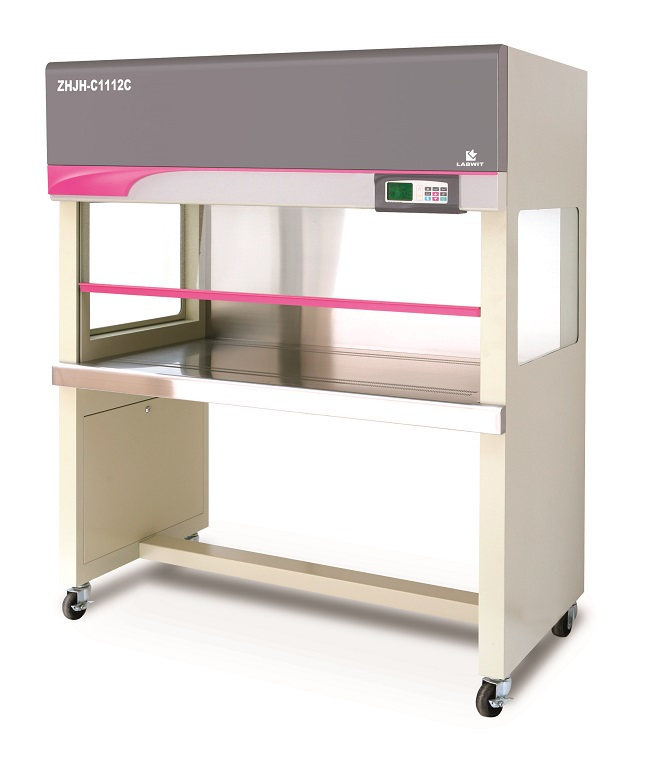

BT clean bench is a series of air cleaning equipment with elegant design which provides an operating environment with high-cleanliness in the operational area. This equipment adopts the horizontal single-direction airflow; the room air enters into the static pressure box via the pre-filter, and then finally forms the high clean horizontal single-direction airflow in the operating area via the high efficient air filter.
BT series of honorable clean bench can be classified into vertical and horizontal types by the air outflow method, single-sash and double-sash types by the number of sash, and 5 types by the net width of working area according to the International Standard, from 600mm to 1800mm. In all, there are nine optional modes for BT series.
Applications
This series of equipments widely applies environment detection and the researching the fields of pharmacy, biochemistry, agriculture, medical sanitation and electronic instrument etc.
Features
·High efficiency air filtering system equipped with prefilter.
·Multilevel adjustable airflow speed control and LED digital indicator .
·Self-locking touchable control system.
·Low air output low noise, high-pressure blower.
·Self-equilibrating vertical sliding toughened glass sash, randomly positioning.
·The big transparent toughened glass windows of both sides provides wide angle of view and good lighting condition.
·High quality stainless steel working table with smooth internal angle is easy to clean.
·Streamline luxurious design, static plastic-spraying treatment.The working area is equipped with fluorescent lamp and UV sterilizing lamp.
·Universal castors with breaker easy to move and locate.
Specification:
|
Model |
BT-C1106B |
BT-C1112B |
BT-C1115B |
|
Airflow Direction |
Vertical |
||
|
Work Surface |
Single-sided |
||
|
Particulate Cleanliness Class |
Collecting Efficiency: Federal Standard 209E class100@≥0.5µm |
||
|
Colony Count (m/s) |
Colony Count≤0.5 per dish,(90mmpetri dish) |
||
|
Velocity Setting Range (m/s) |
0.3∽0.6(Seven Steps Adjustable) |
||
|
Noise Pressure |
≤62dB(A) |
||
|
Vibration Peak Mesial Magnitude |
≤3µm |
≤4µm |
|
|
Illumination Level |
≥300Lx |
||
|
Initial Resistance (Pa) |
≤120(At Maximum Velocity) |
||
|
Net Weight (kg) |
118 |
215 |
|
|
Power (W) |
380 |
680 |
|
|
Voltage |
AC220V 50/60Hz |
||
