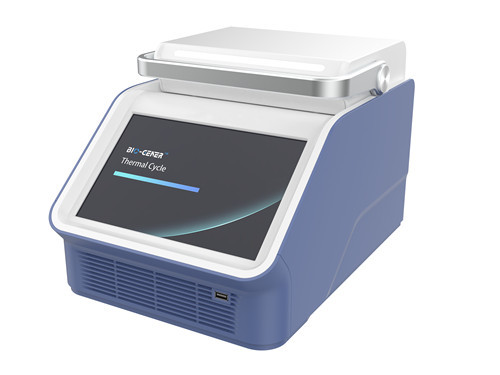

96-well PCR Amplifier

1) Long service life Peltier heating units. 2) Reinforced aluminum modules with anodizing technology can keep rapid heating-conducting properties and have enough corrosion resistance. 3) High heating and cooling rate, max. Ramping rate of 8 ℃/s, can save you precious time. 4) Self-adapting pressure hot lid makes closing the lid and tightening the lid in one step. 5) Air channel is in front and back and it allows machines to be placed side by side.
  • 96-well PCR Amplifier

SPECIFICATION

PCR Amplifier

The thermal cycler (also known as a thermocycler, PCR machine, or DNA amplifier) is a laboratory apparatus most commonly used to amplify segments of DNA via the polymerase chain reaction.

Thermal cyclers may also be used in laboratories to facilitate other temperature-sensitive reactions, including restriction enzyme digestion or rapid diagnostics. The device has a thermal block with holes where tubes holding the reaction mixtures can be inserted. The cycler then raises and lowers the temperature of the block in discrete, pre-programmed steps.


Product Features:

1) Long service life Peltier heating units.

2) Reinforced aluminum modules with anodizing technology can keep rapid heating-conducting properties and have enough corrosion resistance.

3) High heating and cooling rate, max. Ramping rate of 8 ℃/s, can save you precious time.

4) Self-adapting pressure hot lid makes closing the lid and tightening the lid in one step.

5) Air channel is in front and back and it allows machines to be placed side by side.

6) It has an Android operation system and a 10.1-inch capacitive touch screen. It has a graphical menu navigation interface and the operation is very simple.

7) Built-in 11 standard program file templates, can quickly edit the required files.

8) The running program and left time can be displayed in real-time, allow to edit files when the program is running.

9) One-click quick incubation function can meet the experiment's needs such as denaturation, enzyme cutting/enzyme-link, and ELISA.

10) Hot lid temperature and hot lid work mode can be set to meet different experiment's needs.

11) Automatic restart after power failure. When power is restored it can continue to run an unfinished program.

12) Support USB to store and copy PCR data, the user can control PCR by a USB mouse.

13) Update software by USB and LAN.

14) WIFI module built-in, one unit can control multiple PCR machines through a computer or cell phone with an internet connection.

Specification :


Technology Peltier
Block Capacity 0.2mlx48wells + 0.5mlx48wells
Block Temperature Range 0°C ~ 99.9°C
Block Heating Rate 3°C/s
Block Cooling Rate 2°C/s
Block Uniformity ≤ ± 0.2°C
Block Accuracy ≤ ± 0.2°C
Mode of Temperature Control Sim-Tube & Block Mode
Ramping Rate Adjustable 0.1°C ~ 3°C
LCD Large-size Blue LCD
Max. No. of storable programs 125 Typical Programs
Max. No. Of Cycle 99
File Named Yes
Temp. Increment/Decrement 0.1 ~ 10°C
Time Increment/Decrement 1 ~ 60s
Auto Restart Yes
Hold at 4°C Forever
Auto Pause Yes
Running Time Display Yes
Hot Cover Temperature 105°C
Height of Cover Seamless Adjustable
Hot Cover Auto Shut-Off Yes
Dimension(LxWxH) 315x240x275mm
Net Weight 8.8kg
Wide Power Supply Range 110V±10%, 220V±25%, 50/60Hz



15) Email notification after the experiment is over.
