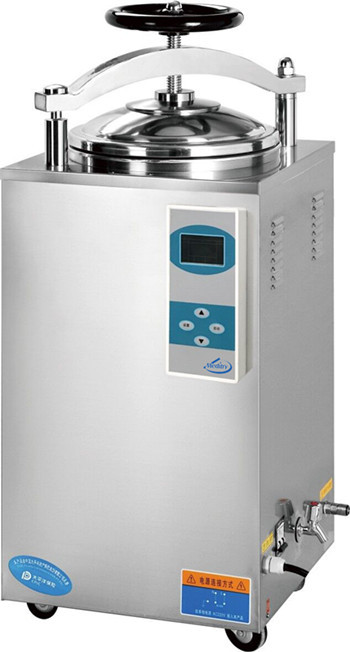

Automatic vertical pressure steam sterilizer

No.MED-35HD,MED-50HD,MED-75HD,MED-100HD
Automatic computer control, LCD screen display working status and data, touch buttons, automatic control of the sterilization process. 2. The whole machine is made of thick stainless steel, which is corrosion resistant, easy to clean, and has a long service life 3. Devices, dressings, and liquids are in fixed modes, user can define setting programs,drying function 4. Safety system: over-temperature, over-pressure automatic protection device, overload and leakage protector, overheat protecti
  • Automatic vertical pressure steam sterilizer

SPECIFICATION

Vertical pressure steam sterilizer (automatic series)

I. Application:  (Automatic control)

MED-35HD vertical steam sterilizer is composed of LCD screen, automatic control program, built-in electric heater, safety valve, pressure and temperature display, sterilization end alarm and automatic cut-off of heating power. The container has the advantages of reliable disinfection and sterilization effect, convenient operation, safe use, power saving, durability, and low price. It is an ideal equipment for disinfection and sterilization of surgical instruments, dressings, utensils, culture media, etc. by medical and health, scientific research and other units.
II. Features
1. Automatic computer control, LCD screen display working status and data, touch buttons, automatic control of the sterilization process.
2. The whole machine is made of thick stainless steel, which is corrosion resistant, easy to clean, and has a long service life
3. Devices, dressings, and liquids are in fixed modes, user can define setting programs,drying function
4. Safety system: over-temperature, over-pressure automatic protection device, overload and leakage protector, overheat protection, water shortage protection
5. Equipped with full stroke safety valve. When the pressure in the sterilizer exceeds the allowable higher use range, the safety valve automatically starts to release overpressure steam
6. Equipped with automatic cold air discharge device, automatic steam discharge function after sterilization
7. Handwheel translation type quick opening door structure,with appointment and preheating functions
8. Safety interlocking device, with safe quick opening function
9. With drying function

III.Technical parameter
Model MED-35HD MED-50HD MED-75HD MED-100HD
Chamber capacity 35L

50L

75L

100L

Chamber dimension (φ318×450)mm ( φ340×550)mm (φ400×600)mm (φ440×650)mm
Working pressure 0.22MPa
Chamber temp. uniformity ≤±1℃
Function: automatic function of discharging cold air, sterilizing, timing, exhausting steam, drying, alarm
Timer range  0~99 hours 59 minutes
Sterilizer temp. for selection 105~134℃
Safety over-temperature, over-pressure automatic protection device, overload and leakage protector, overheat protection, water shortage protection,With self-locking function
Voltage AC220V 50Hz AC220V 50Hz
Power 2.5kW

3kW

4.5kW


Stainless steel basket 2 2 2
Exterior dimension(mm) 450×450×1010 510×470×1140 560×560×1120 540×560×1250
Packing dimension(mm) 570×550×1150 590×590×1280 650×630×1280 680×630×1380
Gross Weight /Net Weight 72Kg/56Kg 88Kg/68Kg 100Kg/80Kg 115Kg/85Kg
