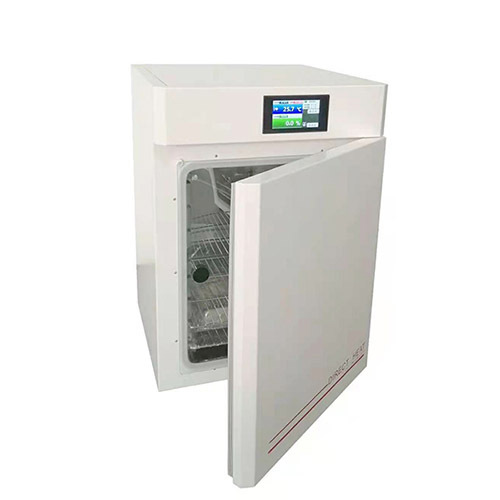

Carbon dioxide CO2 incubator (controlled by infrared probe)

No.CI060
Double door structure: After the outer door is opened, observe the experimental situation of the studio through the inner door made of high-strength tempered glass, and the temperature and humidity are not affected. The CO2 concentration sensor adopts which can directly display the CO2 concentration inside the box and is reliable in
  • Carbon dioxide CO2 incubator (controlled by infrared probe)

SPECIFICATION

                                              Carbon dioxide CO2 incubator (controlled by infrared probe)
Structural characteristics
The inner liner is made of high-quality stainless steel material.
Microcomputer intelligent temperature controller, P.I.D. control, stable temperature control, high accuracy, LED high brightness digital display, intuitive and clear.
Double door structure: After the outer door is opened, observe the experimental situation of the studio through the inner door made of high-strength tempered glass, and the temperature and humidity are not affected.
The CO2 concentration sensor adopts which can directly display the CO2 concentration inside the box and is reliable in operation.
The independently installed door heating system can effectively avoid the exposure phenomenon on the inner door glass.
The studio uses a water tray for natural evaporation and humidification, and the humidity is directly displayed by the instrument.
The box is equipped with a ultraviolet sterilization lamp, which can regularly disinfect the culture room with ultraviolet radiation, thereby more effectively preventing cell contamination during cultivation.
Technical parameters for infrared probe control


1 Volume 80L 160L 80L 160L
Heating method: air jacket water jacket
2. Temperature control range: room temperature+5-65 ℃
3. Temperature resolution 0.1 ℃
4. Constant temperature fluctuation ± 0.2 ℃
5 CO2 control range 0-20%
6 CO2 control methods: Imported infrared microcomputer CO2 concentration probe control
7. Humidification method: natural evaporation (water distribution tray)
8. Humidity range greater than 95% RH (during stable operation at+37 ℃)
9 working hours of 1-9999 minutes or continuous
10 power 400W 500W 850W 1250W
11 working power supply AC 220V 50Hz
12 Studio size 400 * 400 * 500 500 * 500 * 650 400 * 400 * 500 500 * 500 * 650
13 Overall dimensions 550 * 610 * 785 650 * 710 * 935 550 * 610 * 775 650 * 710 * 925
