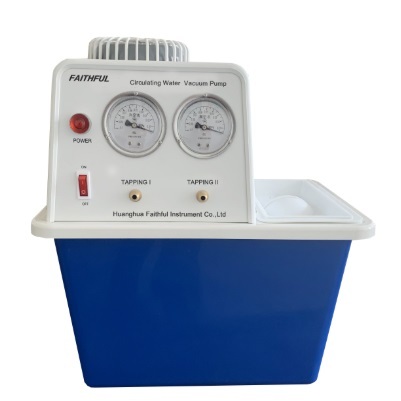

1. Many pumping holes, can be used alone or with two vacuum gauge
2. The material of centre of the body is stainless steel and special plastics. The material of the tank is special antisepsis plastics.
3. Equipped with special fluid muffle to reduce the friction noise of the gas and liguid in water. The vacuum will be higher and more stable.
4. Corrosion resisting, no pollution, low noise, convient to move and can add vacuum control valve if the customer needs.
5. The material of the water tank is special plastics, corrosion resisting to the things with acetone, aether, chloroform and some other chemiclas.
|
Power |
Voltage |
Flow |
Lift |
Machine Material |
Tapping |
Single Tap Sucking Rate |
Max Vacuum Degree |
Water Storage Tank Volume |
Dimension (L*W*H) |
Weight |
SHZ-DⅢ(A) |
180W |
220V |
20L/MIN |
8M |
Anti-Corrosion |
2 pcs |
10L/MIN |
0.098MPA |
15L |
400*290*440 |
15KG |
SHZ-DⅢ(P) |
180W |
220V |
20L/MIN |
8M |
Telfon |
2 pcs |
10L/MIN |
15L |
400*290*440 |
15KG |
|
SHZ-DⅢ(S) |
180W |
220V |
20L/MIN |
8M |
Stainless Steel |
2 pcs |
10L/MIN |
15L |
400*290*440 |
15KG |
|
Vacuum pump doesn’t have function of vacuum adjusting for its own, if required, please equip vacuum control device. |
