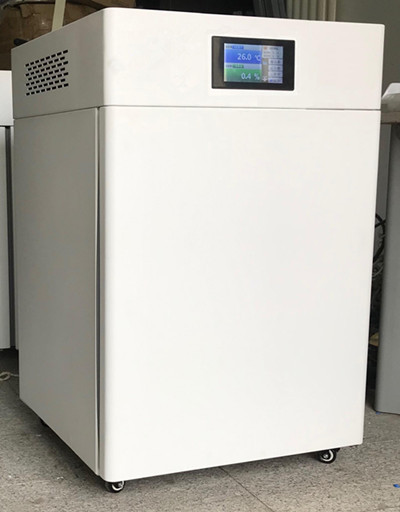

CO2 incubator

No.CIB040
The intelligent carbon dioxide incubator is used in a wide range of fields such as cell biology, oncology, genetics, immunology, virus research, cytology, and genetic engineering research. It is an ideal device for modern medicine, pharmaceutical industry, biochemistry, and agricultural science research. The CO2 incubator, air jacket, and water jacket heating all adopt advanced pollution control technology to protect your precious cells, reduce time and resource loss, and increase the stability
  • CO2 incubator

SPECIFICATION


                                                                    CO2 incubator
Product Description
The intelligent carbon dioxide incubator is used in a wide range of fields such as cell biology, oncology, genetics, immunology, virus research, cytology, and genetic engineering research. It is an ideal device for modern medicine, pharmaceutical industry, biochemistry, and agricultural science research.
The CO2 incubator, air jacket, and water jacket heating all adopt advanced pollution control technology to protect your precious cells, reduce time and resource loss, and increase the stability of antibacterial technology. Convenient and fast humidity recovery plan, assisted by a fan to assist in indoor air circulation and protect the culture.
During the experiment, it is necessary to frequently open the box door, and infrared control technology is the ideal choice. Infrared technology is very sensitive to changes in CO2 concentration and is not affected by other conditions inside the incubator. High measurement accuracy avoids the influence of temperature and humidity inside the box on traditional thermal conductivity probes when monitoring CO2 concentration. If the door is closed 30 seconds after opening, it can recover to a set CO2 concentration of 5% within ≤ 3 minutes. Even in situations where multiple people need to open and close the door frequently, it can still maintain a fast, stable and uniform CO2 concentration inside the box.
Structural characteristics
Advanced touch color screen microprocessor intelligent control, the screen replaces traditional button operation, making operation convenient and program editing easy. Clear image digital display and intuitive touch. Stable temperature control, high accuracy, with overtemperature sound and light alarm function.
The inner liner is made of high-quality stainless steel material, which has the characteristics of corrosion resistance, acid resistance, easy cleaning, and never rusting.
Double door structure: After the outer door is opened, observe the experimental situation of the studio through the inner door made of high-strength tempered glass, and the temperature and humidity are not affected. The buffer glass inner door effectively ensures the safety of the sample.
CO2 is controlled using imported infrared technology.
Efficient heating design, full surface heating within the cavity, providing accurate temperature control and uniformity.
An independent door heating system can effectively prevent condensation on the inner door glass and prevent the possibility of microbial contamination caused by condensation water inside the glass door.
The box is equipped with a ultraviolet sterilization lamp, which can regularly disinfect the culture room with ultraviolet radiation, thereby more effectively preventing cell contamination during cultivation.
Mirror stainless steel inner wall and circular concave corners make it easy to clean the incubator. Laser punching stainless steel shelves can be freely adjusted according to experimental needs, without the need for tools, simple and convenient.
● CO2 inlet is equipped with HEPA high-efficiency microbial filter, which can effectively filter diameter ≥ 3 μ M particles, with a filtration efficiency of 99.99%, effectively filter bacteria and dust particles in CO2 gas (optional).
Temperature index:
Sensor type: PT100;
Measurement range: -20~110.0 ℃;
Control range: 0-100.0 ℃; (The maximum range value can be modified)
Control accuracy: ± 0.1 ℃; Temperature fluctuation: ≤ ± 0.3 ℃
Control method: fuzzy PID control; (Over temperature with relay protection)
Co2 indicator:
Sensor type: Original imported infrared type;
Measurement range: 0.0~21.0%;
Control range: 1.0-20.0%;
Control accuracy: ± 0.1%; Temperature fluctuation: ≤ ± 0.3%
Work environment:
Power supply: AC100~246V (50/60Hz);
Environmental temperature: -10~50 ℃; Relative humidity: 40-93% RH (without condensation);
