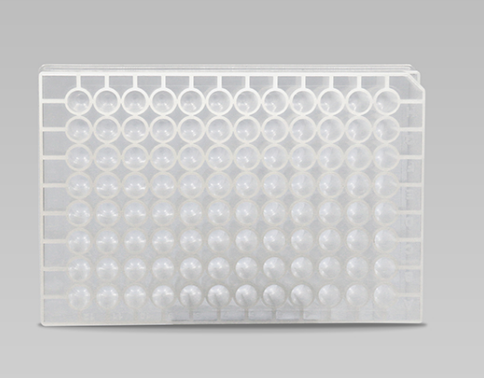

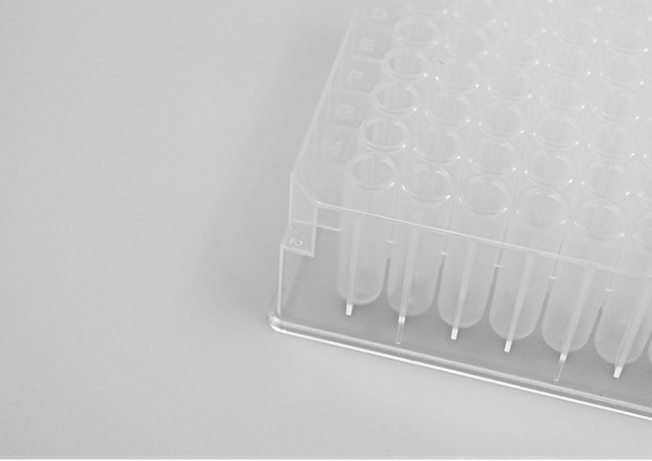

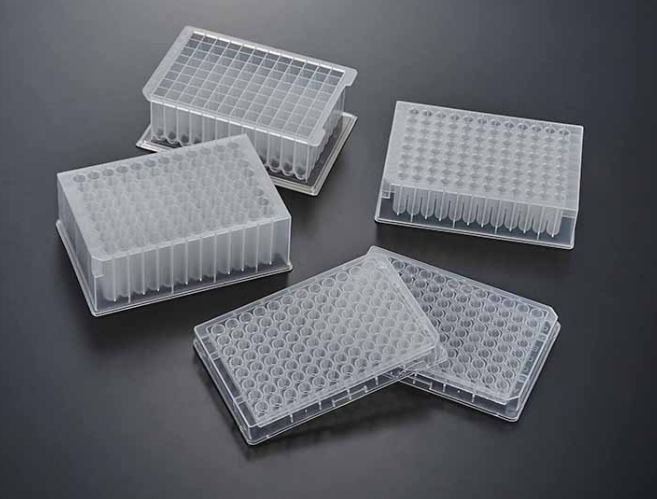

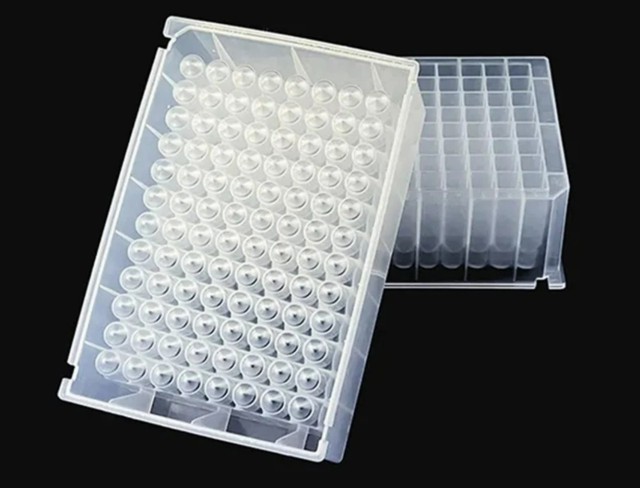

Deep Well Plate

Deep well plates are commonly used laboratory consumables for DNA testing, high-throughput reactions, sample storage and transfer, antibody titer testing, etc. In recent years, they have become well-known as one of the main consumables for nucleic acid testing. The deep well plate of BT is made of polymer material polypropylene (PP), which has good chemical compatibility and is suitable for holding most polar organic solutions, acidic and alkaline laboratory liquids.
$0.80
  • Deep Well Plate
  • Deep Well Plate
  • Deep Well Plate
  • Deep Well Plate
  • Deep Well Plate
  • Deep Well Plate

SPECIFICATION

Deep well plates are commonly used laboratory consumables for DNA testing, high-throughput reactions, sample storage and transfer, antibody titer testing, etc. In recent years, they have become well-known as one of the main consumables for nucleic acid testing. The deep well plate of BT is made of polymer material polypropylene (PP), which has good chemical compatibility and is suitable for holding most polar organic solutions, acidic and alkaline laboratory liquids. Its appearance meets SBS standards and is suitable for various automated instruments. Among them, the 96 round well plate (1mL) can be used for magnetic bead reagent kits.

Hole size: 48 holes, 96 holes
Hole type specification: round hole, square hole
Hole bottom specification: U-shaped bottom and V-shaped bottom
Capacity specification: 96 wells: 0.36mL 0.4mL 1.0mL 1.6mL 2.0mL 2.2mL
48 wells: 3.5mL 4.6mL
Material: Polypropylene (PP), compliant with USP Class VI standard

Product Features
*Stable chemical performance, excellent resistance to chemical corrosion, and high temperature and pressure resistance
*The thickness of the bottom and side walls of the board is uniform, the board body is flat and smooth, without leakage, and the aperture size is consistent
*Clear alphabetical sorting and corner cutting marks on the board for easy identification and operation
*The 96 hole deep hole plate can provide two types of sealing film and silicone pad for sealing the deep hole plate
*Maximum allowable centrifugal force RCF: 3000xg, without damage or deformation
*Temperature resistance range: -80 ℃~121 ℃
*Irradiation sterilization and non sterilization options, irradiation sterilization SAL 10-6
*No DNase/RNA, no pyrogen
Storage sample:
It can replace the conventional 1.5mL centrifuge tube for storing samples. It saves space, has a large storage capacity, and can be neatly placed. It can withstand -80 ℃ refrigerators, so it is also called a storage plate.


Processing samples:

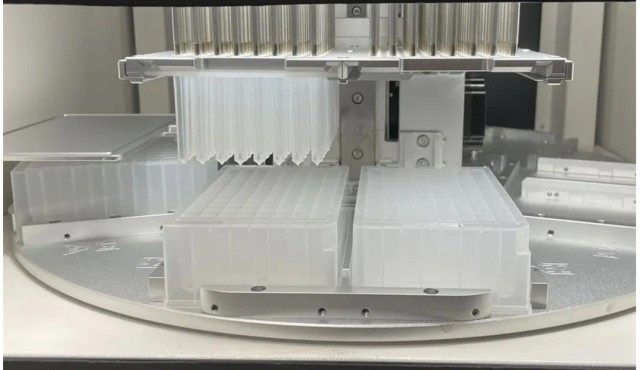

It can be combined with high-throughput automatic liquid operation instruments and software to achieve high-throughput operations on biological samples, such as protein precipitation, liquid extraction, nucleic acid extraction, etc., greatly improving the efficiency of sample processing.
Injection operation:
It is universal for various automation equipment and can be directly placed in the sample chamber of the automatic equipment for injection. Compared to traditional injection, it not only increases the number of samples placed in the sample chamber by several times, but also enables direct injection of samples after processing on a 96 well plate, eliminating the tedious work of back and forth sampling and sample placement.

Ordering information
96 well deep hole plate

Catalog Number

Capacity (mL)

Specification (well)

pattern

Capping

Sterilization

pics/box

RWP102096

1.0

96

circular hole

NO

NO

24/96

RWP103296

1.0

96

circular hole

NO

Yes

5/50

RWP202096

2.0

96

circular hole

NO

NO

24/96

RWP203296

2.0

96

circular hole

NO

Yes

5/50

RWP102596

1.0

96

circular hole

Yes

NO

5/50

RWP103596

1.0

96

circular hole

Yes

Yes

5/50

RWP202596

2.0

96

circular hole

Yes

NO

5/50

RWP203596

2.0

96

circular hole

Yes

Yes

5/50

VWP032096

0.36

96

V

NO

NO

10/100

VWP033096

0.36

96

V

NO

Yes

10/100

UWP042096

0.4

96

U

NO

NO

10/100

UWP043096

0.4

96

U

NO

Yes

10/100

BT-DMP160096

1.6

96

U

NO

NO

1/50

BT-DMP161096

1.6

96

U

NO

Yes

1/50

BT-DMP160196

1.6

96

U

Yes

NO

1/50

BT-DMP161196

1.6

96

U

Yes

Yes

1/50

BT-DMP220096

2.2

96

U

NO

NO

1/50

BT-DMP221096

2.2

96

U

NO

Yes

1/50

BT-DMP220196

2.2

96

U

Yes

NO

1/50

BT-DMP221196

2.2

96

U

Yes

Yes

1/50

BT-DMP220296

2.2

96

V

NO

Yes

1/50

BT-DMP223296

2.2

96

square hole

NO

Yes

5/50



48 well deep hole plate

Catalog Number

Capacity (mL)

Specification (well)

pattern

Capping

Sterilization

pics/box

RWP353248

3.5

48

circular hole

NO

Yes

5/50

RWP352548

3.5

48

circular hole

Yes

NO

5/50

RWP353548

3.5

48

circular hole

Yes

5/50

BT-BT-DMP463248

4.6

48

square hole

NO

Yes

5/50



Sealing film

Catalog Number

Pattern (well)

Sterilization

Pics/box

BT-DMP010096

96

NO

50/1000

BT-DMP011096

96

Yes

100/1000

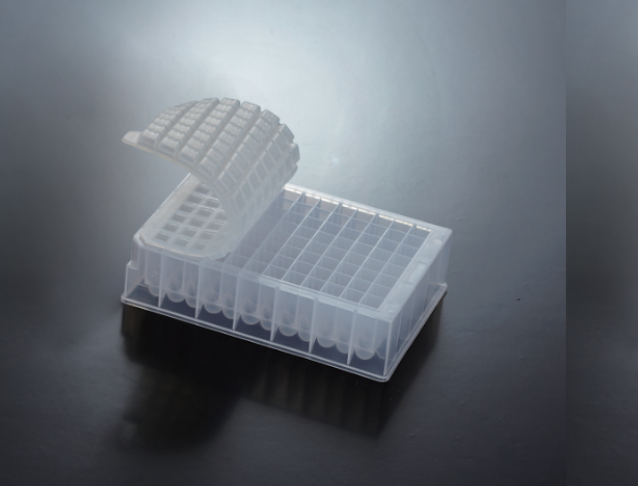

Silicone pad

目录号

Pattern (well)

Sterilization

Pics/box

BT-DMP020096

96

NO

50/100

BT-DMP021096

96

Yes

50/100
