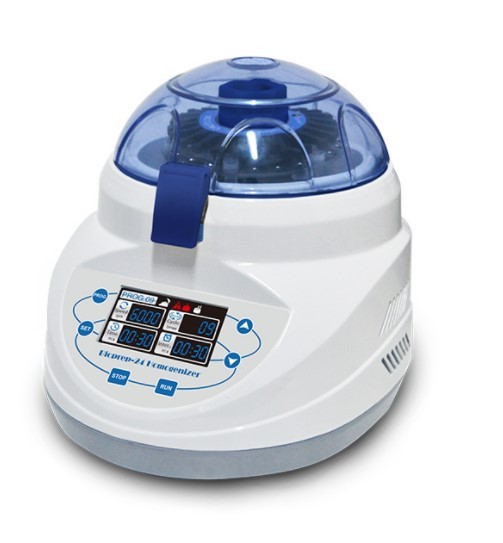

Desktop Homogenizer

The desktop homogenizer is a fast and high-throughput homogenizer that integrates three functions: grinding, cracking, and homogenization. It achieves the purpose of grinding, cracking, and homogenizing the sample through three-dimensional high-speed vibration and the tapping of grinding beads (glass beads, ceramic beads, steel balls, etc.). It can effectively homogenize samples of animal and plant tissues, bacteria, fungi, etc. It is very effective for samples that are difficult to handle with general instruments, such as spores, hair, bones, feces, soil, etc. Combined with relevant reagent kits, it can quickly, efficiently, stably, and batch extract DNA/RNA/protein, etc. from samples, while preserving the integrity of these biological molecules.
  • Desktop Homogenizer
  • High pressure homogenizer

SPECIFICATION

Ptoduct Detail

 The desktop homogenizer is a fast and high-throughput homogenizer that integrates three functions: grinding, cracking, and homogenization. It achieves the purpose of grinding, cracking, and homogenizing the sample through three-dimensional high-speed vibration and the tapping of grinding beads (glass beads, ceramic beads, steel balls, etc.). It can effectively homogenize samples of animal and plant tissues, bacteria, fungi, etc. It is very effective for samples that are difficult to handle with general instruments, such as spores, hair, bones, feces, soil, etc. Combined with relevant reagent kits, it can quickly, efficiently, stably, and batch extract DNA/RNA/protein, etc. from samples, while preserving the integrity of these biological molecules.
Fast, effective and reproducible homogenization of a wide range of samples, including tissues and cells hard to lyse. It also owns extraordinary power for the processing of even impact resistant samples such as bones or cartiage. The Bio-24 is an ideal solution for releasing DNA, RNA, Proteins, Enzymes, etc. from very tough samples while still retaining molecular integrity.

Features:

  1. 3D Rotating High Speed Motion” for quick disruption of those fibrous tissues and resistant cells
  2. 50 programmable memory settings and user optional condition settings
  3. A wide range of rotation speed settings from 4 to 7 m/s, increment 0.05m/s
  4. Brushless motor realizing no brush particle generation
  5. Easy to remove sample tube holder and fix sample tubes
  6. Easy to monitor the disruption process through the clear lid
  7. Simultaneously homogenize:

   Bio-6 6*2ml tubes or 2*5ml tubes

   Bio-24 24*2ml tubes or 12*5ml tubes

   Bio-24R 24*2ml tubes or 12*5ml tubes

  1. Disposable tubes ensure no threat of cross-contamination or sample degradation
  2. The Bioprep-6 and Bioprep-24 vigorously and uniformly shakes the tubes providing an efficient, consistent, highyield and quality homogenization usually in 35s or less

    Technical Data

 Type

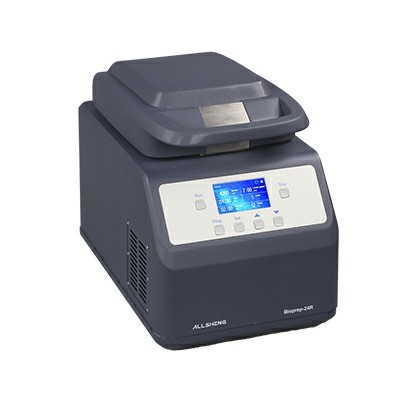

 Bioprep-24R(Cooling Function)

 Display

 OLED

 Speed Range(m/s)

 4.00m/s~7.00m/s, increment 0.05m/s

 Speed Range (rpm)

 2430rpm -- 4260rpm, increment 10rpm

 Cycle Duration

 1s -- 90s, increment 1s

 Pause time

 1s -- 90s, increment 1s

 Cycle

 10

 Programmable

 50

 Samples

 24 x 2ml/1.5ml/0.5ml or 12 x 5ml grinding tube

 Acceleration Time

 <4s

 Deceleration Time

 <4s

 Noise

 <70 db

 Power

 150W

 Dimensions (W×D×H)

 300×500×360 mm

 Weight (kg)

 40.0 kg

 Power Supply

 AC100~240V, 50/60Hz

 Temperature Range

-10℃~40℃

 From RT.to 0℃

<30min

 Temperature uniformity

±2℃

 Cooling method

Compressor refrigeration



Accessories

Code

Description

AS-13030-00

Bioprep-24R Refrigerated Homogenizer?

AS-13010-01

Rotor for 24x2.0ml

AS-13010-02

Rotor for 6x5.0ml

AS-13010-03

2.0ml tubes

AS-13010-04

5.0ml tubes

AS-13010-05

Φ1.4mm Ceramic beads

AS-13010-06

Φ2.8mm?Ceramic?beads

AS-13010-07

Φ3mm Metal beads

AS-13010-08

Φ6mm Metal beads

AS-13010-09

Φ0.2mm glass beads

AS-13010-10

Φ0.5mm glass beads

AS-13010-12

Φ3.0mm glass beads

AS-13010-13

Φ1.4mm metal beads
