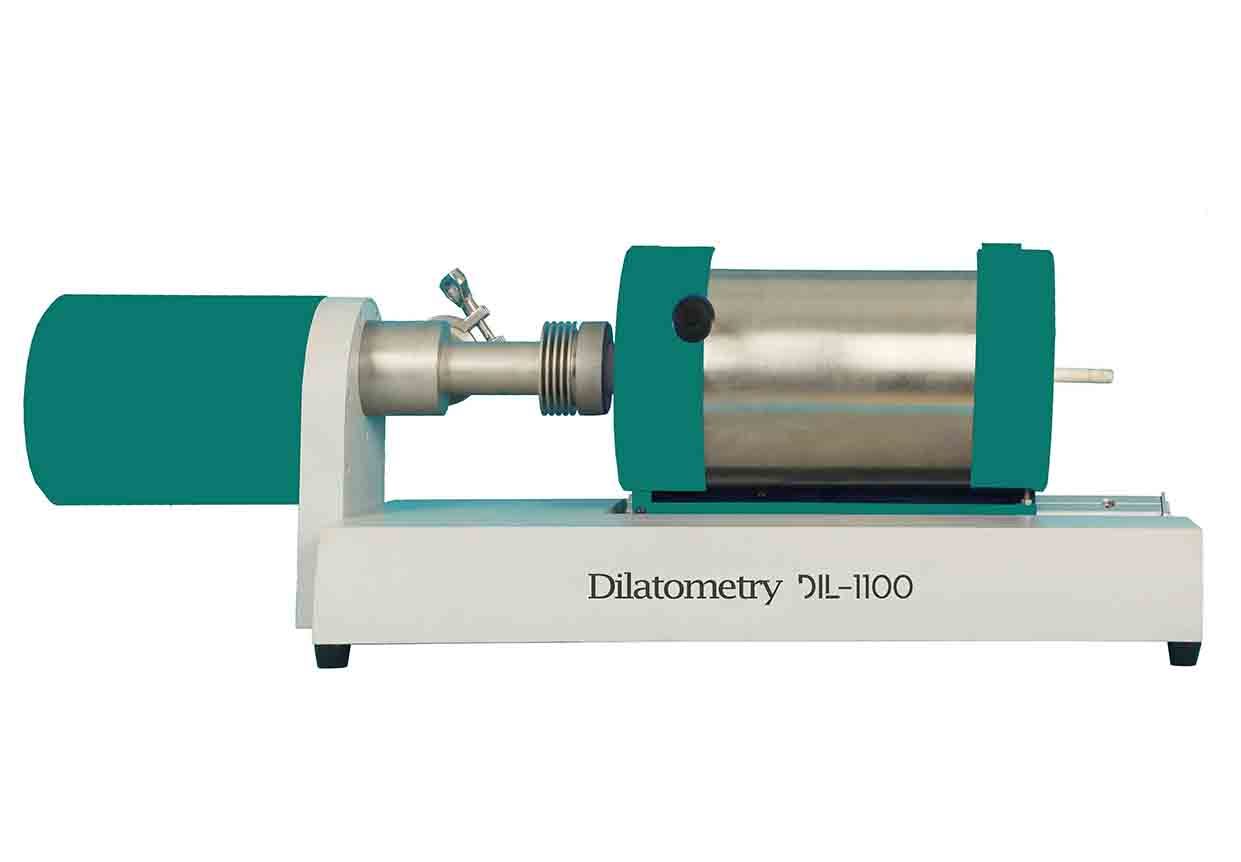

DIL-1100 Dilatometry (DIL) Introduction
Dilatometry (DIL) be used for measuring length change phenomena of ceramics, porcelain clay, glaze, graphite, glasses, metals, composites, and polymers as well as other construction materials, thus revealing information regarding their thermal behavior and about process parameters or sintering/ curing (crosslinking reactions) kinetics.
DIL-1100 Dilatometry (DIL) Features
1. Easy to connect computer by using USB and RS 232 communication ports.
2. During the experiment, the user can set the heating rate by himself, and the software PID controls the linear heating.
3. Can use the standard samples for analyzer calibration.
4. The measurement process is completed automatically; automatic plotting and support manual amendment. Can automatically calculate the coefficient of thermal expansion (CTE), volume expansion coefficient, coefficient of linear thermal expansion (CLTE) etc.
5. Branded linear bearing transmission, frictionless transmission of expansion value
DIL-1100 Dilatometry (DIL) Specs
|
Models Selection by Temperature Range |
DIL-1100: RT to 1100℃ DIL-1500: RT to 1500℃ |
|
Heating Rate |
0.1℃/min - 80℃/min |
|
Sample Size: |
0 - 25mm |
|
Sample Diameter: |
4 to 6mm |
|
Material of Sample Holder: |
fused silica, Al2O3 |
|
Change of Length: |
2mm |
|
Length Resolution: |
20nm |
|
Temperature Resolution: |
0.05℃ |
|
CTE Accuracy: |
0.01×10-6K-1 |
|
Atmosphere: |
Air, inert, vacuum |
|
Operating Mode: |
horizontal |
