SPECIFICATION

Product Description
1. Made of organic glass
2. The cell counting sheet has two independent counting chambers, each with a sample volume of 10 μ L
3. Using cell counting tablets does not require cleaning to avoid contamination
4. Cheap consumables and high cost-effectiveness

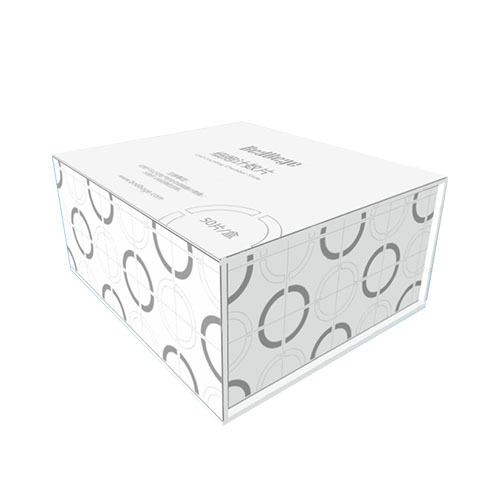

5. 50 pieces/box

Introduction to Supporting Counting Instruments:
The instrument is equipped with a built-in bright field and dual color fluorescence channel, which is not only suitable for pure cultured cells, but also for rapid counting and result analysis of different types and sources of cell samples separated from tissues, bone marrow, peripheral blood, alveoli, and liver. The instrument can also measure the transfection efficiency of green fluorescent protein (GFP) and red fluorescent protein (RFP).

Product Features
1、 Standardization - Cell Count
The 1-BodBoge fully automatic fluorescence cell analyzer is designed according to the "Blood Cell Counting Board Counting Standard" (standard: "JJG 552-1988 Blood Cell Counting Board Verification Regulations").
2- Counting volume: 10uL
3- Counting formula: Cell concentration (cells/mL)=(sum of four large square cell numbers)/4 × 2 (dilution ratio) × 104 (Recommended optimal counting concentration range: 5 × 105-6 × 106 pieces/mL; Measurement diameter range: 1-200um; Counting time: 5s to 40s)

Intelligence - Cell Counting

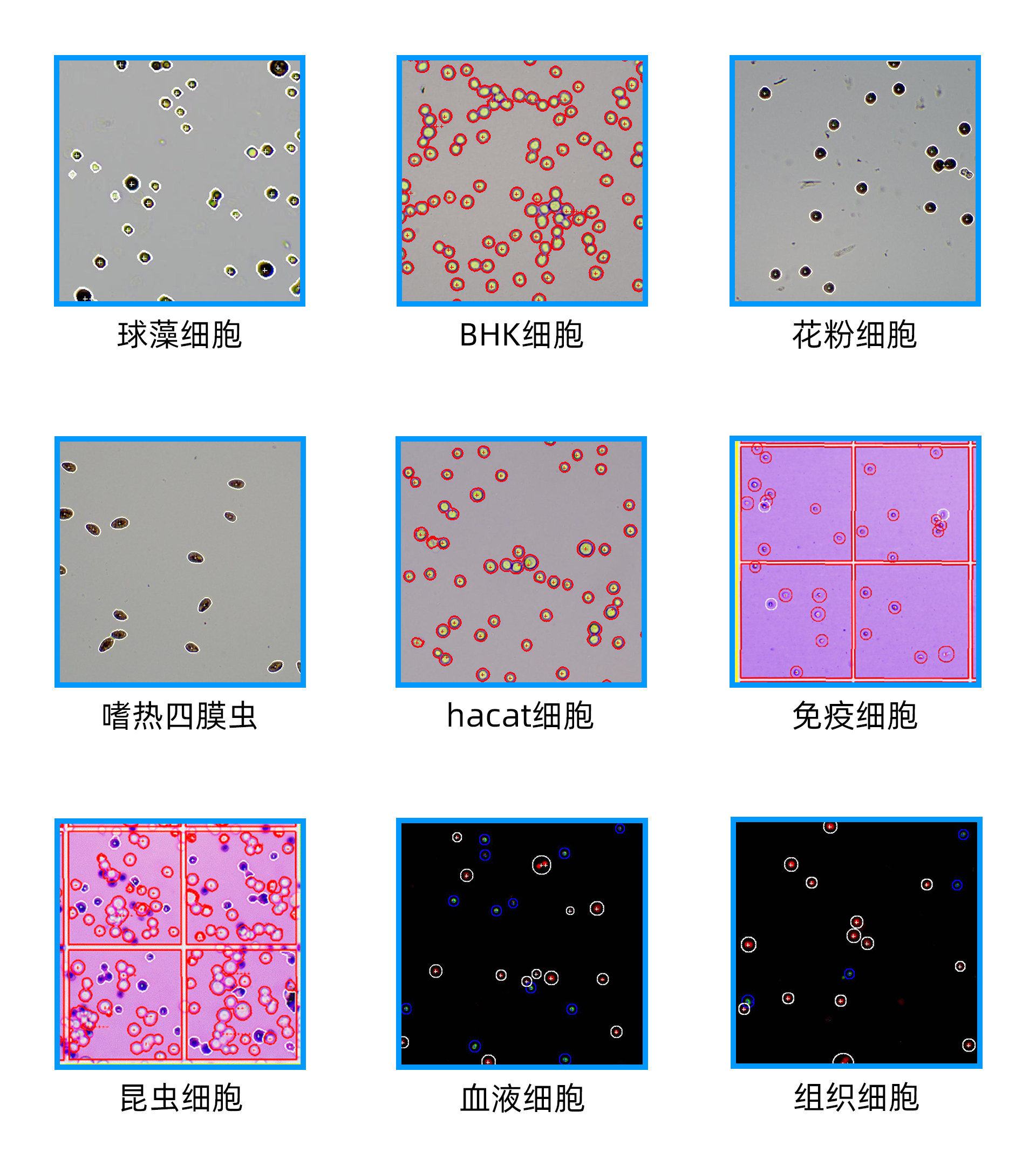

The instrument is equipped with a built-in 10X optical amplification system and an accurate software recognition system to meet more sample counting needs.2-Cell recognition effect diagram

Diversification, automation - cell counting
1. High precision X, Y, and Z three-axis linkage platform, achieving automatic scanning and photography in multiple areas, with optional scanning areas: 2 × 2, 3 × 3, 3 × 5, 3 × 7;
2- Intelligent focusing: automatic focusing during counting process;
3- Automatic exposure: The counting process automatically adjusts the exposure coefficient.

Specialization - Cell Count
1. The instrument software complies with FDA 21 CFR Part 11;
① Four levels of user management permissions allow for hierarchical settings and authorization management of users at different levels;
② Electronic records - Audit trails ensure that every piece of data has clear and complete electronic records.
2- Provide 3Q verification services for instruments (IQ/OP/PQ);
3-Cell counting results include: total cell concentration, live/dead cell concentration, live/dead cell ratio, total cell aggregation rate/concentration, live cell aggregation rate/concentration, dead cell aggregation rate/concentration, and other counting results; Original images, identification images, bar charts, scatter plots, contour maps, report forms, etc.

Transfection experiment
The instrument can measure the transfection efficiency of green fluorescent protein (GFP) and red fluorescent protein (RFP).
