SPECIFICATION
The E-prep liquid based slide system (LBC) is a third-generation slide system based on the first generation liquid based slide system, with a slide principle of filter membrane and sedimentation. The production system consists of E-prep 1000, preservation solution, and filtration membrane.
Characteristics of E-prep Liquid based Film Production System:
1. Easy to operate, just one click operation can start the preparation, gynecological samples can be directly prepared without special treatment
2. Fast production, able to complete 120 sample productions in 1 hour
3. Integrate unique double-layer filter membranes with sedimentation film making methods. The double-layer filtration membrane method removes unnecessary components of mucus impurities through the first layer of membrane, while retaining effective diagnostic components through the second layer of membrane; In addition, the settling method prioritizes the adsorption of diseased cells onto glass slides through natural gravity.
4. Patent preservation solution, ethanol preservation matrix, non-toxic and environmentally friendly. The preservation solution has good preservation of cell morphology, and can also lyse mucus and blood cells, with excellent staining background.
5. Widely applicable, it can be used in gynecology and non gynecology, including pleural and peritoneal fluid, sputum, urine, pericardial fluid, fiberoptic bronchoscopy brush examination, and tissue puncture in non gynecology.
6. The remaining samples from the production can be used for HPV DNA testing, immunohistochemistry testing, fluorescence in situ hybridization testing, HC2 testing, and other tests
The three major advantages of E-PREP liquid based cell preservation solution are:
1. Increased the viability of the extracted cells: cells extracted once can be examined multiple times; GYN (gynecological) preservation solution can be used for other tests such as STD, HPV, etc;
2. Cell preservation: Putting the extracted cells into the corresponding preservation solution can effectively prevent cell deformation problems such as drying or shrinkage;
3. Remove foreign substances and improve the quality of glass slides: Place the extracted cells in a preservation solution to separate foreign substances such as blood, mucus, proteins, etc. surrounding the cells from diagnostic cells.
• Preservation Solution (Gynecology): Paishi Medical Technology provides specialized preservation solutions for different types of samples. These preservation solutions can effectively digest the mucus and blood in the lysed samples, providing pure cell samples for the subsequent preparation process.
• Preservation treatment solution (non gynecological): cell preservation solution used for non gynecological examination and diagnosis of lung cancer, thyroid cancer, breast cancer, kidney cancer, etc; Cell extraction methods: Fine needle aspiration (FNA), urine (sputum, tracheal branch cleaning); Fluid (ascites, pleural effusion).
Double layer membrane filter bottle: This is one of the core components of the E-PREP system. The double-layer membrane filtration bottle removes impurities through the first layer of membrane, and filters small cells through the second layer of membrane while retaining effective diagnostic components, ensuring that the cells on the prepared glass slide are clear and evenly distributed, providing high-quality diagnostic samples for pathologists.
（2） Operation steps: Simple and convenient, efficient and time-saving
The operation process of E-PREP liquid based cell preparation system is very simple and convenient, even non professionals can quickly get started. The specific steps are as follows:
1. Use a specialized cervical collector to collect samples, ensuring the integrity and representativeness of the samples.
2. Collect 100% of the collected samples in E-prep preservation solution, allowing the preservation solution to fully utilize its ability to digest and lyse mucus and blood.
3. Upload the anti slip glass slide and double-layer membrane filter onto the E-Prep 1000 slide machine, and pour some sample preservation solution into the double-layer membrane filter bottle.
4. Select the corresponding production mode on the production machine, set the parameters, and start the production program. The entire production process is automatically completed by machines, greatly saving manpower and time.
After the production is completed, dyeing and film reading operations are carried out. Due to the high quality of glass slides prepared by the E-PREP system and uniform cell distribution, pathologists can make faster and more accurate diagnoses when reviewing the slides.
（3） Production principle: the perfect combination of science and technology
The principle of E-PREP liquid based cell preparation system reflects the profound technical expertise of Paishi Medical Technology in the field of pathological diagnosis. The core steps are as follows:
1. Pour the sample preservation solution into a double-layer membrane filter bottle.
2. Through negative pressure suction and natural settling, the first layer of membrane can effectively remove impurities, while the second layer filters out small cells while retaining cell components that are important for diagnosis.
3. Unscrew the second layer of membrane bottle, insert the glass slide, and then screw on the second layer of membrane bottle. The cells will be transported onto the glass slide.
Afterwards, remove the slide and the slide making process is successfully completed.
This filming principle not only ensures the integrity and uniform distribution of cells, but also greatly reduces the impact of human factors on the quality of filming, providing a reliable sample basis for pathological diagnosis.
3、 Clinical data: Performance of E-PREP
The E-PREP liquid based cell preparation system from Paishi Medical Technology has performed well in clinical applications. As a representative of the third-generation liquid based cell preparation technology, the E-PREP system has brought many benefits to pathological diagnosis with its technological advantages. It can effectively improve the accuracy of diagnosis and reduce the occurrence of misdiagnosis and missed diagnosis. At the same time, the E-PREP system produces high-quality glass slides with uniform cell distribution, greatly improving the efficiency of pathologists. In addition, the E-PREP system is easy to operate and can save a lot of time and labor costs, which is of great practical significance for medical institutions with tight medical resources.
4、 Product Registration
The E-PREP liquid based cell preparation system and its related products have obtained registration certification from China NMPA. Among them, the registration certificate number of the E-Prep film maker is Guoxie Bei 20190281, and the registration certificate numbers of the liquid based cell preservation solution (gynecological and non gynecological) are Guoxie Bei 20150533 and Guoxie Bei 20150181, respectively. These registration certificates are not only proof of the legal listing of products, but also important for their quality and safety. Medical institutions and pathologists can use the E-PREP liquid based cell preparation system with confidence, without worrying about product quality and safety issues.
5、 Conclusion: Embarking on a new era of cellular pathology diagnosis
The E-PREP liquid based cell slide system of Paishi Medical Technology has brought new hope and opportunities to the field of pathological diagnosis with its * * technology, simple and convenient operation process, * * clinical manifestations, and authoritative registration certification. It can not only improve the accuracy and efficiency of diagnosis, but also save a lot of time and labor costs for medical institutions. In today's constantly advancing medical technology, the E-PREP liquid based cell preparation system will strive to make greater contributions to human health.
Product Introduction of PATHTech from Korea
PATHTech was established in South Korea in 2010 and has obtained GMP, ISO9001, ISO14001, and ISO13485 certifications. PATHTech specializes in diagnostic products in the fields of histopathology and cell pathology. Its new generation liquid based cytology detection system, the filtration membrane&precipitation method, is the third generation liquid based cytology slide preparation technology. Currently, the preservation solution and filtration device of this detection system have been patented. Since its establishment, Paishi has become an excellent export enterprise in South Korea with its superior product performance, strong sales team, and top-notch service support. Currently, the company's products are exported to Europe, South America, Africa, Southeast Asia, and other places. At present, Shanghai Botaike Biotechnology Co., Ltd. is the exclusive distributor of South Korean PATHTech in China.

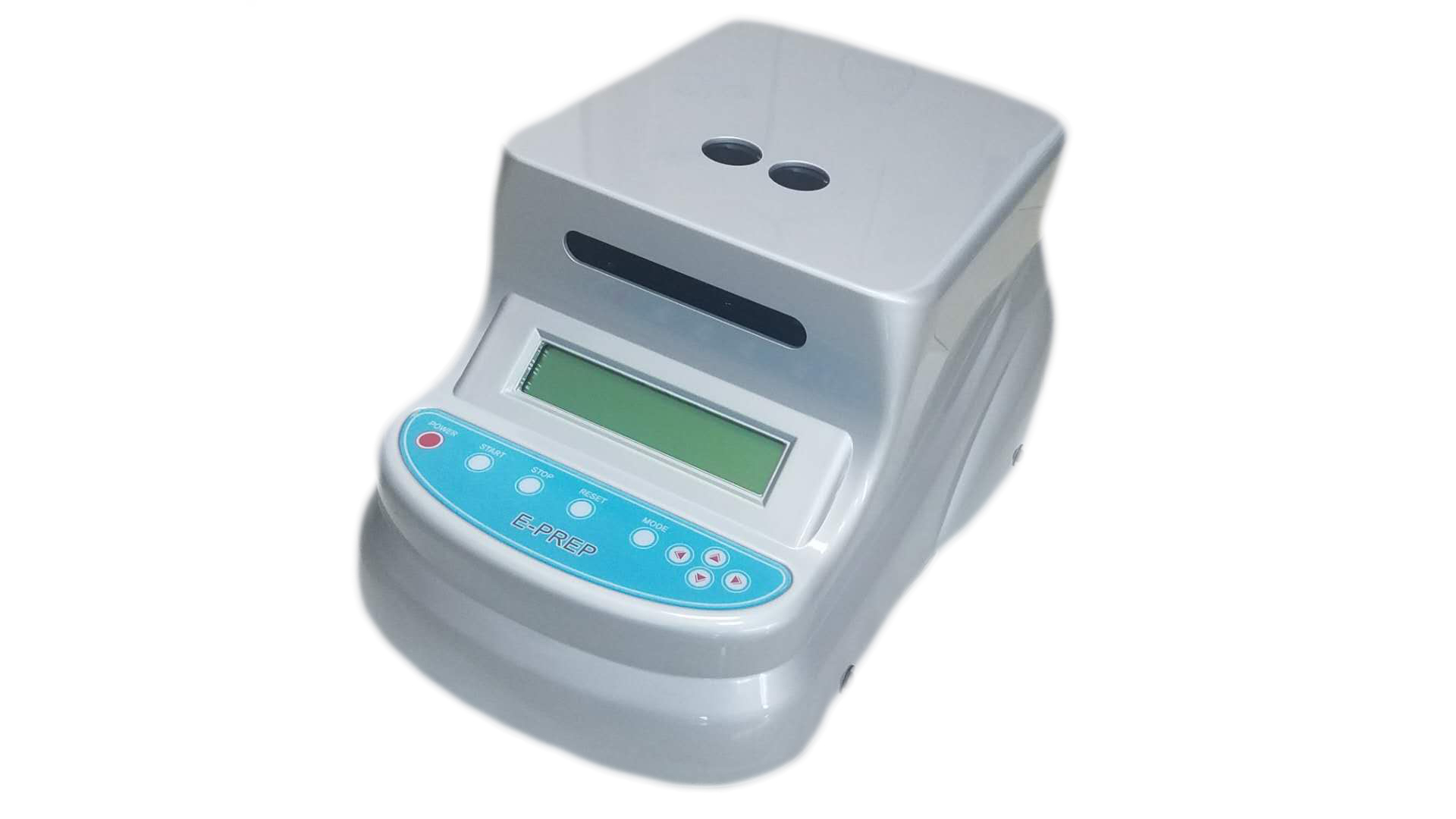

The classic work of liquid based TCT film production - the Korean Pai Shi E-PREP film production machine. The E-prep liquid based slide system (LBC) is a third-generation slide system based on the first generation liquid based slide system, with a slide principle of filter membrane and sedimentation. The production system consists of E-prep 1000, preservation solution, and filtration membrane. Among numerous liquid based film products, there are advantages and unique features that other products do not possess:
1. Fast production speed, producing 2 pieces in 30 seconds, approximately 120 pieces per hour
2. Advanced principle - combining double-layer membrane filtration with sedimentation, integrating the advantages of membrane and sedimentation to maintain the original morphology of cells
3. The preservation solution is unique and can effectively lyse mucus and blood cells. It does not contain methanol and is harmless to operators
4. High production quality, superior to domestic production, comparable to imports
5. The machine is lightweight (30cm x 25cm x 25cm in length, width, and height, weighing approximately 20kg) and easy to operate (no pre-treatment required, just one click operation).
6. Multiple processing modes, including gynecological sample processing, sputum sample processing, body fluid sample processing, and other modes
7. Clean production background to reduce film fatigue
8. The remaining preservation solution samples can be used for HPV DNA testing, HCII testing, ISH testing, and IHC testing
9. Widely applicable in both gynecological and non gynecological fields
10. Equipped with microcomputer control, strong stability
11. No environmental pollution, the waste liquid is discharged into the waste liquid bottle through a conduit.
The E-PREP liquid based cell preparation system is a new generation product developed by Paishi Medical Technology. It adopts advanced filtration membrane and sedimentation cell preparation technology, and can be regarded as a representative of the third generation liquid based cell preparation technology. The filtering device of the production system has obtained patent authorization, which undoubtedly provides a strong guarantee for the progressiveness and uniqueness of its technology.
（1） System composition: Comprehensive solution
The E-PREP liquid based cell preparation system consists of the following key components:
E-Prep film making machine: As the "brain" of the entire system, it can effectively control various parameters during the film making process, ensuring the stability and consistency of the film making.
• Preservation solution (gynecological, non gynecological): Paishi Medical Technology provides specialized preservation solutions for different types of samples. These preservation solutions can effectively digest the mucus and blood in the lysed samples, providing pure cell samples for the subsequent preparation process.
Double layer membrane filter bottle: This is one of the core components of the E-PREP system. The double-layer membrane filtration bottle removes impurities through the first layer of membrane, and filters small cells through the second layer of membrane while retaining effective diagnostic components, ensuring that the cells on the prepared glass slide are clear and evenly distributed, providing high-quality diagnostic samples for pathologists.
（2） Operation steps: Simple and convenient, efficient and time-saving
The operation process of E-PREP liquid based cell preparation system is very simple and convenient, even non professionals can quickly get started. The specific steps are as follows:
1. Use a specialized cervical collector to collect samples, ensuring the integrity and representativeness of the samples.
2. Collect 100% of the collected samples in E-prep preservation solution, allowing the preservation solution to fully utilize its ability to digest and lyse mucus and blood.
3. Upload the anti slip glass slide and double-layer membrane filter onto the E-Prep 1000 slide machine, and pour some sample preservation solution into the double-layer membrane filter bottle.
4. Select the corresponding production mode on the production machine, set the parameters, and start the production program. The entire production process is automatically completed by machines, greatly saving manpower and time.
After the production is completed, dyeing and film reading operations are carried out. Due to the high quality of glass slides prepared by the E-PREP system and uniform cell distribution, pathologists can make faster and more accurate diagnoses when reviewing the slides.
Production principle: the perfect combination of science and technology
The principle of E-PREP liquid based cell preparation system reflects the profound technical expertise of Paishi Medical Technology in the field of pathological diagnosis. The core steps are as follows:
1. Pour the sample preservation solution into a double-layer membrane filter bottle.
2. Through negative pressure suction and natural settling, the first layer of membrane can effectively remove impurities, while the second layer filters out small cells while retaining cell components that are important for diagnosis.
3. Unscrew the second layer of membrane bottle, insert the glass slide, and then screw on the second layer of membrane bottle. The cells will be transported onto the glass slide.
Afterwards, remove the slide and the slide making process is successfully completed.
This filming principle not only ensures the integrity and uniform distribution of cells, but also greatly reduces the impact of human factors on the quality of filming, providing a reliable sample basis for pathological diagnosis.
3、 Clinical data: Excellent performance of E-PREP
The E-PREP liquid based cell preparation system from Paishi Medical Technology has demonstrated outstanding performance in clinical applications. As a representative of the third-generation liquid based cell preparation technology, the E-PREP system has brought many benefits to pathological diagnosis with its unique technical advantages. It can effectively improve the accuracy of diagnosis and reduce the occurrence of misdiagnosis and missed diagnosis. At the same time, the E-PREP system produces high-quality glass slides with uniform cell distribution, greatly improving the efficiency of pathologists. In addition, the E-PREP system is easy to operate and can save a lot of time and labor costs, which is of great practical significance for medical institutions with tight medical resources.
4、 Product Registration: Authoritative Certification, Quality Assurance
The E-PREP liquid based cell preparation system and its related products have obtained registration certification from China NMPA. Among them, the registration certificate number of the E-Prep film maker is Guoxie Bei 20190281, and the registration certificate numbers of the liquid based cell preservation solution (gynecological and non gynecological) are Guoxie Bei 20150533 and Guoxie Bei 20150181, respectively. These registration certificates are not only proof of the legal listing of products, but also an important guarantee for their quality and safety. Medical institutions and pathologists can use the E-PREP liquid based cell preparation system with confidence, without worrying about product quality and safety issues.
5、 Conclusion: Embarking on a new era of cellular pathology diagnosis
The E-PREP liquid based cell slide system of Paishi Medical Technology has brought new hope and opportunities to the field of pathological diagnosis with its advanced technology, simple and convenient operation process, excellent clinical performance, and authoritative registration certification. It can not only improve the accuracy and efficiency of diagnosis, but also save a lot of time and labor costs for medical institutions. In today's constantly advancing medical technology, the E-PREP liquid based cell slide system is undoubtedly a shining pearl in the field of pathological diagnosis. It will usher in a new era of pathological diagnosis and make greater contributions to human health.
Support provided to customers:
✓ Provide existing customers with cost-effective alternative solutions to alleviate the impact of price pressure in centralized procurement
✓ Enhance customer bargaining power through the combination of "American+Korean" dual product lines
✓ Share our company's installation service experience in 12 tertiary hospitals in East China
The first batch of orders will be supported by a 6-month payment term and a joint academic promotion fund
