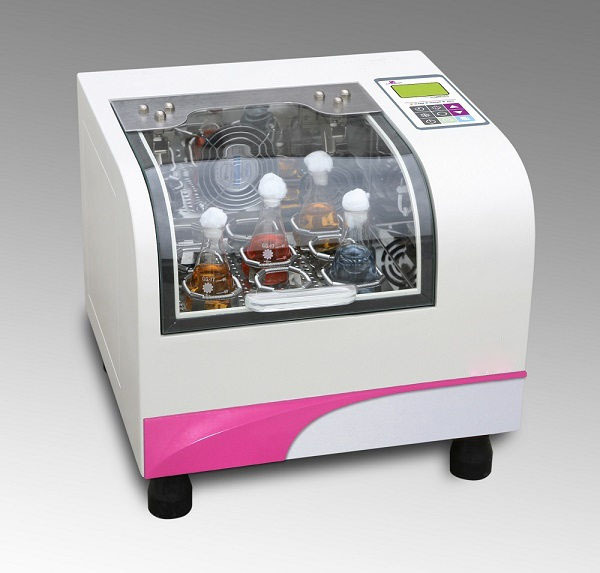

Economic Orbital Shaking Incubator, Heating Only, 30-600rpm

1.Smooth and easy to clean design with tempered observation glass window. 2,Inner chamber and tray from electro polished stainless steel. 3.Special low noise induction motor system enables high rotation speed up to 600rpm. 4.Patented driver system allows stroke continuous adjustment from 1 to 50 mm. 5.The combination of high speed and small diameter make it suitable for many applications involving microtitre plates. 6.AC inductive motor, brushless and maintenance free.
  • Economic Orbital Shaking Incubator, Heating Only, 30-600rpm

SPECIFICATION

Descriptions:
The benchtop orbital shaking incubators provided by BT offer  for small to medium capacity  conditions of time, temperature and orbital agitation for the growth of biological organisms. These microprocessor controlled shakers have a number of advanced features that are really unique in bench top models, such as cooling capacity, stepless shaking diameter adjustment.

BT shaking incubators are lab workhorses and provide “set and forget” programmable operating conditions and precise temperature performance for a variety of molecular biology techniques. The inner chamber is clearly visible from all angles across the room. The audible and visual alarms will alert the operator for set point deviations.

 Features:

    • Smooth and easy to clean design with tempered observation glass window.
    • Inner chamber and tray from electro polished stainless steel.
    • Special low noise induction motor system enables high rotation speed up to 600rpm.
    • Patented driver system allows stroke continuous adjustment from 1 to 50 mm.
    • The combination of high speed and small diameter make it suitable for many applications involving microtitre plates.
    • AC inductive motor, brushless and maintenance free.
    • Microprocessor control with large LCD screen, showing set and actual parameters.
    • Password protection against unauthorized change of parameters.
    • Audible and visual alarms on over temperature and motor overheating.
    • Soft start and smooth acceleration.
    • Timer up to 500 hours and continue mode.
    • Predrilled standard tray included, without clamps.

Specifications:

Model

ZWY-103B

ZWY-103D

ZWY- 100H

ZWY- 100D

Volume (L)

34

34

63

63

Shaking Speed (rpm)

30-400

30-600

30-400

30-600

Stroke

Ø24,32,38,50

Ø1-50mm Stepless Adjustment

Shaking Mode

Orbital

Orbital

Orbital

Orbital

Tray (mm) (WxD)

280x220

280x220

340x370

340x370

Temperature Range

A+ 5 °C to  60°C

Temperature Accuracy

± 0.1°C.

Temperature Uniformity

≤ ± 1°C@37°C

Timer

1 minute to 500 hours

Flask Configurations

*Glass dimensions may reduce max. capacity

50 ml

9

9

18

18

100 ml

9

9

18

18

250 ml

5

5

10

10

500 ml

-

-

9

9

750 ml

-

-

5

5

1000 ml

-

-

4

4

Inner Dimensions (mm) (WxDxH)

360x340x280

445x450x315

Exterior Dimensions (mm) (WxDxH)

440x410x390

600x580x510

Packing Dimensions (mm) (WxDxH)

560x530x560

720x700x680

Net / Gross Weight (kg)

31/54

31/54

72/94

72/94

Power (W)

280

280

550

550

Electricity

220-240V 50/60 Hz

Approval

CE, ISO
