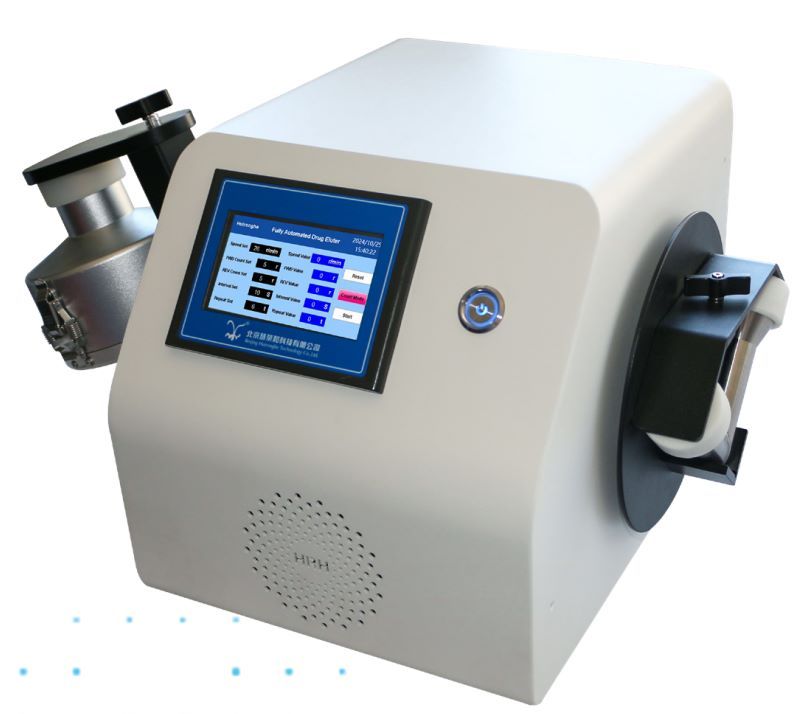

HRH-XY2060 fully automated drug eluter is dedicated to solvent rinsing procedures during APSD tests. The instrument realizes rotational drug elution on the induction port and pre-separator of multi-stage cascade impactor (NGI), dissolving drug active ingredients in solvents for subsequent chemical analysis.
It is compatible with NGI induction port and pre-separator with simple operation. The default setup fits one induction port plus one pre-separator; users can reconfigure it to hold two induction ports or two pre-separators at the same time. The rotary elution process provides consistent, controllable and highly repeatable dissolution results.
Featuring compact structure, precise control and excellent stability, the machine adopts intelligent control with customizable parameters and clear display. Optional side protective shrouds can be installed to prevent accidental collision and foreign object interference during operation.
| Item | Specification |
|---|---|
| Product Name | HRH-XY2060 Fully Automated Drug Eluter |
| Application | Solvent rinsing drugs in APSD tests; rotational elution for NGI induction port & pre-separator |
| Dimension | 574×335×282mm (default with both shrouds) |
| Weight | 14Kg (default with both shrouds) |
| Power Supply | 220V, 50Hz |
| Rated Power | 120W |
| Operating Modes | Cycle mode / Time mode, adjustable |
| Rotation Function | Customizable rotary process, reversible rotation direction |
| Running Speed | 20–60 cycles/min |
| Key Features | Compatible with NGI; configurable fixtures; repeatable elution; optional protective shrouds; intelligent parameter setting |
