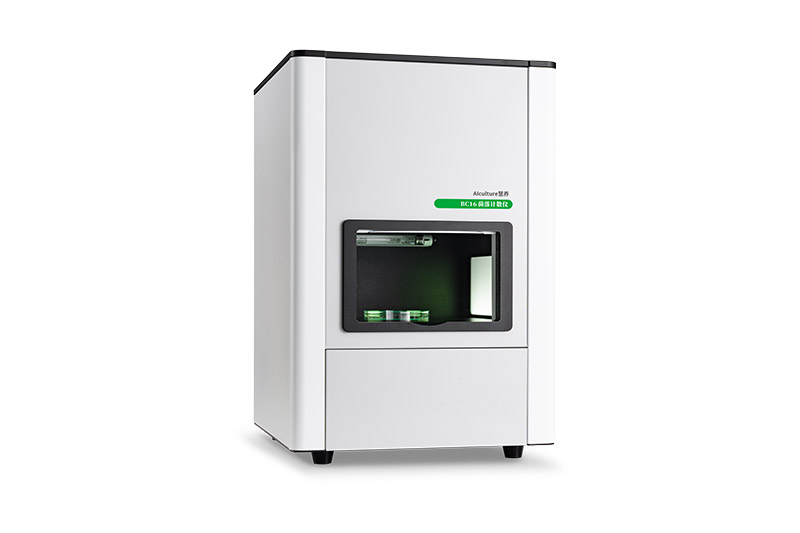

Fully automatic colony counterThe BT-BC16 fully automatic colony counter is an ultra clear colony counter and bacteriostatic zone analyzer for high-definition analysis of colonies and bacteriostatic zones. It can detect samples in various media such as flat plates, grid filter membranes/3M test plates, and 6-well plates.
Product features:One click output: The human-machine interface is easy to learn and use, allowing for one click output of results and easy traceability;
Traceability: PDF or photo re examination results before and after counting the culture dish
Free switching: Integrating three lighting modes to meet the requirements of different colony counting scenarios;
Image high-definition: Adopting Panasonic CMOS high-definition industrial camera to ensure high-definition and accuracy of captured images;

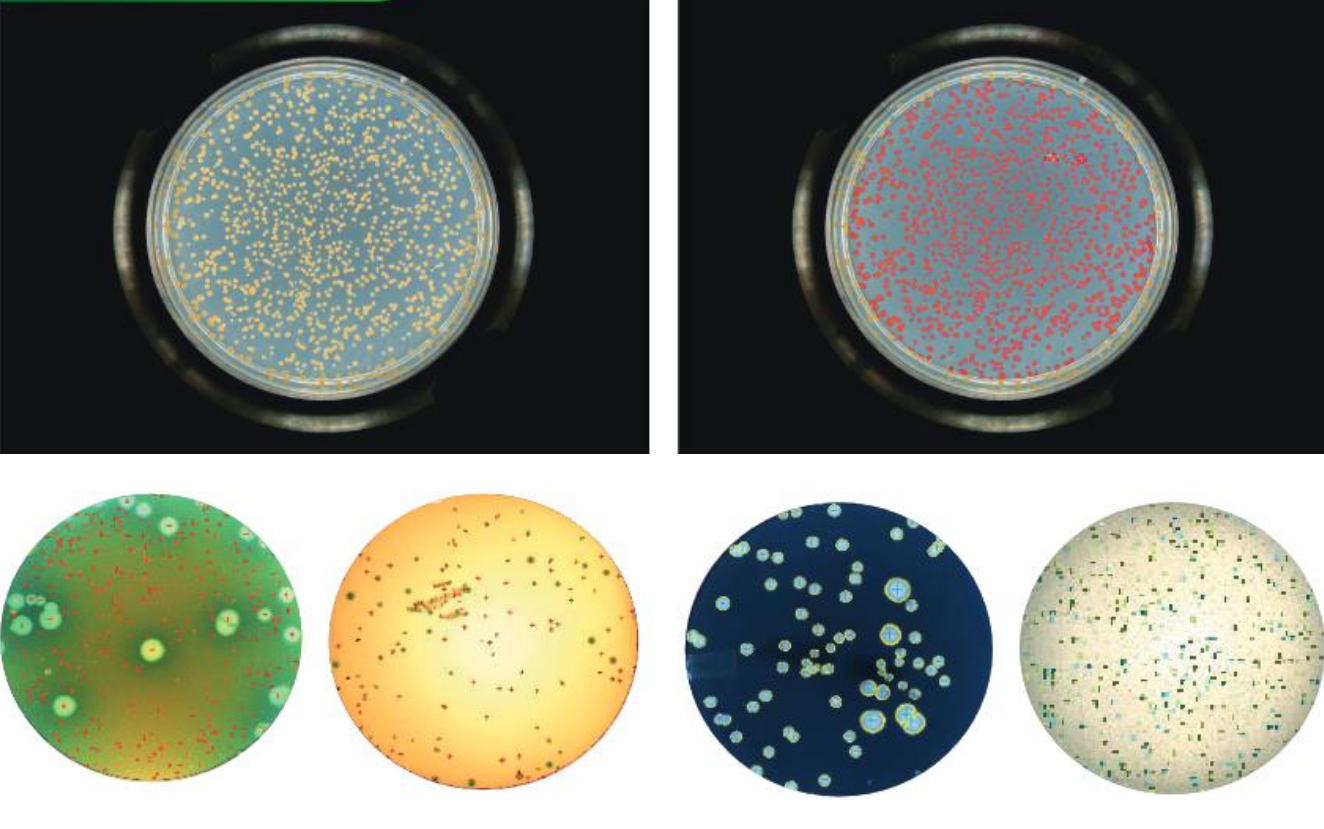

Diversity: The intelligent colony software has rich image algorithms that can adapt to the diversity of microbial flat colonies;
Repeatability: Antibacterial circles and antibiotic titer software can accurately detect the boundaries of transparent circles, ensuring the accuracy and repeatability of experimental data.
Application field:Microbial colony analysis and scientific research in food safety, biopharmaceutical, inspection and quarantine, disease control, quality supervision, environmental monitoring, and other testing institutions, as well as universities and research institutes.
Product parameters:
Instrument model
|
BT-BC16
|
BT-BC12
|
Instrument name
|
Fully automatic colony counter
cklight lighting
|
major function
|
Colony count, bacteriostatic zone analysis Colony count
|
Colony count
|
Camera resolution
|
16 million pixels
|
12 million pixels
|
Analysis software
|
Colony analysis software+automatic inhibition zone measurement software+antibiotic potency measurement software
|
Colony analysis software
|
Detectable minimum colony
|
0.01mm
|
Suitable plate specifications
|
Diameter 55-90mm
|
Plate type
|
Pouring, coating, membrane filtration, 3M paper
|
lighting system
|
Mist diffuse reflection lighting, suspended dark field lighting, color (5-color) transparent ba
|
biological safety
|
UV sterilization lamp
|
hardware configuration
|
Imaging host+computer
|
Working power supply
|
A.C220V,50Hz
|
Imaging host size (long * width * height)
|
33.5cm*34.2cm*49.4cm
|
Imaging host weight
|
19KG
|
