Product IntroductionThis product adopts hot pressing technology, with a tight sealing effect and no liquid leakage, effectively avoiding sample loss and spatial cross contamination. It can be applied to conventional PCR reaction plates, 96 well deep well plates (2.2mL), and 96 well deep well plates (1.6mL) for hot sealing. The instrument is easy to operate and can achieve fully automatic heat sealing of transparent and aluminum film rolls.
Product features1. Adaptable film types: transparent heat sealing film, aluminum film;

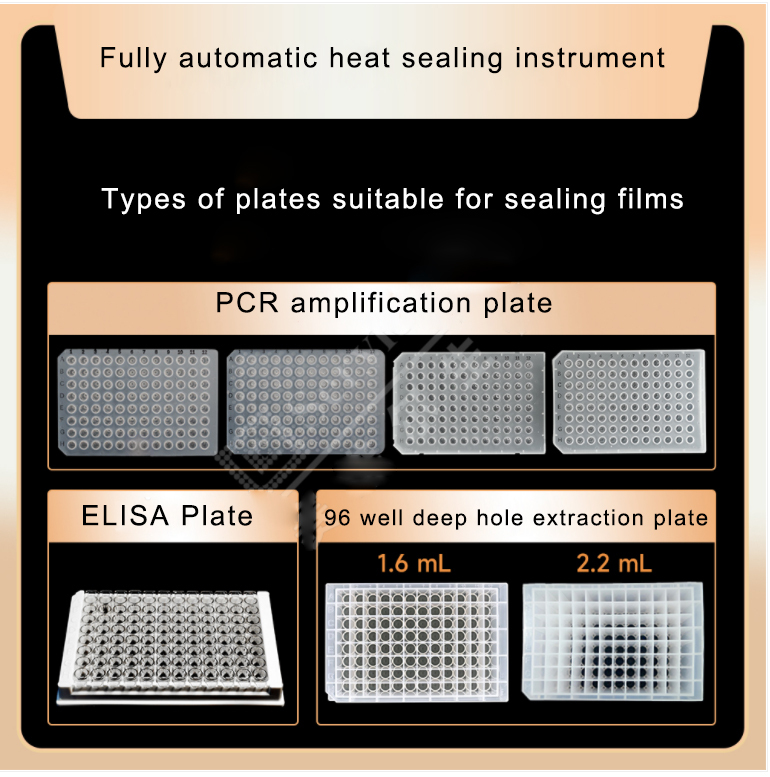

2. Types of compatible consumables: PCR reaction plate, enzyme-linked immunosorbent assay plate, 96 well deep well plate (1.6 and 2.2mL);
3. Touch screen display, flexible and adjustable parameters;
4. Adapters are easy to replace and customizable;

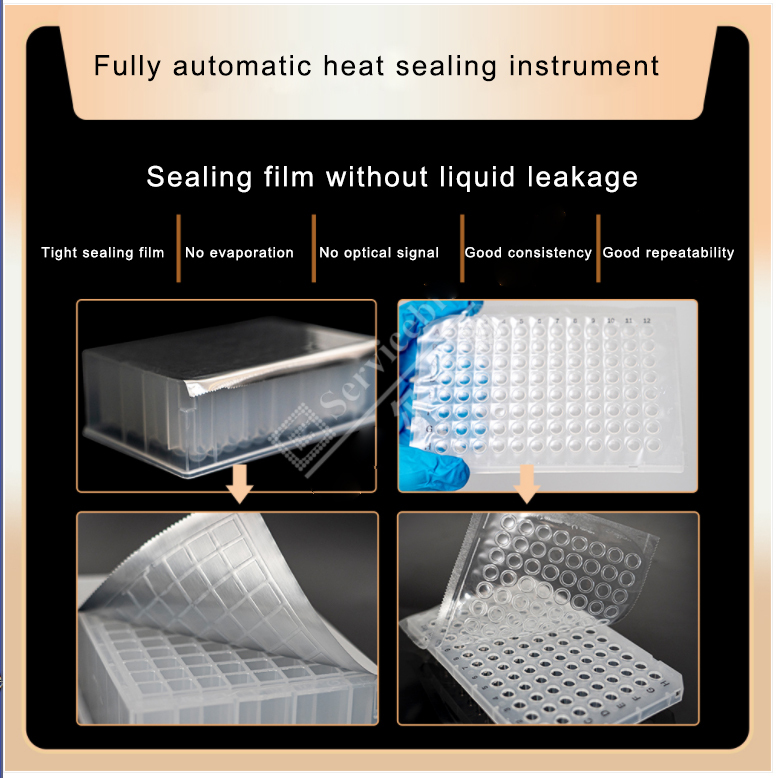

5. Tight sealing, no evaporation, no interference with light signal, good consistency, and good repeatability.

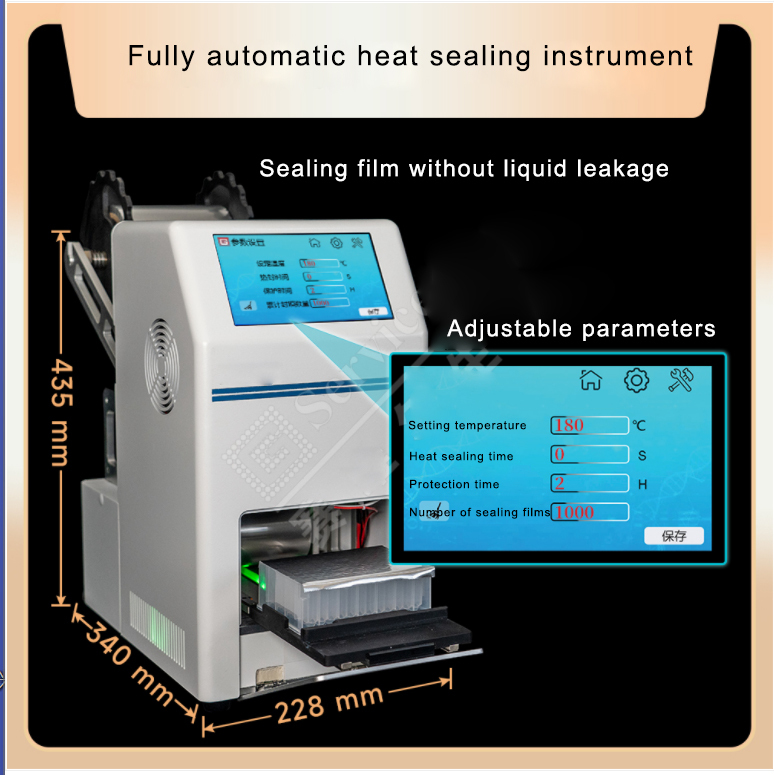

Technical parameter1. External dimensions (length * width * height): 340mm * 228mm * 435mm
2. Sealing plate types: conventional PCR reaction plate, 96 well deep well plate (2.2mL) and 96 well deep well plate (1.6mL)
3. Product power: 450W
4. Adapter type (optional): Conventional PCR reaction plate adapter, 96 well deep well plate adapter (1.6mL)
5. Net weight of the product: 15Kg
Operation steps(1) Plug in the power cord, turn on the power switch, the screen will light up, and the instrument will perform self check;
(2) After passing the self check, the screen displays the main interface, which is the heat sealing operation interface;
(3) Install the roll film and set the appropriate amount of film entry.
(4) Click the setting icon in the heat sealing interface to enter the heat sealing temperature parameter setting interface, where you can set the corresponding temperature and time parameters according to the sealing requirements.
(5) After setting the parameters, click the return icon to return to the heat sealing operation interface
(6) Click the heating icon on the heat sealing operation interface and wait for the heating module to heat up;
(7) Place corresponding adapters and plates that require heat sealing on the loading platform;
(8) After the actual temperature reaches the set temperature, the screen interface shows that the temperature has reached. Press the start icon, and the instrument will automatically enter the working chamber and seal the film;
(9) At the end of operation, the instrument automatically exits the warehouse;
(10) Take out the sealed PCR reaction plate/96 well deep well plate.
Note: If there is an error in the operation or sample, it is necessary to stop running. Take out the PCR reaction plate/96 well deep well plate, click the stop running button, and the instrument will stop running directly.
Notes:1. Please do not stack or place other items on the front door of the instrument to avoid door impact incidents;
2. Do not manually open the front compartment door of the instrument during operation to avoid pinch injuries;
3. Long term non use requires turning off the power switch and unplugging the power plug;
4. Do not touch the heating block with your limbs during operation or before it cools down to avoid high temperature burns;
5. If you find that the fully automatic heat sealing device is not working properly, please immediately unplug the power plug;
6. Do not pull the power cord, and pay attention to electrical safety when plugging in and out the power plug.
