SPECIFICATION
Product Description

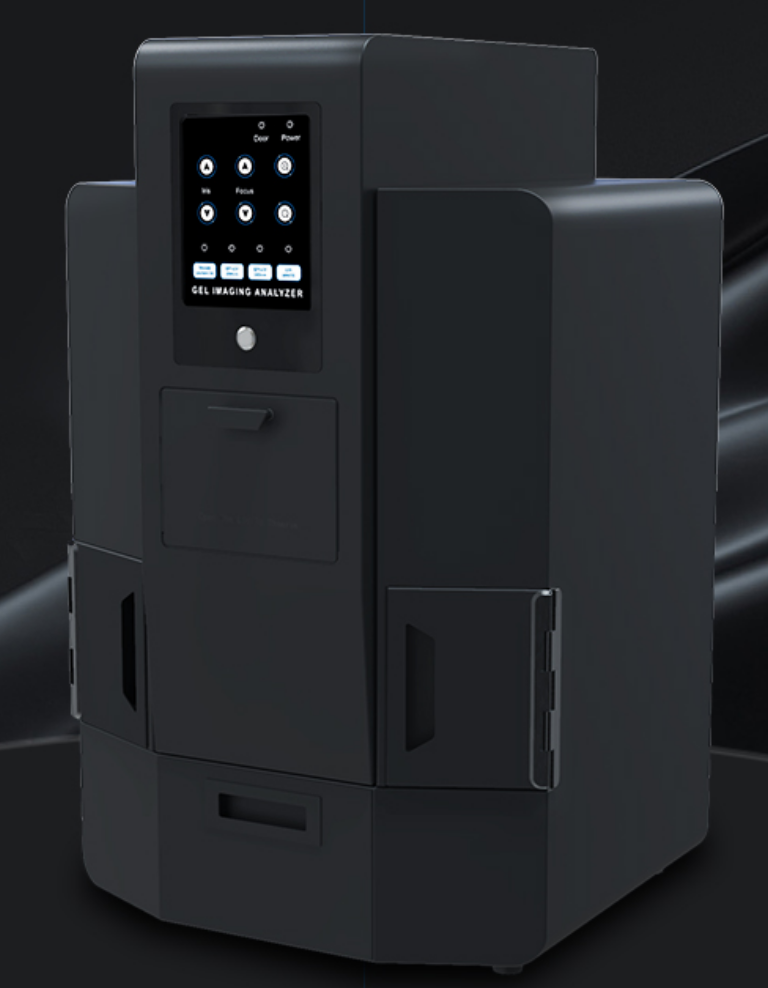

The gel imaging analyzer is a professional instrument for observing, photographing and analyzing gel bands after electrophoresis. By using the Sony Exmor CMOS camera, weak electrophoretic bands that are difficult to recognize by the naked eye can be captured. A dedicated filter group is used to effectively filter out background interference noise, while minimizing the pollution and UV leakage of ethidium bromide (EB). This enables simple screen enlargement, display, labeling or editing of electrophoretic results, organizing experimental reports, printing, etc., reducing the burden on laboratory personnel. It can replace ordinary UV analyzers or film observation boxes and is an essential professional instrument in laboratories.
Product features

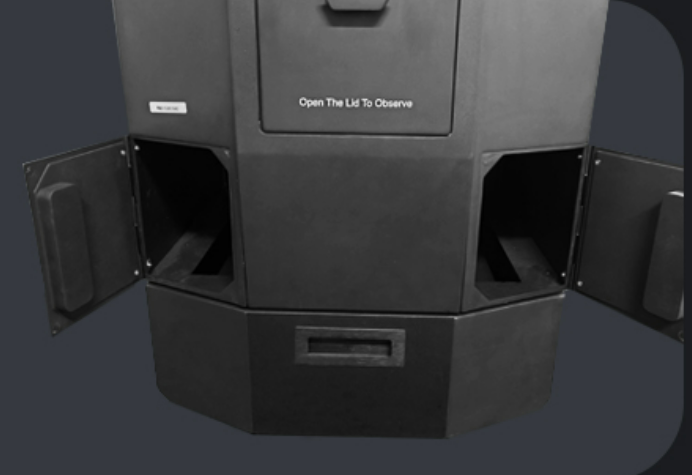

1. Overlapping and misaligned sealing design to prevent harm to the human body from ultraviolet light
2.3 wavelength options: dual intensity projection ultraviolet wavelength 302nm; Reflection wavelengths of 254nm and 365nm
3. Equipped with high-resolution digital CCD; 6x autozoom lens
4. Multi layer coating filter group, effectively filtering out background interference
5. It is equipped with special gel imaging analysis software, which has swimming lane identification, strip identification, colony counting and other functions
