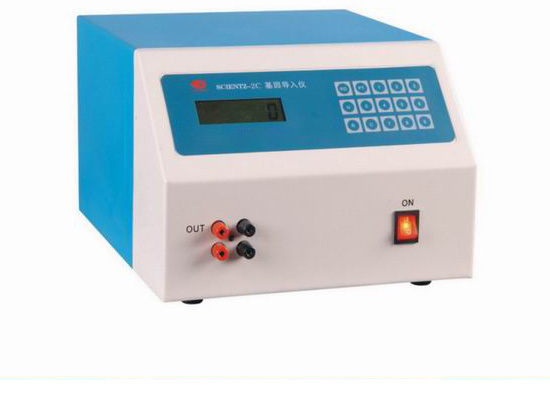

Gene Electroporator :
1. It is widely applicable to the electro-perforation of microorganism cells of animals
and plants.
2. It is also used for cell hybrid and mixing as well as gene electroporation.
3. It is of a complete set with man-computer dialog interface.
4. It is simple in operation and visual in apperance, and the detailed setting range of capacitance and resistance
makes the electro-perforation experiment of cells more selective under the related conditions.
Main Technical Parameters:
Model |
Scientz-2C |
|
High Output voltage |
400-2500V |
|
Low output voltage |
100-450V |
|
High voltage capacitor |
|
1,5,6,25,30,31UF |
Low voltage capacitor |
100UF,125UF,150UF…1675UF,one grades of 25UF |
|
Resistance |
|
50,100,150,1600;-∞total 30 grades |
Operationg system |
Microcomputer control |
|
Output waveform |
|
With RC time constant of the exponential decay of wave |
Dimension |
36.8*31.6*22.9(cm) |
|
Weight |
10.5Kg |
|
Packing size |
480*420*280mm |
