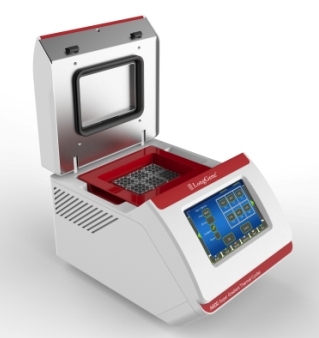

Gradient PCR Thermal Cycler

  1. Six independent temperature control systems without grouping Setting 6 temperature points arbitrarily is superior to traditional gradients.
  2. Better temperature uniformity, reducing the edge effect of the sample stage.

3.7 "TFT high-definition true color full touch LCD screen, curve graphic display program

  1. The interface is available in both Chinese and English, allowing for easy switching.
  2. Up to 15000 built-in programs, massive space, and easy storage.



  • Gradient PCR Thermal Cycler

SPECIFICATION

Module
Block 6*16wells*0.2 individual module,
six different annealing temperatures could be set for each zone
Tube Type 0.2ml PCR tubes, 8/12 Strips, 96 wells PCR plate
Peltier Technology New Generation Peltier Technology
Display 7” Color Touch Screen, graphically display the realtime protocols and running status
Language Full English
Communications Ports 2 USB and 1 LAN
Venting System Front air in and back air out,two cyclers can be placed side by side
Temperature
Block Temperature Range 0℃~105℃
Max. Heating Rate 5.5℃/s
Max. Cooling Rate 4.5℃/s
Temperature Uniformity ≤±0.15℃
Temperature Accuracy ≤±0.10℃
Display Resolution 0.10℃
Ramping Rate Adjustable Yes
Mode of Temperature Control Sim-tube & Block mode
Gradient
Gradient Accuracy ≤±0.15℃
Zone Uniformity ≤±0.20℃
Gradient Range 0℃~105℃
Temperature Differential Range less than 25℃ between two adjacent zones
Gradient Capability 6-zone temperature can be set independently. better than traditional gradient function
Heat Lid
Height of Heat Lid Steplessly Adjustable Lid, accommodates all kinds of PCR tubes,strips and plates
Lid Feature Innovative "TOP-OPEN" technology, protection from over- pressure
Heat Lid Temperature Range 30℃~112℃
Auto Shut-Off Yes
Software
Max. No. of programs Max. 15,000 programs onboard, unlimited storage of protocols with USB flash drive
Max. Step 30 Steps, multiple nesting cycle available
Max. Cycle 100 Typical cycles, max. 60,000 nesting cycles
Time Increment/Decrement 1-120 sec, available for Long PCR & Touchdown PCR
Temperature Increment/Decrement 0.1-10.0℃, available for touchdown PCR
Auto Pause / Auto Restart Yes
Multi-user log in With password-based authentication prevents from view, copy and alteration of protocols
Tm calculator Automatically calculate the melting and annealing temperature with two primer sequences
Hold at 4℃ Yes, an Infinite incubation time at low temperature for overnight working
Program wizard Yes, create PCR protocols with only a few clicks
Running Report Yes, Provide precise information for the whole experiment
PC Connection Yes,PC remote control to manage multl units across the newwork
Other Features
Power Global switch power supply: 85V ~ 265V, 50-60Hz Max. 600W
Dimension(L×W×H) 362×256×255mm
Net Weight 7.3kgs
