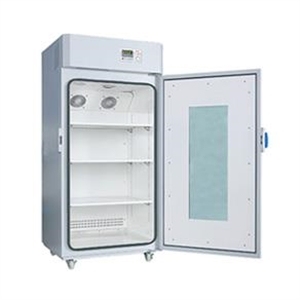

High quality biochemical incubators

No.CIB020
1. Through system optimization, the focus is on the long-term and reliable operation of the equipment under 25 ℃ environmental conditions and the most commonly used working temperature conditions such as -5 ℃,+4 ℃, and+37 ℃, especially suitable for precision constant temperature cultivation between 4 ℃ and+37 ℃ and low-temperature storage below -5 ℃;
  • High quality biochemical incubators

SPECIFICATION


                                          High quality biochemical incubators

1. Through system optimization, the focus is on the long-term and reliable operation of the equipment under 25 ℃ environmental conditions and the most commonly used working temperature conditions such as -5 ℃,+4 ℃, and+37 ℃, especially suitable for precision constant temperature cultivation between 4 ℃ and+37 ℃ and low-temperature storage below -5 ℃;
2. The national patented stepper motor control hot gas bypass refrigeration volume control technology and dynamic precision constant temperature and humidity control system ensure precise control of temperature and humidity throughout the entire range, significantly improving the energy efficiency of the refrigeration system. The optimal temperature fluctuation is ± 0.1 ℃, and the temperature fluctuation is ± 2.0% RH;
3. Low noise, high-temperature axial flow fan and unique air duct design ensure uniform distribution of wind and temperature and humidity inside the studio, eliminate local temperature changes, and will not blow down plant seedlings or scatter seeds, insects, small animals and other fine test items;
4. Adopting well-known brand compressors and R134a environmentally friendly refrigerant for cooling and dehumidification, with reliable performance, safety, and efficiency;
5. The IB and ID series adopt a touch type high brightness multifunctional operation display panel, which clearly displays the temperature of the box and the working status of other instruments, making it easy to operate;
6. The freely set power on automatic start mode and standby mode additionally ensure the safe operation of the incubator and avoid power outage interference;
7. Bright white sprayed stainless steel inner liner and movable layer frame, never worrying about rust, convenient for cleaning, and can be adjusted for storage space at will;
8. Meet the power and frequency requirements for markets in Europe, America, North America, South America, and Japan.
9. Optional devices and accessories: RS232/RS485 communication interface, test hole, power socket inside the box, top spotlight, tempered glass door, LCD screen, printer, USB interface, etc;
10. Typical applications: Microbial and tissue cell culture in fields such as healthcare, life sciences, agricultural research, environmental protection, food and daily necessities, seed germination and seedling testing, insect and small animal feeding, and safety and reliability testing in other electronic and electrical fields.
2、 Technical parameters:
Effective volume L
two hundred and fifty
Temperature range @ 20 ℃
+4~+60
ACC temperature range @ 20 ℃
+4~+40
Temperature fluctuation ± ℃
0.1~0.2
Temperature uniformity ℃
two
Heating power W
four hundred and fifty
Cooling capacity @ 20 ℃
two hundred and fifty
Door opening recovery time min
twenty-five
Inner liner size mm
550W × 450D × 1015H
Boundary dimension mm
705W × 620D × 1490H
Sample shelf (standard/maximum)
3/7
Observation window
Safety and auxiliary devices
Digital temperature correction, sensor open circuit and short circuit alarm, high temperature protection and low temperature alarm, pump motor stall protection, anti dry burning, power outage recovery
source
220-230V, 50/60Hz
