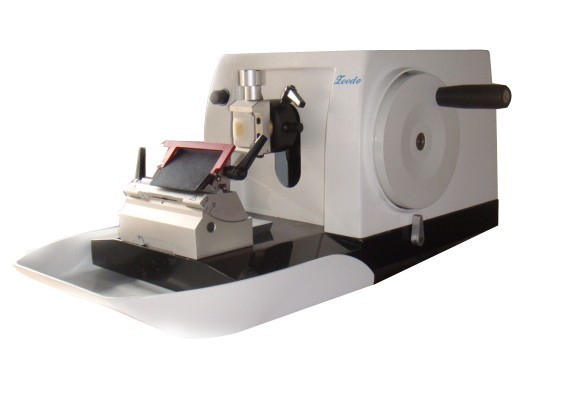

High quality Laboratory Rotary Microtome
Features:
■ It have clipper –built case , the user can put blade , wax block ,or other consumable one the top of case . it is easy .■ it donot need to lubricate and maintain the microtome frequently .
■ The handwheel in the right can be locked in any position , and the handle can be locked in highest position , it is double safe for changing blade or tissue block .
■ The specimen Orienting system: axes X and Y 8°, axis 180°.
■ It adopt the special blade holder , it is more safe and convenient to use the disposable blade directly . it also can to longer the user life of disposable blade
Technical Data:
|
Model |
KD2205 |
|
Range of section thickness setting |
0 - 60 μm. |
|
Range of trimming setting: |
0 - 60 μm. |
|
Specimen horizonal feeding |
28mm |
|
Maximum stroke length |
70mm |
|
Maximum size of slicing |
55*50mm |
|
Precision error |
±10% |
|
Demension |
300 x 570 x270 mm , |
|
Net Weight |
23.3kg |
Accessories:
1 Dispsoable Blade Holder
1 Standard Specimen Clamp
1 Universal Cassette Clamp
Package Info:
Each instrument packed Wooden Case
Ourter Case Dimensions: 620*525*455 mm,
Gross Weight: 45 kg
