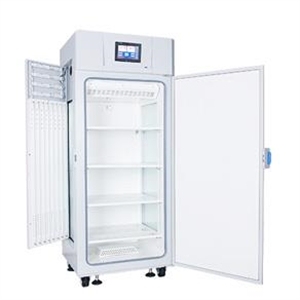

High Quality Plant Illumination Incubator for Plant Growth
1.Motor controlled hot gas bypass cooling capacity control technology and dynamic precision constant temperature and humidity control system,
2.it can freely control temperature and humidity conditions;
3. Program control of temperature, humidity, and radiation intensity for arbitrary programming, with operating conditions and test data stored in flash memory as needed;
4. Built in ultrasonic humidification device, multiple sets of transducers work together, with a humidification capacity of over 1Kg/Hr;
5. A 7-inch high-resolution touch screen with true color multifunctional operation display panel and programmable temperature and humidity control functions, providing various display methods such as graphics, curves, Chinese and English, making it easy to operate and clearly displaying box temperature, humidity, program operation data, alarm history, and other instrument working states;
6. Low noise, high temperature axial flow fan and unique air duct design ensure uniform distribution of wind and temperature and humidity inside the studio, eliminate local temperature changes, and do not blow down plant seedlings or scatter seeds, insects, small animals and other fine test items. Provide vertical or horizontal ventilation methods, suitable for plant and Arabidopsis growth, seed germination, tissue cell culture, and general temperature, humidity, and lighting conditions simulation purposes;
7. A fully enclosed and multi-level adjustable vertical or horizontal irradiation system ensures that the irradiation intensity meets the experimental requirements, while avoiding the influence of natural light from the outside on the experiment. The unique light box design has good heat dissipation, minimizing the impact of irradiation on the temperature of the box;
8. The patented circular arc angle inclined inner liner bottom plate is conducive to cleaning and the collection and discharge of condensed water;
9. The height of the partition can be adjusted arbitrarily, which is conducive to maximizing the utilization of space;
10. The product has passed the CE certification of the European Union (low-voltage directive and electromagnetic compatibility requirements), and has passed UL61010 compliance inspection and testing, meeting the safety requirements of the North American market;
11. Meet the power supply and frequency requirements for markets in Europe, America, North America, South America, and Japan;
12. Optional devices and accessories: water supply constant pressure valve, condensate drainage pump, purified water supply component, humidifier water supply device, spray partition and buckle, GE seed tray and its bracket, LUX sensor component, PAR sensor component, CO2 sensor component, AR lightbox component, PG lightbox component, Ethernet interface, USB interface;
13. Typical applications: growth of plants and Arabidopsis in fields such as life sciences, agricultural and forestry research, healthcare, and food, cultivation of microorganisms, tissues, and cells, seed germination and seedling experiments, as well as insect and small animal breeding;
2、 Technical parameters:
model
XT5418-GE480
XT5418-GE800
XT5418-GE Customization
Effective volume L
four hundred and eighty
eight hundred
customization
Temperature range @ 20 ℃ Turn off the light
+5~+45
+5~+45
+5~+45
Temperature range @ 20 ℃ Turn on the light
+10~+45
+10~+45
+10~+45
Temperature fluctuation ± ℃
0.1~0.2
0.1~0.2
0.1~0.2
Temperature uniformity ± ℃
1.5% to 2%
1.5% to 2%
1.5% to 2%
Humidity range% RH
40~90
40~90
40~90
Humidity fluctuation ±% RH
2~3
two
