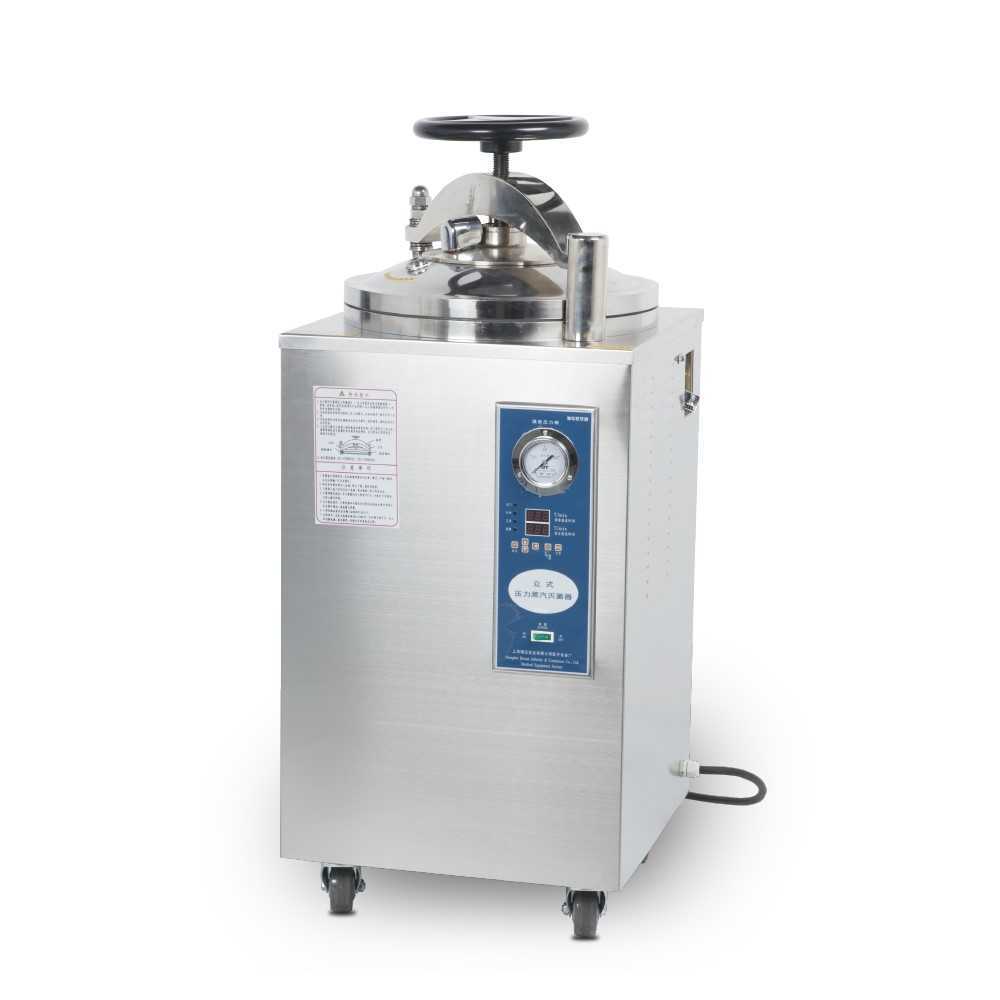

Vertical Autoclave

No.YXQ-30SII,YXQ-50SII,YXQ-75SII,YXQ-100SII
Made of SUS304 Handwheel type quick-open cover Microcomputer intelligent control Self expanding type seal ring Exhaust cold air automatically Self-control when lack of water Self-exhaust when over pressure Pressure safety interlock Over temperature protection Buzzer reminds when sterilization ends Equipped with G1/2A internal thread sample test hole
  • Vertical Autoclave

SPECIFICATION

Product Features
Made of SUS304
Handwheel type quick-open cover
Microcomputer intelligent control
Self expanding type seal ring
Exhaust cold air automatically
Self-control when lack of water
Self-exhaust when over pressure
Pressure safety interlock
Over temperature protection
Buzzer reminds when sterilization ends
Equipped with G1/2A internal thread sample test hole

Technical Parameters

Model YXQ-30SII YXQ-50SII YXQ-75SII YXQ-100SII
Volume [L] 29 50 75 100
Power [kW] 2.3 3.2 3.5 3.5
Power Supply [V, Hz] 220±10%, 50±2% 220±10%, 50±2% 220±10%, 50±2% 220±10%, 50±2%
Max. Working / Design Temp. [°C] 135 / 139 135 / 139 135 / 139 135 / 139
Max. Working / Design Pressure [MPa] 0.22 / 0.25 0.22 / 0.25 0.22 / 0.25 0.22 / 0.25
Timer Range [min] 4~120 4~120 4~120 4~120
Internal Dimensions [mm] Ø300×485 Ø400×630 Ø400×720 Ø400×830
Housing Dimensions W×D×H [mm] 445×445×900 485×485×1120 485×485×1190 485×485×1290
Basket Dimensions [mm] Ø280×340 Ø360×230 Ø360×270 Ø360×230
Number of Baskets [pc] 1 2 2 3
