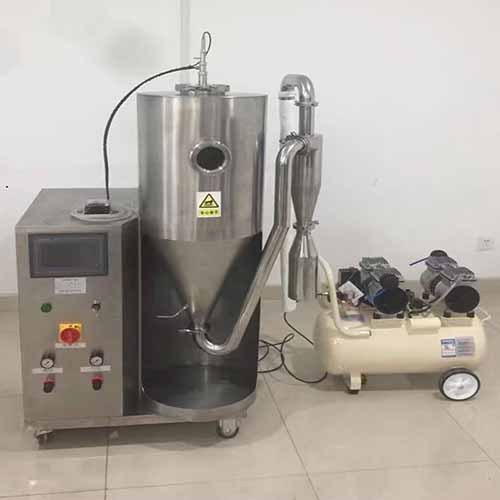

Lab Spray Dryer

No.BT-LW-030,BT-LW-050
Spray drying is through mechanical action, disperse the material into very fine mist-like particles,(To increase the evaporation area of water and accelerate the drying process),after contact with hot air, most of the moisture is removed in an instant, and the solid matter in the material is dried to a powder.
$12000.00
  • Lab Spray Dryer

SPECIFICATION

Description

Spray drying is through mechanical action, disperse the material into very fine mist-like particles,(To increase the evaporation area of water and accelerate the drying process),after contact with hot air, most of the moisture is removed in an instant, and the solid matter in the material is dried to a powder.

Feature

●The whole machine is made of 304 stainless steel, and the atomization structure of the two-fluid spray (precision manufactured by high-quality stainless steel material, compact design, no need for auxiliary equipment, convenient use, long time as new);

●Real-time regulation of PID thermostatic control technology (heating temperature, inlet air velocity, peristaltic pump feed rate can be adjusted at any time);

●LCD touch screen operation control, Chinese and English operation interface.

●The spray head is located in the middle of the drying chamber and can be dried in parallel or counter currently.

●The diameter of the dusting powder is normally distributed, the fluidity is very good, and the noise is very low, in line with the national laboratory noise standard.

●The latest improvement of the external air compressor, the noise is smaller, the whole machine is stable and vibration-free!

●The two-fluid atomizer has a built-in needle anti-blocking design;



Specification

Model

BT-LW-030

BT-LW-050

Inlet air temp. control

30 ℃-300℃

30 ℃-300℃

Outlet temperature

30 ℃-140℃

30 ℃-140℃

Temp. control accuracy

±1℃

±1℃

Evaporation water volume

2000mL/H ~ 3000ml/h

3000mL/H ~ 5000ml/h

Max. feed amount

up to 3000ml/h (adjustable)

up to 5000ml/h (adjustable)

Min. feed amount

50ml

100ml

Feeding mode

peristaltic pump adjustment

peristaltic pump adjustment

Electric heater power

5KW

6KW

Average drying time

1.0 to 1.5S

1.0 to 1.5S

Nozzle dia

0.7mm、1mm、1.5mm、2mm optional and can be customized according to customer requirements;

Drying chamber dia

500mm

800mm

Machine power

6KW AC220V single phase + ground

7.5KW AC380V three- phase + ground

Equipment weight

about 160KG

240Kg

Equipment dimensions

1450mm (H) × 750mm (L) × 950mm (W)

1850mm (H) × 1300mm (L) × 1300mm (W)
