SPECIFICATION

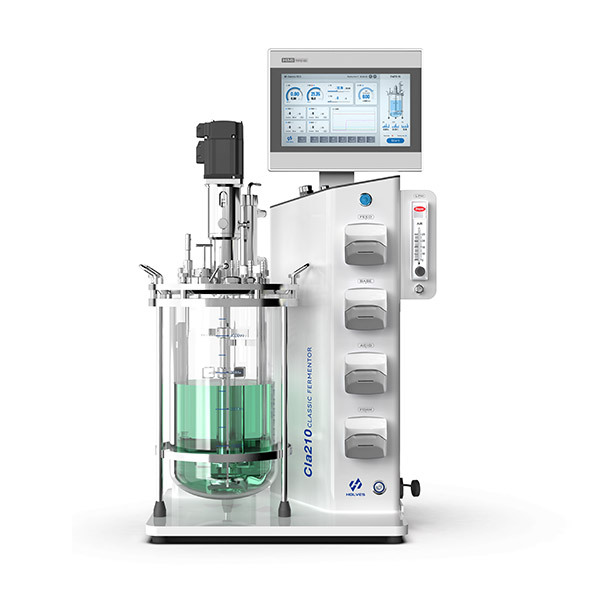

The laboratory fermentation tank is a classic series of equipment developed by BT, suitable for multi working conditions in the laboratory. High product integration, strong intelligence level, and easy operation make it an ideal tool for experimental teaching.
Core parameters:
Tank volume: 3L, 5L, 7L, 10L Ventilation system: imported glass rotameter
PH control: range: 0-14 pH accuracy: ± 0.02 Dissolved oxygen control: range: 0-200% accuracy: ± 1%
Temperature control:+5 ℃~65 ℃ ± 0.1 ℃ Mixing control: H-Mix ® Sealless mixing system
Material: high borosilicate glass, 316L stainless steel Sterilization method: out of position sterilization
Product advantages:
1. Compact size
Adopting an integrated structure of tank body and control host, the overall size is only 54cm * 21cm * 24cm, occupying small space, easy to install and move, various weak wires are short and easy to install, and can be quickly put into laboratory use.
2. Strong stability
The entire system adopts RS-485 bus control communication mode to improve system operation stability;
● Low voltage setting of the entire machine, achieving high-precision free control;
The entire series uses top domestic and foreign brand components, with excellent quality.
3. Fully functional
● Built in HF Control V2.2 control software, experimental data can be monitored, tracked, exported, and customized for multiple time periods in real-time and locally;
● External OPC XML DA via Ethernet data communication is available to enhance device information exchange capabilities;
● Support 2-8 connection and multi connection expansion;
Support for expanding system functions including scales, exhaust gas analyzers, online OD, etc. (customized according to needs)
4. Innovation patents
Holles' unique innovative technology, including H-Mix ® Mixing system, Feed Up ® Replenishment system, Smart-SC ® Multiple intelligent technologies such as intelligent sequential control, combined with the control system, comprehensively simplify your experimental operation process.
