SPECIFICATION
Multiple fermentation tanks that can simplify work

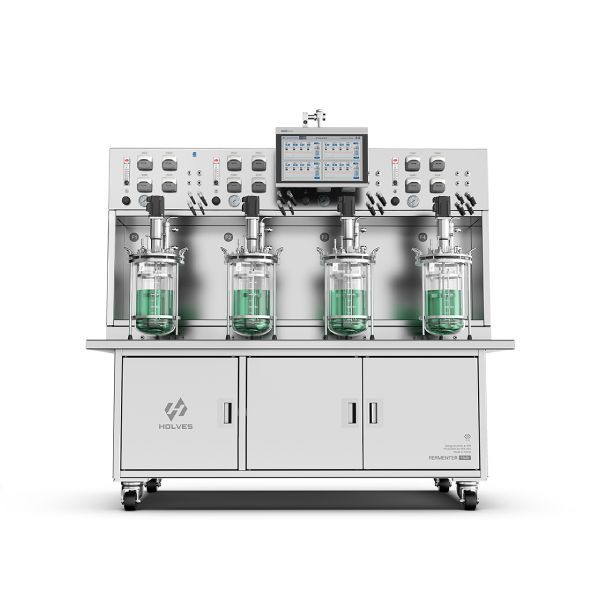

The Hub240 series integrated multi link fermentation tank is an integrated multi link integrated system equipment provided by BT for experimental users. The equipment scheme comes with an experimental operation platform, which is controlled by a 15 inch HMI screen to form an integrated chassis. The roller design is convenient for movement and can be placed in any area, effectively reducing initial costs and improving efficiency. This series of equipment can be converted from single tank to multiple units at will, suitable for different work scenarios.
Core parameters:
Tank volume: 3L, 5L, 7L, 13L, configured with any 4 groups
Ventilation system: imported glass rotor flowmeter
PH control: range: 0-14 pH accuracy: ± 0.02 Dissolved oxygen control: range: 0-100% accuracy: ± 1%
Temperature control:+5 ℃~65 ℃ ± 0.1 ℃ Mixing control: H-Mix ® Sealless mixing system
Material: high borosilicate glass, 316L stainless steel Sterilization method: out of position sterilization
Product advantages:
1. Intelligent and efficient
The device is equipped with a Siemens SIMATIC-1200 high-end processor, Hub integrated design, embedded cold water module, air circuit, and fast plug design, making it convenient for users to control with one click;
The entire system adopts RS-485 bus control communication mode, with low voltage for the entire machine, improving the stability of experimental operation and high-precision free control;
Integrated intelligent multi link design, breaking through traditional floor to floor cumbersome barriers and achieving minimalist craftsmanship;
360 ° intelligent HMI display terminal, which can freely adjust the angle and position;
Robust Hub M4 parallel control system for parallel and single tank obstacle free operation
2. Fully functional
● Built in HF Control V2.22 control software, experimental data can be monitored, tracked, exported, and customized for multiple time periods in real-time and locally;
● External OPC XML DA via Ethernet data communication is available to enhance device information exchange capabilities;
● Multi parameter curve display function, historical data recording and USB export;
Real time protection of experimental data, advanced permission restrictions on export and deletion, to prevent data leakage;
3. High scalability
Support user customization and expansion: functional modules such as weighing scales, exhaust gas analysis, ORP, biomass analysis system, etc. meet the needs of deep fermentation users and improve product adaptability.
4. Innovation patents
Holles' unique innovative technology, including H-Mix ® Mixing system, Feed Up ® Replenishment system, Smart-SC ® Multiple intelligent technologies such as intelligent sequential control, combined with the control system, comprehensively simplify your experimental operation process.
