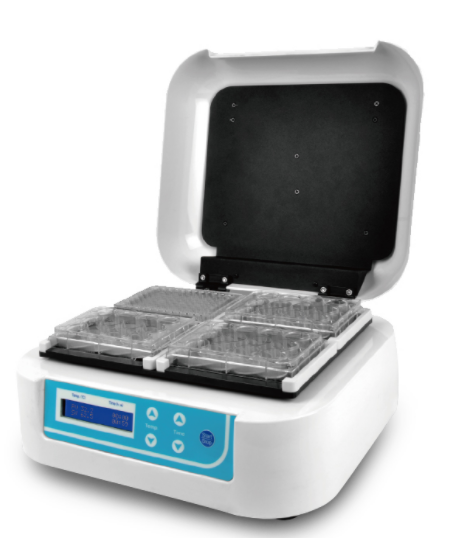

Micro-plate Incubator

No.BTK-MPI-005
1. LCD display, synchronous temperature display, set time decreasing display.
2. A human-machine friendly button operation interface, streamlined body, beautiful and elegant, convenient for cleaning
3. Microporous plates can be heated up and down to ensure that each hole in the plate is uniformly heated.
4. The microprocessor controls temperature and time, with good linearity and small fluctuations in temperature control.
5. Can accommodate 2/4 standard enzyme-linked immunosorbent assay plates and microplates, and emit an audible alarm signal after the program runs. It can be set to run continuously at irregular times.
$200.00
  • Micro-plate Incubator

SPECIFICATION

Product Overview

The Micro-plate Shaker Incubator is engineered by combining advanced micro processing technology with precision PID control. It is specifically designed for incubating and shaking solutions in enzyme-linked immunosorbent assay (ELISA) plates (96-well / 384-well) and cell culture plates (24-well, 48-well, 96-well, etc.) at precise, stable temperatures — with integrated oscillation for uniform mixing.

Whether you are running immunoassays, cell-based assays, or general laboratory incubations, this instrument delivers uniform heating, reliable oscillation, and user-friendly operation.


Key Features

1. LCD Display with Simultaneous Parameter Readout

The LCD screen simultaneously displays set and actual temperature, time, and oscillation speed parameters — giving you complete visibility of your incubation conditions at a glance.

2. Human-Machine Friendly Button Interface

A streamlined body with an intuitive button operation interface. The design is beautiful, elegant, and convenient for cleaning, fitting seamlessly into any laboratory environment.

3. Uniform Heating for Every Well

The instrument is capable of heating the microplate from both above and below, ensuring that each hole in the microplate is uniformly heated. The microprocessor controls temperature and time with excellent temperature control linearity, accurate oscillation speed, and minimal fluctuations.

4. Integrated Oscillation Function

Built-in oscillation ensures thorough mixing of samples during incubation. The oscillation speed is precisely controlled and displayed on the LCD, allowing reproducible mixing conditions for ELISA, cell culture, and other microplate-based applications.

5. Wide Temperature Range

The instrument supports a broad temperature range suitable for a variety of incubation protocols — from ambient to elevated temperatures. Precise PID control maintains stable conditions throughout the run.

6. Wide Plate Compatibility

Accommodates 2 or 4 standard enzyme-linked immunosorbent assay plates and microplates. An audible alarm signal sounds after the program runs to completion, alerting you when incubation is finished.

7. DC Brushless Motor Drive

Equipped with a DC brushless motor for long service life and maintenance-free operation. The instrument can be set to run continuously at irregular times, providing flexibility for extended incubation protocols.


Technical Specifications

Parameter Specification
Product Name Micro-plate Shaker Incubator
Control Method Micro processing + PID control
Display LCD, simultaneous temperature/time/speed
Temperature Range Ambient +5°C to 80°C (typical; customizable)
Temperature Control Good linearity, minimal fluctuation
Oscillation Integrated, adjustable speed
Plate Capacity 2 or 4 standard ELISA plates / microplates
Compatible Plates 96-well, 384-well ELISA plates; 24-well, 48-well, 96-well cell culture plates
Heating Uniform heating from above and below
Motor DC brushless motor, maintenance-free
Alarm Audible alarm after program completion
Operation Continuous or timed operation

Note: Temperature range and oscillation speed specifications can be customized based on your application requirements. Please contact us for details.


Applications

  • Enzyme-linked immunosorbent assay (ELISA)

  • Cell culture incubation

  • Immunoassay procedures

  • Clinical diagnostics

  • Pharmaceutical and biotechnology research

  • General laboratory incubation of microplate-based reactions

  • Sample mixing and homogenization


Why Choose Our Micro-plate Shaker Incubator?

Benefit How We Deliver
Precise Temperature Control PID control + micro processing technology
Uniform Heating Dual-direction heating for each well
Integrated Oscillation Adjustable speed for thorough mixing
Wide Temperature Range From ambient +5°C to 80°C
Easy Monitoring LCD shows set and actual parameters simultaneously
Flexible Capacity Accommodates 2 or 4 plates
Reliable Performance DC brushless motor, maintenance-free
User-Friendly Streamlined body, easy to clean, simple operation
Program Completion Alert Audible alarm after each run

Operating Principle

The Micro-plate Shaker Incubator combines micro processing technology with PID (Proportional-Integral-Derivative) control to maintain precise temperature and oscillation conditions. The microprocessor continuously monitors and adjusts temperature, time, and oscillation speed parameters, ensuring stable and reproducible incubation and shaking conditions for ELISA plates, cell culture plates, and other microplate formats.
