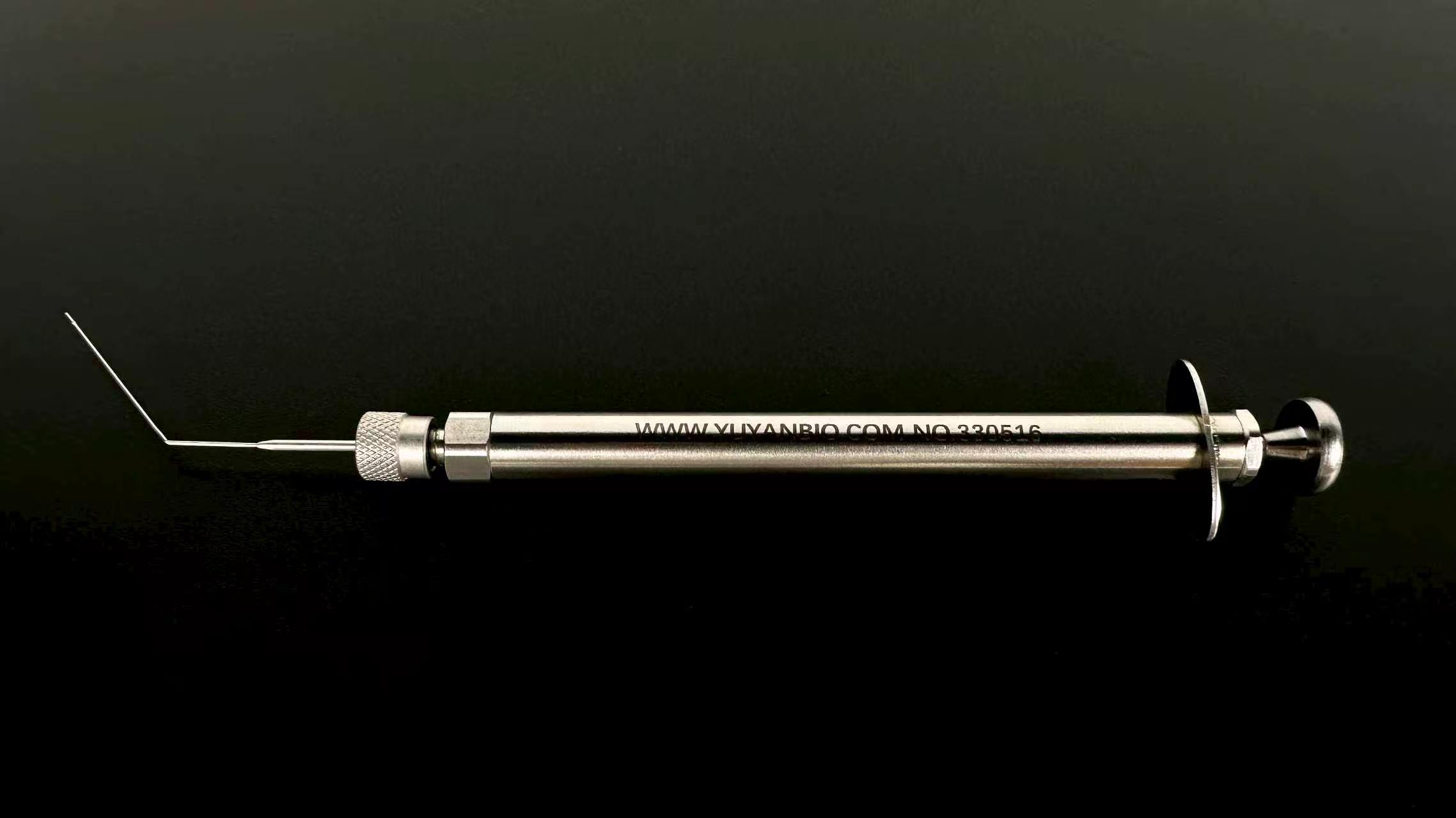

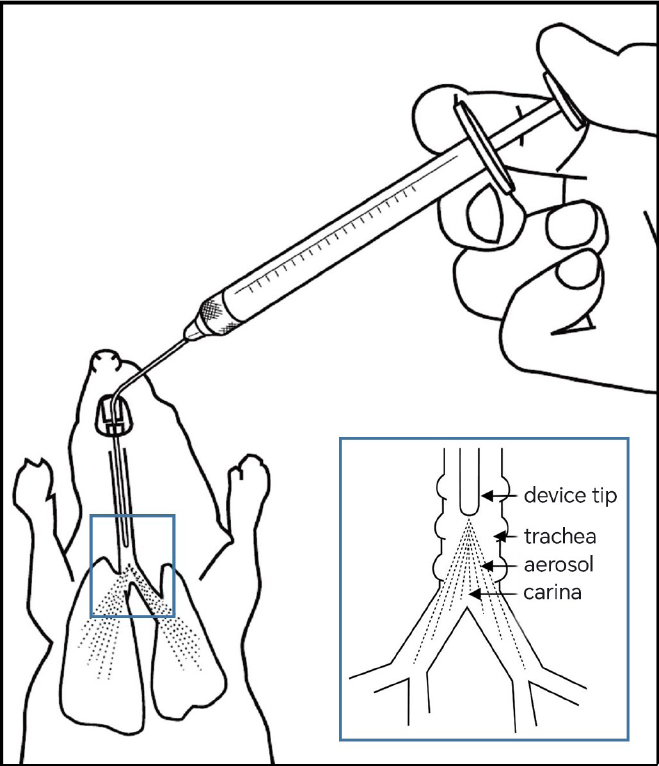

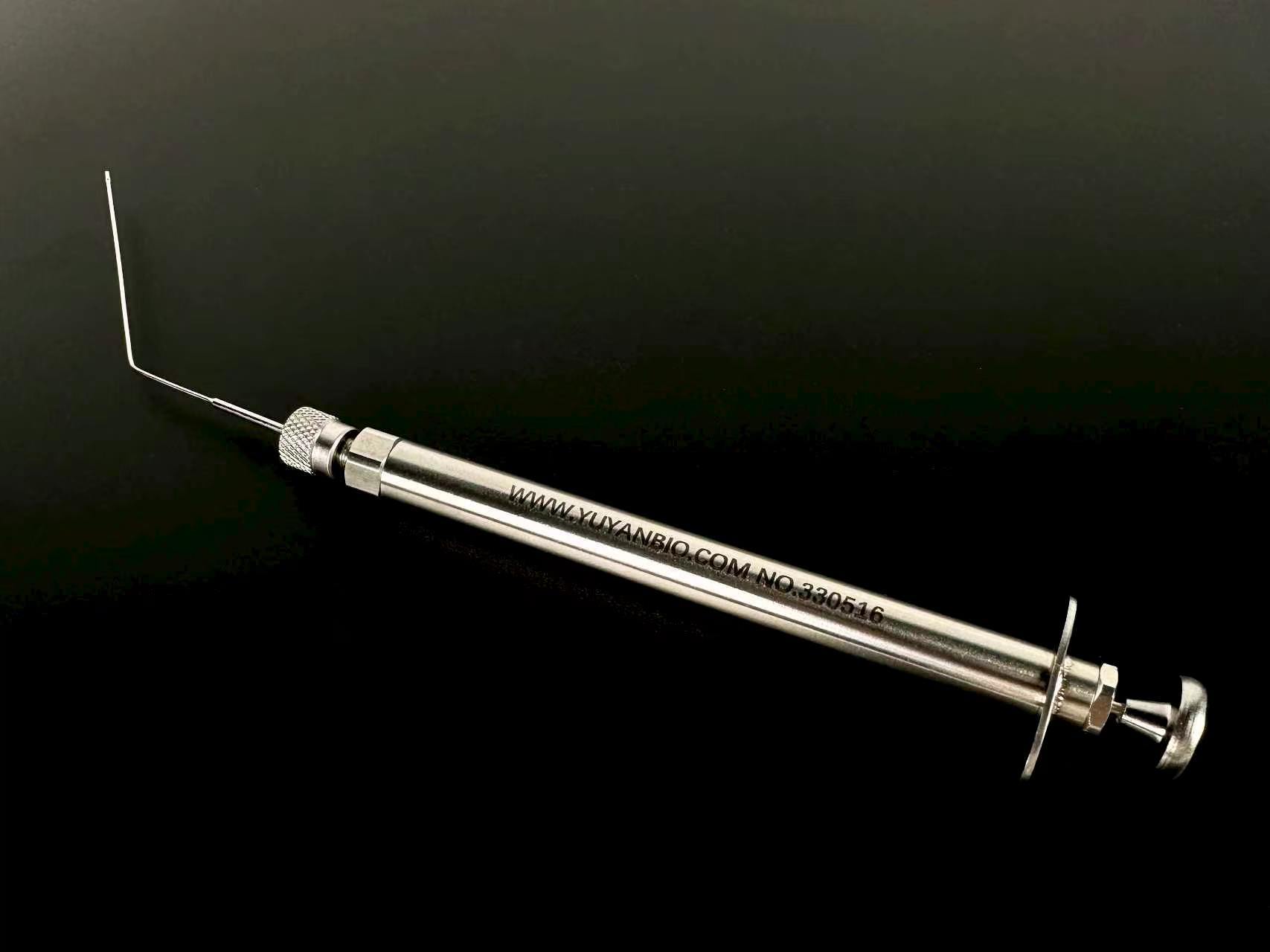

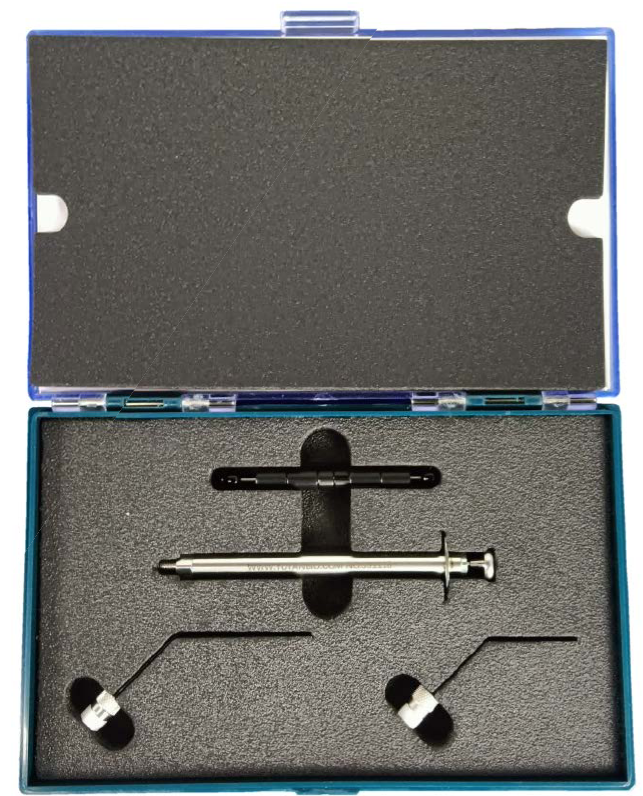

Principle of Operation

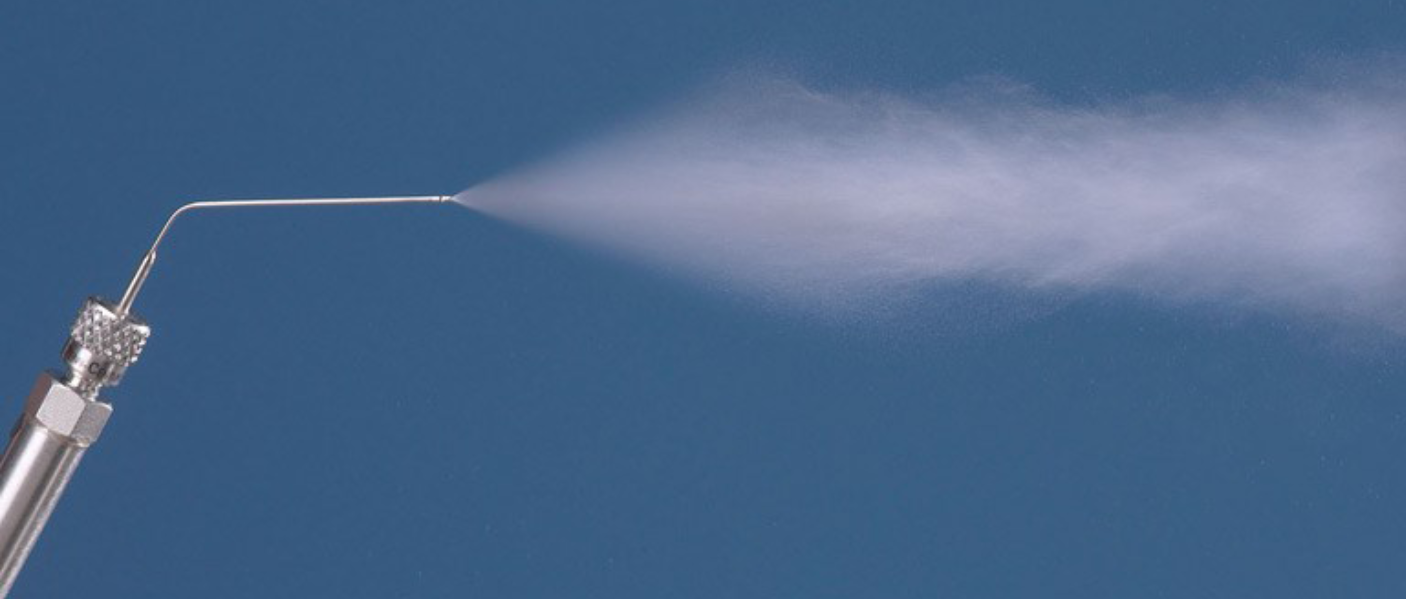

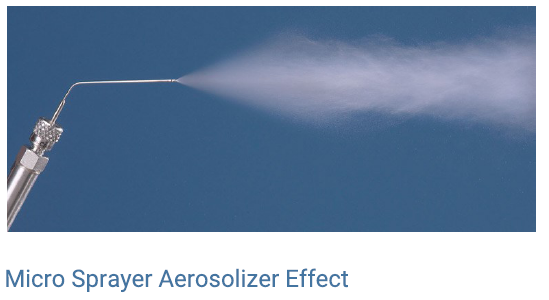

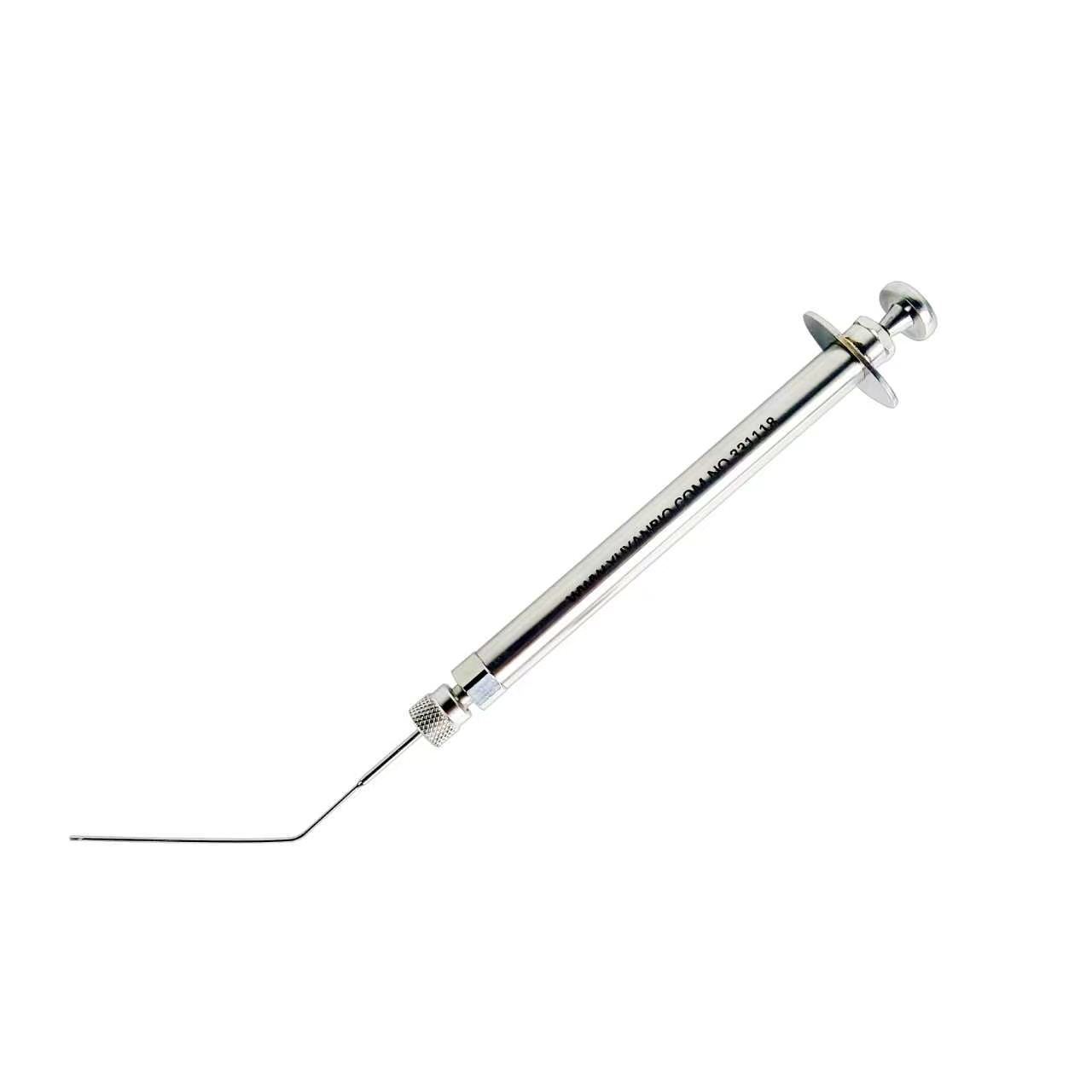

The high-pressure syringe can quantitatively transmit a small amount of liquid to the tiny components in the tip of the device. And generate an aerosol when liquids, solutions or suspensions are pushed through them with sufficient speed and force.
Application Field
Inhalation toxicology, aerobiology, biohazard testing, inhalation immunization, inhalation therapy, drug re-search, environmental assessment, hazard assessment and medical protection.
Technical Parameter

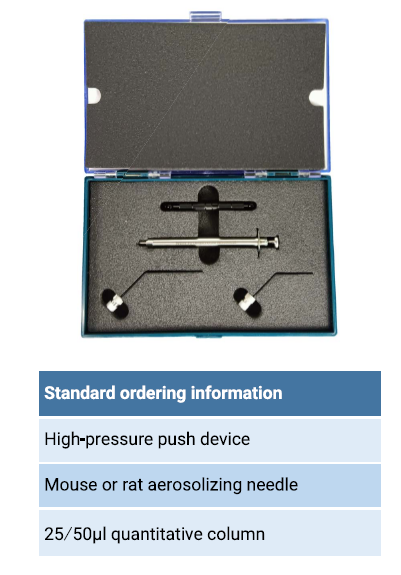

- It can be used for solution, small cell suspension (diameter < 15um), homogeneous suspension, low viscosity emulsion and other micro-administration, administration range of 25 ul-250 ul
- Drug atomization diameter: 10-30um
- The drug can directly reach the lungs
- Single atomization accuracy: 2ul
- Outer diameter of aerosolizing0.75mm(rat), 0.60mm (mouse)

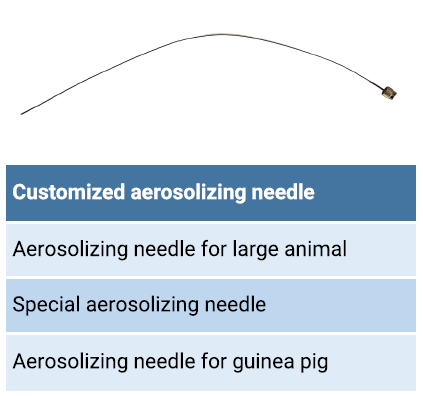

- Length from corner to needle: 45mm (rat), 27mm (mouse), aerosolizing needle can be customized.
- Length of needle tail to corner: 5/8 inch
- Needle angle: 120°

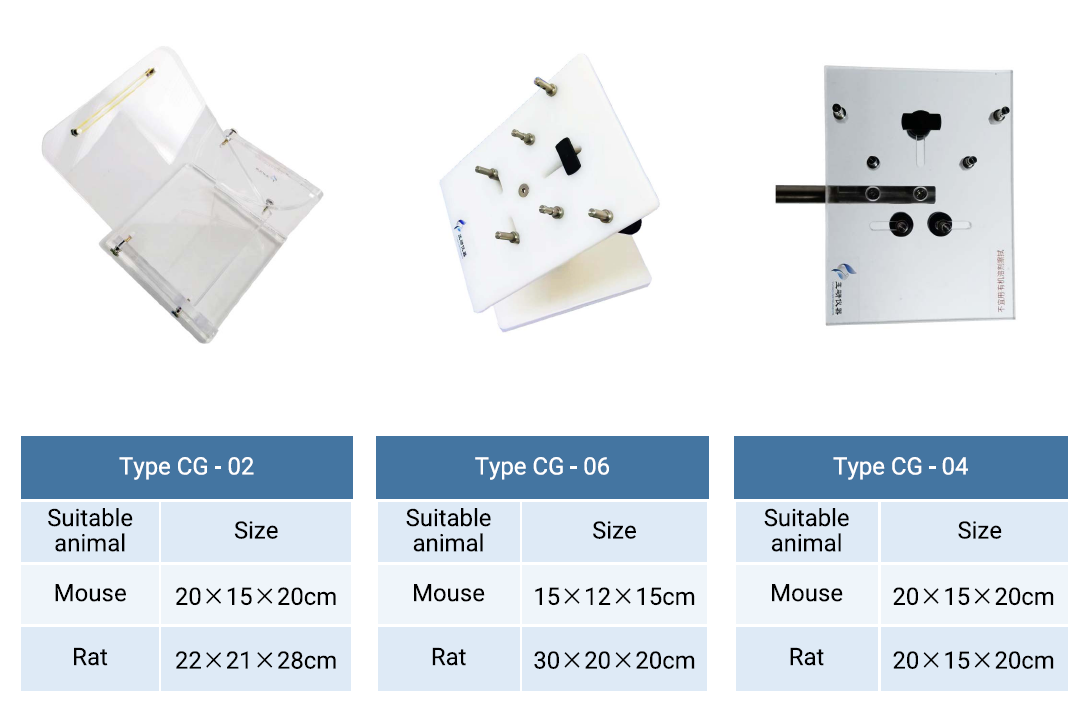

Rodent Operating Table
Rodent operation table supports mice, rats and other small animals to perform tracheal intubation, drug perfusion and other similar experimental operations in a stable and comfortable position. Different hole positions can be fixed according to needs, and a variety of operating angles can be adjusted to meet the needs of different experimental and animal types.
The instrument is designed for double-sided operation which makes the intratracheal aerosol ad-ministration smoother. Rodent operation table can be used in conjunction with our company’s other products and can also be customized according to your requirements.

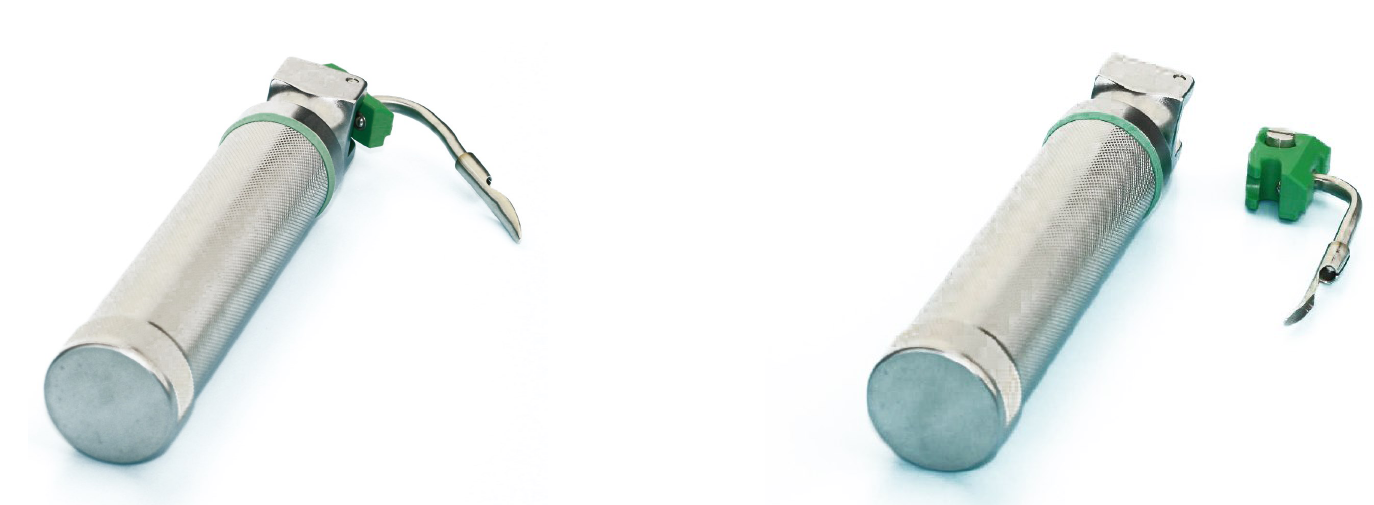

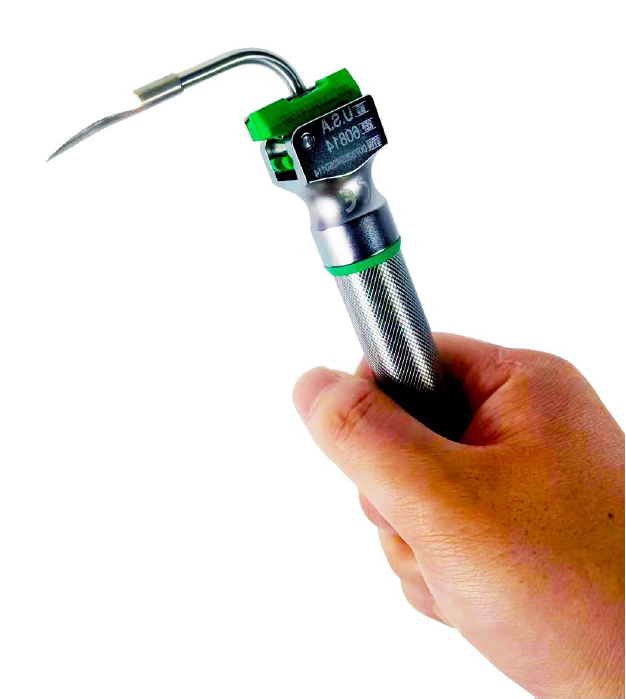

Rodent Laryngoscope
SR310 rodent laryngoscope, used to observe the larynx and other structures of laboratory animals for Pulmonary administration, oral tube intubation and other operations, suitable for mice, rats, guinea pigs, or customized according to your requirements.
The optical fiber LED lighting system provides clear and bright light, providing a better view for the operators who observe the larynx, epiglottis and other structures. The front end is stainless steel blade tip and can be removed or replaced at any time. The shape of the handle is ergonomic, making the operation more comfortable and convenient.
Specific
- The shell is made of metal material, durable and easy to clean
- The shape of the handle is ergonomic and comfortable to hold
- The special tongue depressor designed for the oral structure of rats and mice solves the problem that the mouth is too small to intubate
- Rat and mouse type are available
- The blades are made of stainless steel to minimize corrosion and ensure durability
- Two AA batteries are used for easy replacement
