Microbial limit test system

Name: Microbial limit test system
Brand: BEYONDBIO TECH
SKU: BTK-MTS-009
Price: 300.00 USD
Availability: InStock

No.BTK-MTS-009

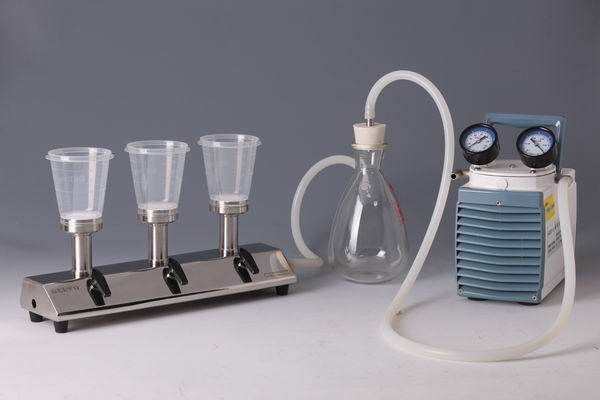

This microbial membrane filtration system captures microbes and particles on filter membranes for routine microbiological testing. It features independent control for each port and supports PP or stainless steel funnels. Compatible with 47mm/50mm membranes, the 6-place manifold allows fast filtration and can be sterilized by moist heat. It is widely used for microbial limit tests in pharmaceutical, food, water and cosmetic industries.

$300.00

Get the latest quote

SPECIFICATION

Overview

Microbial membrane filtration system is purpose-built to capture and analyse particles and microorganisms retained on membrane filter surfaces. It features user-friendly operation suitable for routine laboratory microbiological examinations. Stainless steel taps mounted on the base control vacuum switching. Customers can select either PP funnels or stainless steel funnels according to experimental requirements.

Features

Detachable filter head for simple sterilization of core components
Multi-head manifold with independent control for each filtration position
Large effective filtration area for high filtration speed
Compatible with 47mm and 50mm filter membranes
Filter head supports rapid flame sterilization
Dedicated membrane removal groove, convenient to retrieve filter membrane after filtration
Filtration manifold support can be sterilized via moist heat sterilization

Technical Parameters

PP Funnel Volume: 270ml
PP Funnel Scale: 50, 100, 150, 200, 250ml with annular scale lines
Membrane Diameter: 47mm and 50mm
Effective Filtration Area: 12.5 cm²
Dimension W × H: 105mm × 135mm
Funnel Material: PP / Stainless Steel
Manifold Support Material: Stainless Steel
Filter Head: Detachable, screw-mounted on holder, 6-place
Stainless Steel Funnel Models: SS100 (100ml), SS250 (300ml), SS500 (500ml)

Optional Accessories

PP funnel, stainless steel funnel (100ml, 300ml, 500ml), lid for 300ml SS funnel, SS funnel clamp, diaphragm vacuum pump, sterile filter membrane, flame sterilization tool, tweezers, tweezer stand, flask fittings

Application

Disease Control: Microbiological detection of legionella, public water and food samples
Pharmaceutical Industry: Microbial limit test and chemical analysis for pharmaceutical water, medicines and raw materials
Food & Beverage: Bottled water, packaged water, beer, beverages and liquid raw materials in production
Filtration application for chemical, cosmetic and electronic industries
Quality supervision and inspection
Waterworks, water supply and sewage testing
