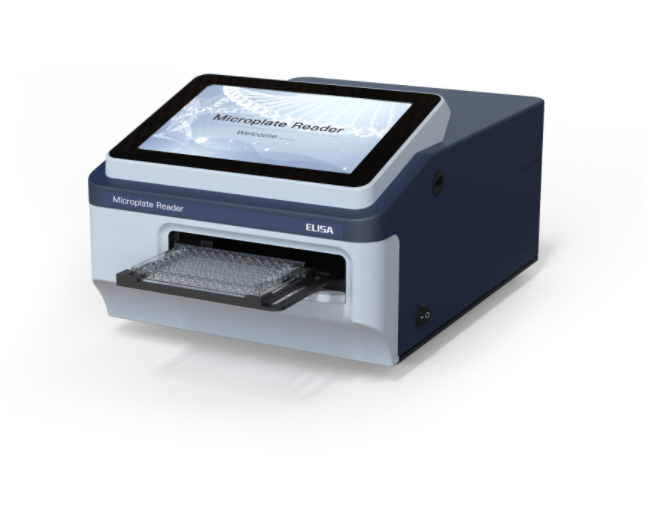

The Microplate Reader (ELISA Reader) is a high-precision, fully automated microplate photometer designed for Enzyme-Linked Immunosorbent Assay (ELISA) and other absorbance-based assays. It is widely used in clinical diagnostics, biotechnology, pharmaceutical research, food safety, and environmental testing for accurate detection and quantification of antigens, antibodies, proteins, and other biomolecules.
10-inch High-Resolution Touchscreen – Intuitive, capacitive touch display for easy operation and visual plate layout management, no external keyboard required.
Advanced Optical System – 6V 10W halogen lamp with a wavelength range of 340–750 nm. Equipped with an 8-position filter wheel and standard filters (405, 450, 492, 630 nm).
High-Performance Detection – Absorbance range: 0–4.000 Abs; Resolution: 0.001 Abs. Fast 96-well measurement in approximately 5 seconds (single wavelength).
Built-in Incubation & Shaking – Temperature control from RT+4°C to 65°C; adjustable shaking speed and duration for efficient mixing and incubation.
Data Storage & Connectivity – Supports single/dual wavelength detection, USB data export, direct printing, and storage of up to 5,000 programs.
Wide Compatibility – Supports 96-well flat, U-bottom, and V-bottom microplates.
| Parameter | Specification |
|---|---|
| Display | 10-inch capacitive touchscreen |
| Light Source | 6V 10W halogen lamp |
| Wavelength Range | 340–750 nm |
| Standard Filters | 405, 450, 492, 630 nm |
| Absorbance Range | 0–4.000 Abs |
| Resolution | 0.001 Abs |
| Reading Speed | < 5 seconds (96-well, single wavelength) |
| Incubation Temperature | RT+4°C to 65°C |
| Shaking Function | Adjustable speed and time |
| Data Interface | USB, printer port |
| Program Storage | Up to 5,000 programs |
ELISA assays (qualitative and quantitative)
Clinical diagnostics and biomarker screening
Pharmaceutical and vaccine research
Food safety and environmental monitoring
Life science research and laboratory testing
