Mini PCR DNA Amplifier

1. Capacity: 32x0.2ml tubes and 4x8 tube strips 2. Heating/cooling method: Peltier 3. 5-inch intuitive color touch screen—for easy programming of users. 4. 100 typical programs can be stored in memory and easily recalled. 5. The block heats and cools very quickly—at rates as fast as 4°C/sec. 6. The heated lid is self adjusting—the spring loaded platen in the lid comes firmly into contact with the tops of the tubes to prevent sample evaporation and condensation.
  • Mini PCR DNA Amplifier

SPECIFICATION

INTRODUTION

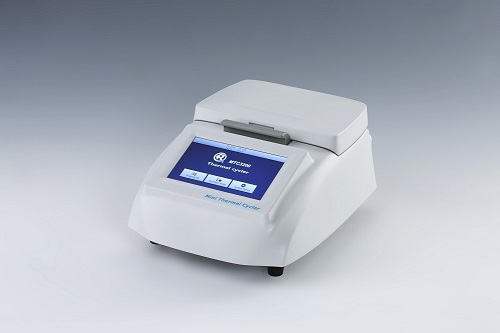

Mini Thermal Cycler is a compact, accurate and economical thermal cycler, designed to fit lab’s basic thermal cycling needs. The operation of the thermal cycler is controlled by a 5-inch color touch screen. It has a capacity for 32x0.2ml tubes. The wells are arranged in a 4x8 format, allowing the block to accept strips of 8 as well as individual tubes. Excellent block uniformity ensures consistency sample to sample. Fast incubation function meets the experimental needs of denaturation, enzyme digestion / enzyme linkage, ELISA, etc. With a small footprint, the Mini Thermal Cycler will fit almost anywhere.



Features:

1. Capacity: 32x0.2ml tubes and 4x8 tube strips

2. Heating/cooling method: Peltier

3. 5-inch intuitive color touch screen—for easy programming of users.

4. 100 typical programs can be stored in memory and easily recalled.

5. The block heats and cools very quickly—at rates as fast as 4°C/sec.

6. The heated lid is self adjusting—the spring loaded platen in the lid comes firmly into contact with the tops of the tubes to prevent sample evaporation and condensation.

7. Temperature of heated lid can be changed or the heating function of the lid can be turned off.

8. After a run, samples can be held at 4°C.

9. An on-screen report is available at the completion of a run.



2. Parameters

Model

MTC3200

Capacity

32x0.2ml tubes, 4x8 tube strips

Temp. setting range

0℃~100℃

Temp. control range

4℃~100℃

Temp. accuracy/uniformity

≤±0.25℃/≤±0.25℃

Max. heating rate

4℃/sec

Max. cooling rate

2℃/sec

Heated lid temperature

RT.+5℃~110℃, user adjustable

Temp. display resolution

0.1℃

Temp. control

Simulated sample or block

Display

5-inch color touch screen, 800x480 Pixel

Communication interface

USB(1 port)

 Program memory

100 programs

Time increments/decrements

1~120s

Temp. increments/decrements

0.1~9.9℃

Storage at 4℃

Yes

On-screen report

Yes

Power

200W

Voltage

AC100~240V, 50-60Hz

Fuse

250V  3A  Ф5×20

Dimension(mm)

264x200x125

Weight(kg)

2.3
