SPECIFICATION

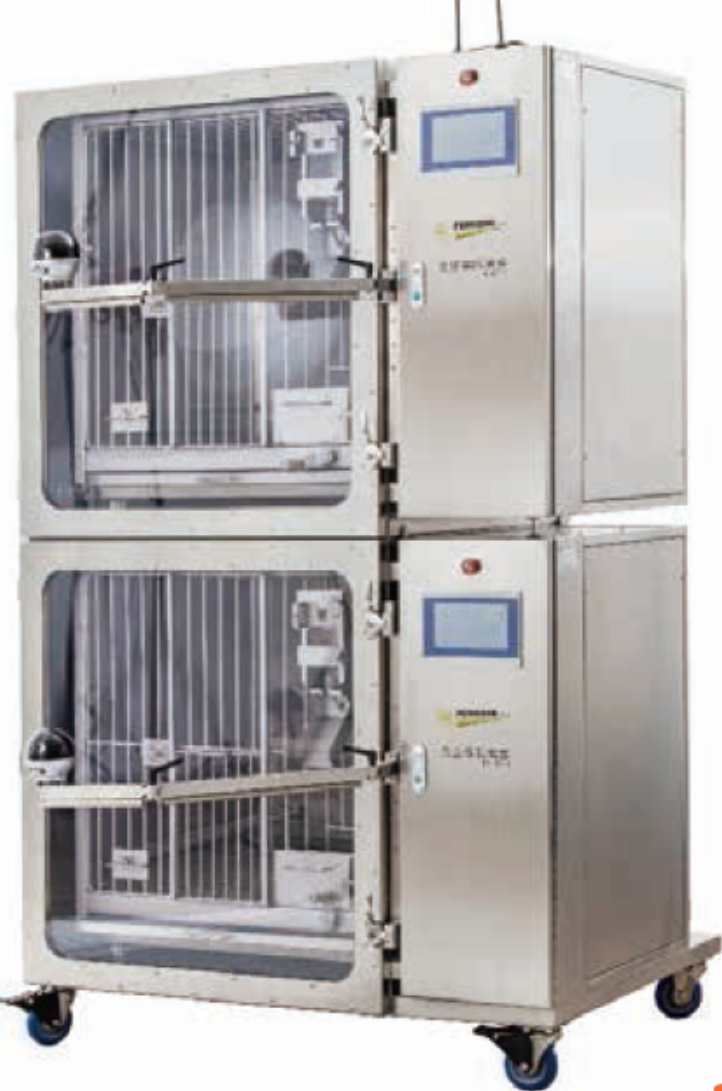

This device is a specialized device for raising sterile animals (nude mice) and SP animals. Disinfect and sterilize the mouse box, feed, bedding, and drinking water in a regular environment according to strict laboratory operating procedures to prevent infection of the animals in the isolation package. This equipment consists of four parts: a rack, a fan case, an isolation bag, and a squirrel cage. The rack is a stainless steel structure that supports the isolation package. The fan box provides clean air for the isolation package and filters the gases emitted by animals before being discharged outdoors. The isolation bag adopts imported transparent film, with a long service life; Provide a clean, comfortable isolation environment for animals.
Product Uses
Make the temperature, humidity adjusted freely within a certaiange, while in accordance with the requirements have been setautomatically adjust the pressure gradient inside the isolator, toensure that the fresh air and ventilation frequency Inside thesolator and maintain a certain pressure difference.
Size:860*880*1950mm
The main components include :
Technical performance indicators:
1. The isolator is designed with a double layer of upperand lower single cages, each with a control unit. One solator, two monkey cages, and two control units area set of equipment
2. The unit is equipped with an inlet high-efficiency filter and an exhaust high-efficiency filter, with afiltration efficiency of 99.995%. The inlet and exhaust filters are equipped with dop detection ports
3. The isolator has a double door design, with one dooropen during operation, which does not affect the normal operation of the other floor
4. Each layer of isolator is equipped with a high-definition camera, which can be remotely operated for easy observation of the internal situation of the isolator
5. The isolator is designed in a double-layer designwith each layer equipped with a SUS304 stainless steel monkey cage. Each monkey cage is equipped with asliding door and a fecal tray to save internal space ofthe isolator. It is equipped with a monkey specific feederand a special drinking water bottle
6. the inside of the monkey cage is equipped with aperch and a squeezing device, and the squeezing plateis operated manually
7. The machine is equipped with a vhp disinfection interface, which uses SUS304 stainless steel quick interfaceto disinfect the internal pipelines and high-efficiencyfilters of the isolator and control unit
8. The control unit is equipped with a bottle inside UPS power supply, which can continuously last for morethan 12 hours in case of power outage
9. The control unit has the real-time alarm function ofthe Internet of Things. When the device alarms, thealarm content can be sent to relevant personnel through Wechat
