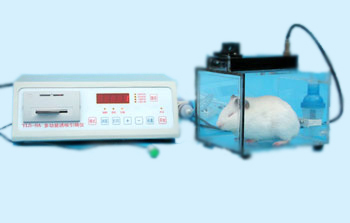

Multifunction Inducement Cough & Gasp A
1.General introduction Multifunction Inducement Cough 8i Gasp Apparatus is such a instrument that changes liquid medicine or suction anaesthesia at some time, quantity consistency and original quality into atomization gas sol and injects into animal body through the respiratory system, what makes little animal anaesthetize, gasp and cough, so it can be used to study guarding against and treating or exploiting the symptom.
The apparatus has many uses,not only used to induce cough and gasp in pharmacology, but also for little animal’s anaesthesia, infecting toxin, testing atomization medicine’s effect and imitating high humidity environment. It also is a good instrument in teaching and research.
2. Technical index
Animal box’s volume: 4L
Gas atomization grain’s diameter: ≤3um
Atomization spraying quantity: 0.15±0.01ml/min, 2.5±0.15μl/s
Atomization pressure(constant): 66.6KPa(500mmHg)
Maximum holding medicine’s quantity: ≤20ml
Noise <65db(A)
Lightning clock operation period: 10 years
Clock error: <0.083 s/h
Power’s voltage: 220V 50Hz
Inputting power: 150w
Temperature: 10-35℃
Relative temperature: ≤80%RH
Air pressure scope: 860-1069hPa
Air pumb operates intermittently and maximum operation period is 30 minutes
Activated carbon filtrates grain by regurgitation
Have micro-printer and store 42 groups data
Have I O
Have automatic and hand controlling cough note system
Changing anaesthesia, inducing gasp and guiding cough function freely
