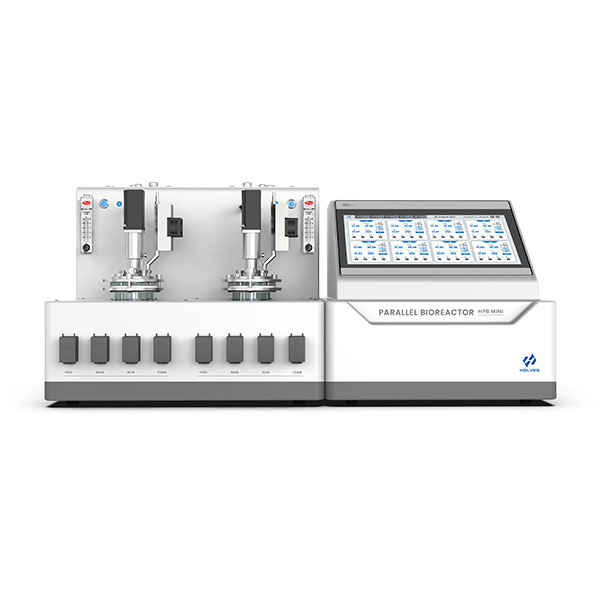

The parallel bioreactor is a scientific research tool that enables high-throughput screening of bacterial fermentation and cell culture in the laboratory. The product can simultaneously conduct multi-parameter and multi-objective integrated fermentation experiments, improve process efficiency, and bring leapfrog progress to your scientific research work.
Core parameters:Tank volume: 200mL, 500mL, 1000mL, customizable pH control: range: 2-12 pH accuracy: ± 0.02
Ventilation system: imported glass rotor flowmeter, optional MFC dissolved oxygen control: range: 0-200% accuracy: ± 0.1%
Expansion: 2 groups per unit, can be expanded to up to 64 mixing control groups: Innovative unsealed design H-Mix ® Mixing system
Tank material: high borosilicate glass, 316L stainless steel sterilization method: out of position sterilization
Product advantages:1. Flexible application
Thanks to the application of new bus technology, the product can achieve modular BBM building design with building blocks. The equipment is divided into 2 groups and can be expanded to a maximum of 64 groups, forming a larger number of parallel reactors. The tank volume is mainly 200mL/500mL/1000mL, which can be customized according to user needs. Can flexibly cope with laboratory scale aerobic, anaerobic bacteria, yeast, and fungal biological processes.
2. Strong stability
Adopting Siemens SIMATIC S7-1200 series high-end processors, with faster computing speed;
The entire system adopts RS-485 bus control communication mode to improve system operation stability;
● Waterless temperature control system based on Peltier effect and cooling water temperature control system are optional;
The entire series uses top domestic and foreign brand components, with excellent quality.
3. Fully functional
● Built in HF Control V2.2 control software, experimental data can be monitored, tracked, exported, and customized for multiple time periods in real-time and locally;
● The system supports WinCC SCADA monitoring and control screens, synchronized with HMI control;
● Support reactor amplification calculation and flexibly process data;
● Support software data analysis, comprehensive data information management, and experimental design (DoE)
4. Innovation patents
Holles' unique innovative technology, including H-Mix ® Mixing system, Feed Up ® Replenishment system, Smart-SC ® Multiple intelligent technologies such as intelligent sequential control, combined with the control system, comprehensively simplify your experimental operation process.
