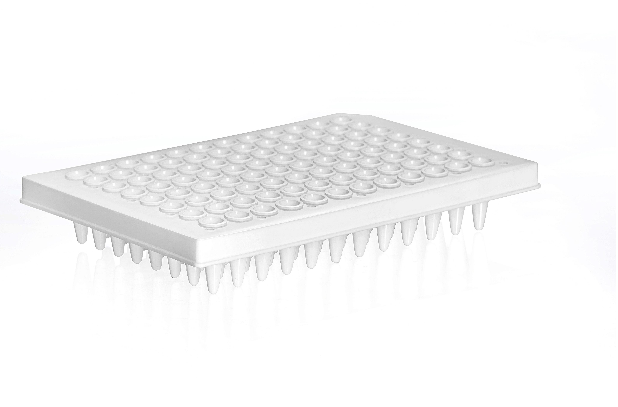

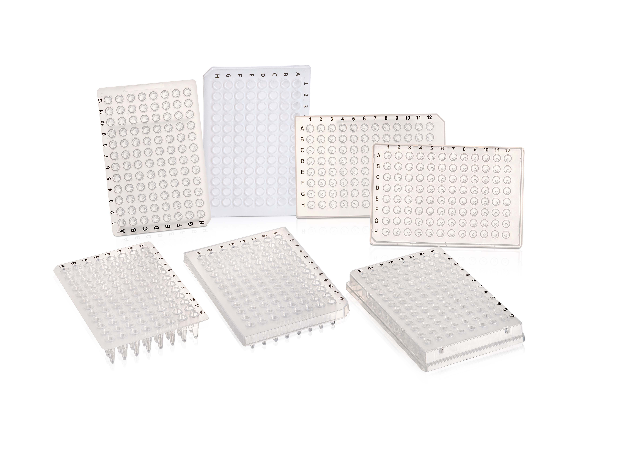

The PCR plate is a carrier for the amplification reaction system in polymerase chain reaction (PCR) experiments, widely used in fields such as genetics, biochemistry, immunity, medicine, etc. The BT PCR board is preferably made of polypropylene (PP) raw material that meets the USP Class VI standard. The board surface is flat, firm, and not easily deformed, with a thin-walled design of the tube body and good thermal conductivity, ensuring efficient PCR reaction.
Specification: 96 holes without skirt edge 96 holes with half skirt edge 96 holes with full skirt edgeCapacity: 0.2mLColor: Transparent whitePolypropylene (PP), compliant with USP Class VI standardProduct features:*The thin-walled design of the tube body has uniform thickness, rapid and uniform heat transfer, reliable results, and strong repeatability

*The board surface is flat and firm, resistant to warping, and durable without deformation during automation, high-temperature and high-pressure (121 ℃, 20min), high-speed centrifugation (2000g), and other operations
*The protruding edge of the hole can prevent cross contamination and facilitate sealing, effectively reducing sample evaporation after sealing

*Black letter identification helps to quickly identify and trace samples during manual sampling

*Transparent and white plates are optional. The white PCR plate can effectively read low signal fluorescence values, reduce background fluorescence interference, and is more suitable for qPCR experiments

*The board conforms to ANSI/SBS international standards, has high adaptability, and is compatible with various mainstream brands of PCR/qPCR instruments
*Each hole has passed 100% sealing test to ensure safe sample handling
*Unmanned DNA, no RNase/DNase, no pyrogen, no PCR inhibitor, no ATP

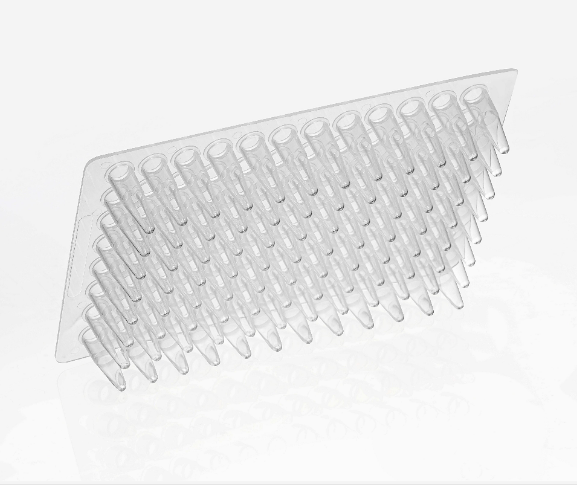

Application Description:*No skirt board: Suitable for most PCR machines or qPCR machines, but not suitable for automated applications.
*Half skirt board: can adapt to labels or apply barcodes, as well as automation applications.
*Full skirt board: very suitable for automated experimental applications, as well as suitable for labeling and barcode applications. Good mechanical strength, suitable for PCR instruments with protruding modules. Ase, no pyrogen, no PCR inhibitor, no ATP
Ordering information
Catalog NO.
|
Capacity (mL)
|
Specification (well)
|
Skirt board
|
Color
|
Sterilization
|
Pics/box
|
PCR400096
|
0.2
|
96
|
No
|
Transparent
|
No
|
10/100
|
PCR410096
|
0.2
|
96
|
Half skirt board
|
Transparent
|
No
|
10/100
|
PCR420096
|
0.2
|
96
|
Full skirt board
|
Transparent
|
No
|
10/100
|
PCR401096
|
0.2
|
96
|
No
|
Transparent
|
Yes
|
10/100
|
PCR411096
|
0.2
|
96
|
Half skirt board
|
Transparent
|
Yes
|
10/100
|
PCR421096
|
0.2
|
96
|
Full skirt board
|
Transparent
|
Yes
|
10/100
|
PCR500096
|
0.2
|
96
|
No
|
white
|
Yes
|
10/100
|
PCR510096
|
0.2
|
96
|
Half skirt board
|
white
|
Yes
|
10/100
|
PCR520096
|
0.2
|
96
|
Full skirt board
|
white
|
Yes
|
10/100
|
