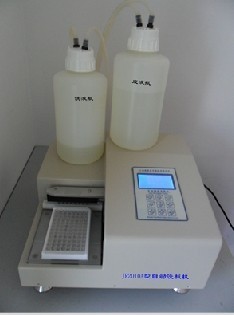

Plates washers/microplate readers
This product has the characteristics of simple operation, high reliability, clean washing, and adaptability to SBS specification 96 well and 384 well microporous plates. The instrument adopts LCD display, fully Chinese operation, and is easier for users to operate and use. The instrument can store 20 user set programs. When cleaning the board, simply select the program you have already set, and the instrument will automatically complete the operation you require. This manual provides a detailed introduction to the installation, operation, adjustment, maintenance, and related precautions of the JR2010-C 96/384 multifunctional automatic plate washing machine. Users should carefully read this manual before using this instrument.
2、 Technical parameters:
1. Cleaning head: 8 channels, 12 channels, 16 channels, 24 channels.
2. Cleaning frequency: 1-20 times adjustable.
3. Number of cleaning rows: 1-12 rows adjustable (96 well plates), 1-24 rows adjustable (384 well plates).
4. Soaking time: 0-240s adjustable, with an error of ± 2s.
5. Residual liquid volume: ≤ 2 per hole μ When using a rotating suction method for Type A, each hole ≤ 1 μ l) .
6. Instrument power: 150W
7. Instrument mass: approximately 10kg
3、 Normal working conditions
1. Environmental temperature: 10 ℃~40 ℃;
2. Relative humidity: not more than 75%;
3. Atmospheric pressure: 86 kPa~106kPa;
4. Surrounding environment: No strong magnetic field interference and mechanical vibration, no corrosive gases;
5. Power supply conditions: AC 220V ± 22V; Frequency: 50Hz ± 1Hz;
