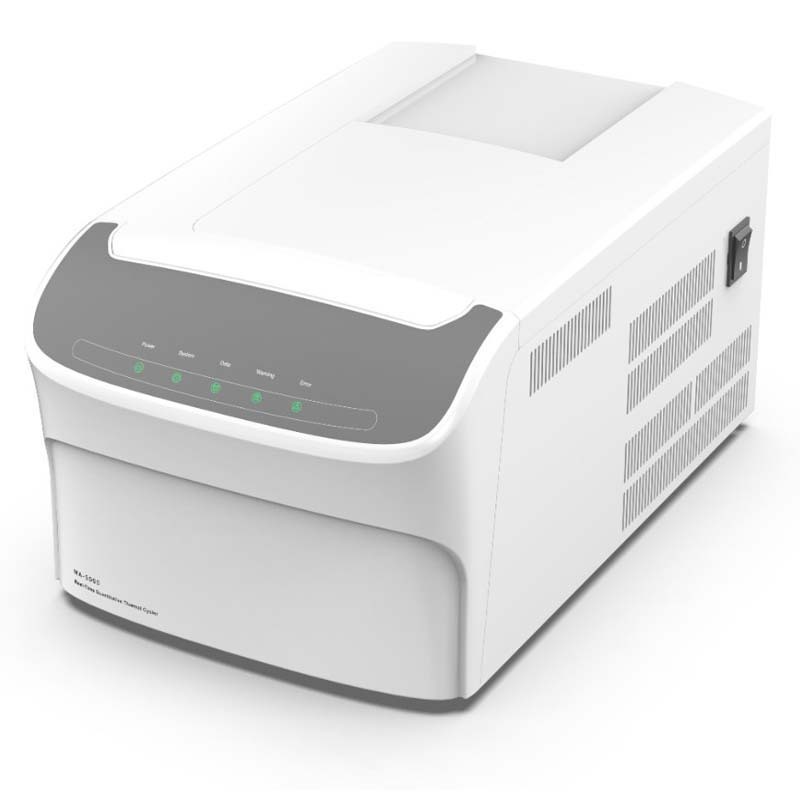

OVERVIEW
Type: Genes & Life Science Equipments Brand Name: Beyondbio-tech
Model Number: Gene3000 Place of Origin: Shanghai, China
Certificate: CE ISO9001 ISO13485 Function: DNA Analysis
Display: Connect to PC Warranty: 1 Year
Power Supply: 100-240V 50/60Hz Size:60CM(L)*39CM(W)*32CM(H)
Sample Volume: 20ul ~120ul Package: Carton+EVA+Wooden Case
Application: Hosipital, clinical detection, laboratory, animal husbandry
After-sale Service: Online technical support
Main Applications:
* Basic scientific research
* Pathogen detection
* Public health safety epidemic monitoring
* Adulteration of meat products
* Genetically Modified testing
* Food safety testing
* Drug development and rational use
* Tumor precision treatment
* Gene expression
* Genetic screening
* Genotyping
* Stem cell Research
Product Features:
(1) Highly sensitive and capable for most experiments.
(2) 4 independent and intelligent temperature control technology with full light spectrum halogen lamp as excitation light source.
(3) 96 x 0.2 ml reaction module, 4 fluorescent channels, suitable for most of the practical applications.
(4) So easy and quick to operate one to ten machines only by one computer in the meantime.
Performance Parameters
Configuration |
96 wells of 0.2 ml each, suitable for single tube and 8 tube strips |
Heating and cooling module |
Peltier semiconductor thermoelectric module, dual independent temperature control and smart thermal compensation technology, fast and uniform heating and heat dissipation, uniform temperature among wells and no heat fringing effect. |
Temperature modulation range |
4℃ ~ 100℃ |
Ramp rate |
3.5℃/s |
Damp rate |
3.2℃/s |
Temperature control accuracy |
±0.1℃ |
Uniformity of temperature control |
±0.25℃ |
Fluorescent channels |
4 channels |
Excitation light spectrum |
380nm ~ 780nm |
Detection light spectrum |
380nm ~ 780nm |
Number of filter combinations |
Custom |
Excitation light source |
Halogen lamp |
Detection device |
-20℃ CCD |
Fluorescence conduction mode |
Space dedicated optical fiber |
Supported dye |
Full range of fluorescent quantitative PCR reagents or customized |
Reaction volume |
20-120 μl |
Control mode |
Connect to PC |
Detection number |
Up to 384 samples in one run |
Detection sensitivity |
10~10⁹ copies per reaction, without contaminants among samples |
Software function |
Absolute quantification, relative quantification, end-point genotyping (Taqman probe method); melting curve genotyping (hybridization probe method), Tm value determination, and melting curve analysis function. |
Operating temperature |
18℃~35℃ |
Storage temperature |
20℃~55℃ |
Ambient relative humidity |
0%~85% |
Working voltage |
100~240V, 50~60HZ |
Biological Instrument Catalog
Grinding instrument
Item Number |
Product Name |
Specification |
Price |
KZ-5F-3D |
3D frozen grinding machine |
-40℃ |
¥50000 |
SWE-FP |
Grinder low-temperature type |
-50 ℃ with independent freezing table |
¥50000 |
KZ-III-FP |
Grinder low-temperature type |
-40 ℃ |
¥45000 |
KZ-III-F |
Grinder low-temperature type |
-10 ℃ |
¥35000 |
KZ-III-96 |
Grinder Economy |
96 well plate type, room temperature |
¥24000 |
KZ-III |
Grinder Economy |
normal temperature |
¥24000 |
KZ-III-YLS |
Water quality chlorophyll extraction and grinding instrument |
normal temperature |
¥26000 |
Grinding tube
Item Number |
Product Name |
Specification |
Price |
HT-200-M |
Grinding tube 2.0mL (enzyme free) |
500/box |
¥80 |
Beading device
Item Number |
Product Name |
Specification |
Price |
SYM-02B |
Beading device (sterile) |
Support (2mm steel ball) |
¥330 |
SYM-03B |
Beading device (sterile) |
Support (3mm steel ball) |
¥230 |
SYM-04B |
Beading device (sterile) |
Support (4mm steel ball) |
¥230 |
SYM-02Z |
Beading device (sterile and enzyme free) |
Branch (2mm zirconia) |
¥330 |
SYM-03Z |
Beading device (sterile and enzyme free) |
Branch (3mm zirconia) |
¥330 |
SYM-04Z |
Beading device (sterile and enzyme free) |
Branch (4mm zirconia) |
¥330 |
Grinding beads
Item Number |
Product Name |
Specification |
Price |
G0101-200G |
Grinding beads (steel) |
1mm 200g |
¥380 |
G0102-200G |
Grinding beads (steel) |
2mm 200g |
¥280 |
G0103-200G |
Grinding beads (steel) |
3mm 200g |
¥180 |
G0104-200G |
Grinding beads (steel) |
4mm 200g |
¥180 |
G0201-150G |
Grinding beads (zirconia) |
1mm 150g |
¥380 |
G0202-150G |
Grinding beads (zirconia) |
2mm 150g |
¥280 |
G0203-150G |
Grinding beads (zirconia) |
3mm 150g |
¥280 |
G0204-150G |
Grinding beads (zirconia) |
4mm 150g |
¥280 |
G0210-100G |
Grinding beads (zirconia) |
0.1mm 100g |
¥380 |
G0250-100G |
Grinding beads (zirconia) |
0.5mm 100g |
¥380 |
G0310-40G |
Grinding beads (glass) |
0.1mm 40g |
¥80 |
G0350-40G |
Grinding beads (glass) |
0.5mm 40g |
¥80 |
Grinder adapter
Item Number |
Product Name |
Specification |
Price |
SWE-FP-D524 |
Grinder adapter |
0.5ML*24 |
¥580 |
SWE-FP-0224 |
Grinder adapter |
2ML*24 |
¥580 |
SWE-FP-0224S |
Grinder adapter |
2ML*24(实心) |
¥580 |
SWE-FP-0232 |
Grinder adapter |
2ML*32 |
¥580 |
SWE-FP-0248 |
Grinder adapter |
2ML*48 |
¥580 |
SWE-FP-0248S |
Grinder adapter |
2ML*48(实心) |
¥580 |
SWE-FP-0260 |
Grinder adapter |
2ML*60 |
¥580 |
SWE-FP-0512 |
Grinder adapter |
5ML*12 |
¥580 |
SWE-FP-1010 |
Grinder adapter |
10*10 mL |
¥580 |
SWE-FP-0296 |
Grinder adapter |
2ML*96 |
¥1280 |
SWE-FP-9602 |
Grinder adapter |
96孔板*2 |
¥1280 |
SWE-FP-0506B |
Grinder adapter |
5ML*6 |
¥1280 |
SWE-FP-1508B |
Grinder adapter |
15ML*8 |
¥1280 |
SWE-FP-3004B |
Grinder adapter |
30ML*4 |
¥1280 |
SWE-FP-5002B |
Grinder adapter |
50ML*2 |
¥1280 |
SWE-FP-3004Z |
Grinder adapter |
30ML*4 |
¥1280 |
SWE-FP-5002Z |
Grinder adapter |
50ML*2 |
¥1280 |
SWE-3D-0224 |
Grinder adapter |
3D 2ML*24 |
¥1280 |
SWE-3D-0512 |
Grinder adapter |
3D 5ML*12 |
¥1280 |
Pipette
Item Number |
Product Name |
Specification |
Price |
SPIP-2.5 |
Pipette |
(0.1-2.5 μL) |
¥200 |
SPIP-10 |
Pipette |
(1-10 μL) |
¥200 |
SPIP-20L |
Pipette |
(2-20 μL) |
¥200 |
SPIP-20 |
Pipette |
(2-20 μL) |
¥200 |
SPIP-50 |
Pipette |
(5-50 μL) |
¥200 |
SPIP-100 |
Pipette |
(10-100 μL) |
¥200 |
SPIP-200 |
Pipette |
(20-200 μL) |
¥200 |
SPIP-1000 |
Pipette |
(100-1000 μL) |
¥200 |
SPIP-5000 |
Pipette |
(1000-5000 μL) |
¥200 |
SPIP-10000 |
Pipette |
(1000-10000 μL) |
¥200 |
SPIP-B10 |
8-channel pipette |
(1-10 μL) |
¥950 |
SPIP-B50 |
8-channel pipette |
(5-50 μL) |
¥950 |
SPIP-B300 |
8-channel pipette |
(50-300 μL) |
¥950 |
SPIP-B1000 |
8-channel pipette |
(100-1000 μL) |
¥950 |
SPIP-2.5-D |
Pipette (customized) |
(0.1-2.5 μL) |
¥500 |
SPIP-10-D |
Pipette (customized) |
(1-10 μL) |
¥500 |
SPIP-20L-D |
Pipette (customized) |
(2-20 μL) |
¥500 |
SPIP-20-D |
Pipette (customized) |
(2-20 μL) |
¥500 |
SPIP-50-D |
Pipette (customized) |
(5-50 μL)( |
¥500 |
SPIP-100-D |
Pipette (customized) |
(10-100 μL) |
¥500 |
SPIP-200-D |
Pipette (customized) |
(20-200 μL) |
¥500 |
SPIP-1000-D |
Pipette (customized) |
(100-1000 μL) |
¥500 |
SPIP-5000-D |
Pipette (customized) |
(1000-5000 μL) |
¥500 |
SPIP-10000-D |
Pipette (customized) |
(1000-10000 μL) |
¥500 |
SPIP-B10-D |
8-channel pipette (customized) |
(1-10 μL) |
¥1200 |
SPIP-B50-D |
8-channel pipette (customized) |
(5-50 μL) |
¥1200 |
SPIP-B300-D |
8-channel pipette (customized) |
(50-300 μL) |
¥1200 |
SPIP-B1000-D |
8-channel pipette (customized) |
(100-1000 μL) |
¥1200 |
Nucleic acid electrophoresis instrument>vertical electrophoresis instrument
Item Number |
Product Name |
Specification |
Price |
SVE-2 |
vertical electrophoresis instrument |
Pics |
¥2500 |
Transfer electrophoresis instrument
Item Number |
Product Name |
Specification |
Price |
SVT-2 |
Transfer electrophoresis instrument |
Pics |
¥2000 |
Electrophoretic transfer printing accessories
Item Number |
Product Name |
Specification |
Price |
SVE-2-BJ |
Peeling shovel |
Pics |
¥30 |
SVE-2-DB |
Single adhesive blocking plate |
Pics |
¥50 |
SVE-2-DX |
Electrophoretic wire |
Pics |
¥50 |
SVE-2-HT |
Electrophoresis instrument lower tank |
Pics |
¥200 |
SVE-2-YZ |
Prefabricated adhesive strip |
Pics |
¥50 |
SVE-2-ZJ |
In situ glue maker |
Pics |
¥350 |
SVE-2-ZT |
Electrophoresis instrument body (including platinum wire) |
Pics |
¥1600 |
SVT-2-HG |
Electrophoresis instrument upper cover (including electrophoresis lead) |
Pics |
¥150 |
SVT-2-JZ |
Transfer clip |
Pics |
¥200 |
SVT-2-ZT |
Transfer machine body |
Pics |
¥1400 |
SVT-TC |
Transfer core |
Pics |
¥1600 |
Split shaking
Item Number |
Product Name |
Specification |
Price |
SYC-FP200 |
Split shaking table (intelligent horizontal type) |
Pics |
¥2200 |
SYC-FZ100 |
Split shaking table (intelligent pendulum type) |
Pics |
¥2200 |
DS-3D100 |
Multifunctional shaking table (horizontal+pendulum+3D) |
Pics |
¥5000 |
DS-2H200 |
Digital horizontal shaking table (intelligent, large tray) |
Pics |
¥1950 |
DS-2S100 |
Digital pendulum shaker (intelligent, large tray) |
Pics |
¥1950 |
SYC-P200 |
Digital display horizontal shaking table (intelligent) |
Pics |
¥1250 |
SYC-Z100 |
Digital display pendulum shaker (intelligent) |
Pics |
¥1250 |
Centrifuge
Item Number |
Product Name |
Specification |
Price |
SMC-5000F |
Palm Centrifuge (upgraded, integrated) |
Pics |
¥700 |
MS6000 |
Palm Centrifuge (Upgraded) |
Pics |
¥450 |
MC-700 |
Palm Centrifuge (Regular Type) |
Pics |
¥450 |
SMP-2 |
Microporous plate centrifuge (PCR reaction plate specific type) |
Pics |
¥2000 |
Magnetic stirrer
Item Number |
Product Name |
Specification |
Price |
SMS-200A |
Heating magnetic stirrer (intelligent heating type) |
Pics |
¥3500 |
SMS-200 |
Magnetic stirrer (intelligent) |
Pics |
¥1600 |
MS-150 |
Magnetic stirrer (basic type) |
Pics |
¥450 |
WGA0021 |
Magnetic stirrer |
1.5 cm |
¥10 |
WGA0022 |
Magnetic stirrer |
3 cm |
¥10 |
WGA0023 |
Magnetic stirrer |
5 cm |
¥12 |
Vortex mixer
Item Number |
Product Name |
Specification |
Price |
SMV-4500B |
Vortex mixer (intelligent, digital display button type) |
Pics |
¥980 |
SMV-3500 |
Vortex mixer (intelligent, rotary type) |
Pics |
¥850 |
Vortex mixer adapter
Item Number |
Product Name |
Specification |
Price |
SMV-0220 |
Vortex mixer adapter |
Suitable for 1.5 mL, 2 mL centrifuge tubes |
¥60 |
SMV-0296 |
Vortex mixer adapter |
Suitable for 96 hole plate, eight pipe |
¥60 |
SMV-1504 |
Vortex mixer adapter |
Suitable for 15 mL centrifuge tube |
¥60 |
SMV-A |
Vortex mixer adapter |
Silicone (suitable for diameters<30 mm) |
¥60 |
SMV-H |
Vortex mixer adapter |
Silicone (suitable for diameters<108 mm) |
¥60 |
Metal bath
Item Number |
Product Name |
Specification |
Price |
SMB-MH |
Metal bath (heating, oscillation) |
Pics |
¥5500 |
SMB-PC |
Metal bath (programmable, heating, cooling) |
Pics |
¥5000 |
SMB-C |
Metal bath (heating, cooling) |
Pics |
¥4000 |
SMB-H |
Metal bath (heating) |
Pics |
¥2500 |
Metal bath adapter
Item Number |
Product Name |
Specification |
Price |
SMB-C 1535 |
Metal bath adapter |
1.5 mL*35 |
¥240 |
SMB-C 2035 |
Metal bath adapter |
2.0 mL*35 |
¥240 |
SMB-C 200U96 |
Metal bath adapter |
200 μL*96 |
¥240 |
SMB-C 200U96M |
Metal bath adapter |
200 μL*96 |
¥240 |
SMB-H 1535 |
Metal bath adapter |
1.5 mL*35 |
¥240 |
SMB-H 2035 |
Metal bath adapter |
2.0 mL*35 |
¥240 |
SMB-H 200U96 |
Metal bath adapter |
200 μL*96 |
¥240 |
SMB-H 200U96M |
Metal bath adapter |
200 μL*96 |
¥240 |
SMB-H/C 020515 |
Metal bath adapter |
0.2+0.5+1.5(mL) |
¥240 |
SMB-H/C 0215 |
Metal bath adapter |
32*0.2 mL+25*1.5 mL |
¥240 |
SMB-H/C 0554 |
Metal bath adapter |
0.5 mL*54 |
¥240 |
SMB-H/C 5024 |
Metal bath adapter |
5 mL*24 |
¥240 |
SMB-H/C 10M15 |
Metal bath adapter |
10 mL*15 |
¥240 |
SMB-H/C 15M12 |
Metal bath adapter |
15 mL*12 |
¥240 |
SMB-H/C 50M6 |
Metal bath adapter |
50 mL*6 |
¥240 |
Sealing device
Item Number |
Product Name |
Specification |
Price |
FS-A20 |
Sealing device (intelligent) |
Pics |
¥12000 |
FS-E30 |
Sealing device (convenient type) |
Pics |
¥9000 |
FS-FH10 |
Fully automatic heat sealing instrument |
Pics |
¥62000 |
Sealing Instrument Pipe Adapter
Item Number |
Product Name |
Specification |
Price |
FS-A20-64 |
FS-A20 Sealing Instrument 8-way Pipe Adapter |
Pics |
¥500 |
FS-A20-96 |
FS-A20 sealing instrument hole adapter (96 holes) |
Pics |
¥500 |
FS-A20-384 |
FS-A20 sealing instrument hole adapter (384 holes) |
Pics |
¥500 |
FS-E30-96 |
FS-E30 sealing instrument hole adapter (96 holes) |
Pics |
¥500 |
FS-E30-384 |
FS-E30 sealing instrument hole adapter (384 holes) |
Pics |
¥200 |
Vacuum pipette
Item Number |
Product Name |
Specification |
Price |
SZY-2L |
Vacuum pipette |
Pics |
¥2000 |
SZY-2L-SJP |
Collecting Bottles |
2 L |
¥45 |
SZY-2L-WS |
Vacuum aspirator handle |
Pics |
¥200 |
SZY-2L-JT |
Foot switch |
individual |
¥40 |
SZY-2L-Y |
Vacuum pipette adapter |
Standard type |
¥58 |
SZY-2L-CY |
Vacuum pipette adapter |
Extended type |
¥58 |
SZY-2L-YB200 |
Vacuum pipette adapter |
two hundred μ L.8 Paths |
¥68 |
Chemiluminescence imager
Item Number |
Product Name |
Specification |
Price |
SCG-W2000 |
Chemiluminescence imager |
Pics |
¥59800 |
Tissue chip handle
Item Number |
Product Name |
Specification |
Price |
SH-10 |
1.0mm tissue chip handle |
Aperture 1.0 mm/set |
¥10800 |
SH-15 |
1.5mm tissue chip handle |
Aperture 1.5 mm/set |
¥10800 |
SH-20 |
2.0mm tissue chip handle |
Aperture 2.0 mm/set |
¥10800 |
SH-30 |
3.0mm tissue chip handle |
Aperture 3.0 mm/set |
¥10800 |
SH-50 |
5.0mm tissue chip handle |
Aperture 5.0 mm/set |
¥10800 |
Tissue chip base wax block
Item Number |
Product Name |
Specification |
Price |
RP-10 |
Receptor base wax block |
1.0mm well15*20 |
¥350 |
RP-15 |
Receptor base wax block |
1.5mm well10*16 |
¥350 |
RP-20 |
Receptor base wax block |
2.0mm well8*12 |
¥300 |
RP-30 |
Receptor base wax block |
3.0mm well5*9 |
¥300 |
RP-50 |
Receptor base wax block |
5.0mm well3*5 |
¥250 |
