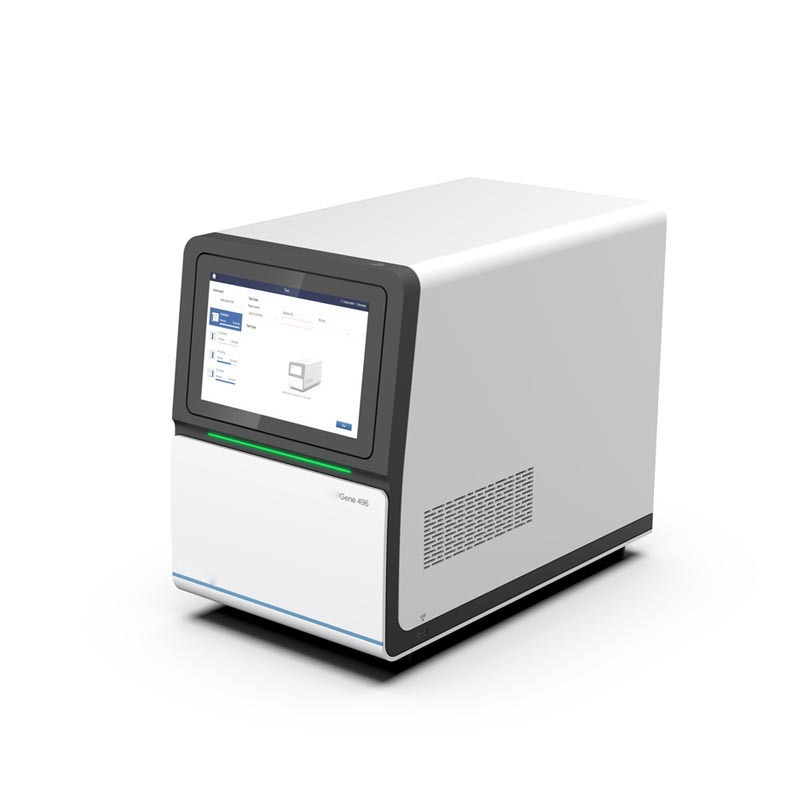

Real-Time PCR System

No.Gene496

Real- time PCR is used for sensitive, specific detection and quantification of nucleic acid targets. We have developed powerful assay design algorithms, optimized qPCR regent, intuitive data analysis software, and flexible instrumentation to help harness the power of qPCR across a rich and diverse set of applications. Explore our robust solutions for your qPCR-based research.



  • Real-Time PCR System

SPECIFICATION

Model Gene496
Block Sample Capacity 96-well * 0.1ml
Reaction Volume 10-50ul
Tubes Option Low-profile white or clear 0.1ml PCR tube/eight strip tubes with optical flat cap
Heating and Cooling Technology The newest generation of Peltier technology for more than  one million thermal cycles
Control Methods Operate via PC remote contro; or the touch screen on instrument with limited function
Language English
Communications USB 2.0 and LAN, export data via USB flash drive
Display 10'' Color TFT Touch Screen
Temperature
Block Temperature Range 0℃~105℃
Max. Heating Rate 7℃/s
Max. Cooling Rate 6℃/s
Temperature Uniformity ≤±0.2℃ (at 90℃)
Temperature Accuracy ≤±0.2℃ (at 90℃)
Display Resolution 0.1℃
Ramping Rate Adjustable Yes
Mode of Temperature Control Sim-tube & Block
Optical Module
Excitation   Long life LED
Detection High sensitivity photoelectric detector
Calibrated Dyes at Installation Channel 1:FAM、SYBR,   Channel 2:VIC、HEX、JOE
Fluorescence Excitation Range 470 — 500nm
Fluorescence Detection Range Channel 1:520 — 540nm,  Channel 2:540 — 700nm
Data Export Formats Excel, TXT
Computer
Operating Systems  Windows7、Windows8、Windows10
CPU Speed 2.0 GHz
Display Resolution 1366×768
Memory 2.00 GB RAM
Available Hard Disk > 20 GB
Other Features
Power Global switch power supply:  85V-265V, 50-60Hz
Consumption  400W
Net Weight 30 KG
Dimensions (w x d x h)  530×310×420mm
