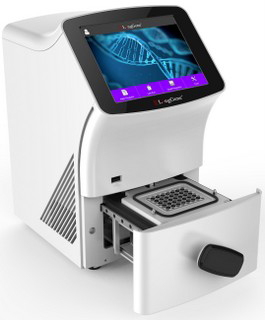

Real-Time Quantitative Thermal Cycler System

No.Gene100
Block Sample Capacity 48-well * 0.1ml Reaction Volume 10-50ul Tubes Option Low-profile white or clear 0.1ml PCR tube/eight strip tubes with optical flat cap Heating and Cooling Technology The newest generation of Peltier technology for more than one million thermal cycles Control Methods Operate via PC remote contro; or the touch screen on instrument with limited function Language English Communications USB 2.0 and LAN, export data via USB flash drive Display 7'' Color TFT Touch Screen
  • Real-Time PCR Thermal Cycler System

SPECIFICATION

 Model Gene100
Block Sample Capacity 48-well * 0.1ml
Reaction Volume 10-50ul
Tubes Option Low-profile white or clear 0.1ml PCR tube/eight strip tubes with optical flat cap
Heating and Cooling Technology The newest generation of Peltier technology for more than  one million thermal cycles
Control Methods Operate via PC remote contro; or the touch screen on instrument with limited function
Language English
Communications USB 2.0 and LAN, export data via USB flash drive
Display 7'' Color TFT Touch Screen
Temperature
Block Temperature Range 0℃~105℃
Max. Heating Rate 7℃/s
Max. Cooling Rate 6℃/s
Temperature Uniformity ≤±0.2℃ (at 90℃)
Temperature Accuracy ≤±0.2℃ (at 90℃)
Display Resolution 0.1℃
Ramping Rate Adjustable Yes
Mode of Temperature Control Sim-tube & Block
Optical Module
Excitation   Long life LED
Detection High sensitivity photoelectric detector
Calibrated Dyes at Installation Channel 1:FAM、SYBR,   Channel 2:VIC、HEX、JOE
Fluorescence Excitation Range 470 — 500nm
Fluorescence Detection Range Channel 1:520 — 540nm,  Channel 2:540 — 700nm
Data Export Formats Excel, TXT
Computer
Operating Systems  Windows7、Windows8、Windows10
CPU Speed 2.0 GHz
Display Resolution 1366×768
Memory 2.00 GB RAM
Available Hard Disk > 20 GB
Other Features
Power Global switch power supply:  85V-265V, 50-60Hz
Consumption  400W
Net Weight 8.2KG
Dimensions (w x d x h)  205×250×320mm
