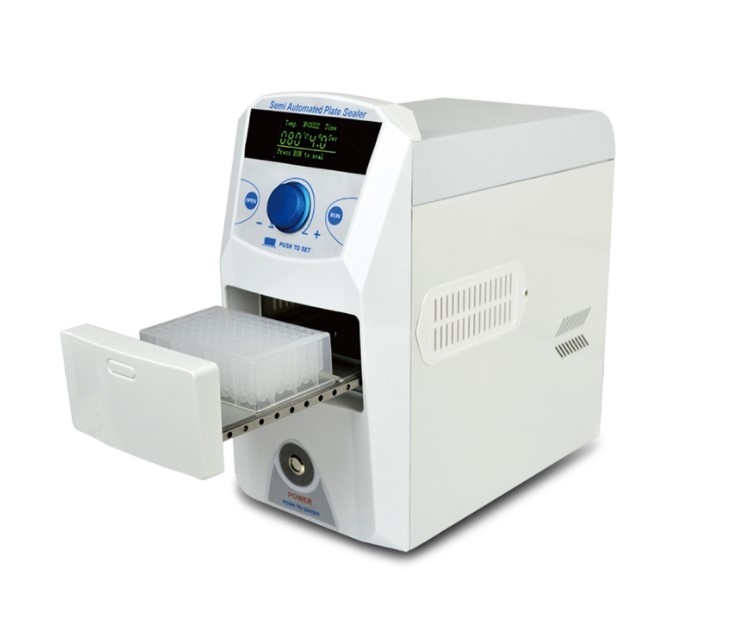

Product DescriptionThe automatic sealing instrument is a sealing instrument that prevents sample loss and spatial cross contamination caused by evaporation and leakage of various microporous plates (PCR plates, deep well storage plates, enzyme labeling plates, and cell culture plates) during the detection process by sealing various specialized heat sealing membranes. The appearance design of this machine is simple and generous, with simple operation and flexible and adjustable sealing pressure. It can be used from standard plates to deep hole plates, and has a wider range of applicable plates. The sealing temperature and sealing time can be flexibly set, with fast heating and real-time display of the sealing temperature. Suitable for ordinary rubber sealing film, heat sealing film, puncturable heat sealing film, optical heat sealing film (quantitative PCR), and permanent heat sealing film. Replace manual sealing to ensure firm sealing, automated sealing operation, and uniform pressure to ensure uniform and consistent sealing effect. The machine also adopts advanced ceramic plate heating technology, which can prevent the sealing film from sticking due to excessive temperature; The two sides of the body are designed with cleaning windows for easy cleaning and maintenance of the hot plate, extending its service life; Adopting precise steel ball tracks for lower noise and more accurate positioning; Automatic and deep sleep times can be set, making it more energy-efficient, low-carbon, and environmentally friendly. The above points make PS-200 stand out as an indispensable assistant for PCR and quantitative PCR instruments.
Product Features1. The exterior design is simple and generous, with a small footprint and easy operation.
2. Adopting OLED display screen, with a larger viewing angle and more energy saving and environmental protection.
3. The sealing plate can be adjusted to a temperature of 80-200 ℃, displaying the sealing plate temperature in real-time. The temperature rises quickly and reaches 170 ° C within 300 seconds. Fan cooling, rapid cooling.
4. The sealing pressure can be adjusted according to the actual effect, and can be suitable for various types of microporous plates and heat sealing membranes
5. Adopting a microprocessor for temperature control, with good accuracy, and a delicate heat sealing plate balanced structure to ensure consistent sealing effect
6. The temperature and sealing time of the hot sealing plate are accurately adjustable, with adjustment amplitude of 1 ° C and 0.1 seconds respectively
7. Advanced ceramic plate heating technology is adopted to prevent the sealing film from sticking due to excessive temperature
8. Both sides of the body are designed with cleaning windows for easy cleaning and maintenance of the hot plate, extending its service life
When there is no action within 9.60 minutes, the instrument automatically enters standby mode, and the temperature of the instrument automatically decreases to 60 ° C to achieve energy-saving effect.
When there is no action within 120 minutes, the instrument enters the "deep sleep" mode, turns off the display screen, cuts off the power supply of the heating element, and only weak current is supplied to the core components of the control board. Press any key, and the instrument can resume its working state.
11. Humanized design controls the entrance and exit of the cabin door. If hands or other objects obstruct the closing entrance and exit of the cabin door, the motor will reverse and exit the cabin door to protect the safety of users and samples.
12. Misoperation protection function. When the instrument is running, pressing "PEN" can immediately stop operation to prevent misoperation of the instrument.
Product parameters
