Product Features
1. Equipped with a gasification hydrogen peroxide disinfection interface, which can be used for online disinfection of the host and the entire machine.
2. The host is equipped with an air supply system and an exhaust system. The air supply system is equipped with an inlet primary efficiency filter and a HEPA high-efficiency filter, with a filtration efficiency of 9999%.
3. The host adopts a 7-inch HM true color operation interface, which can visually display: temperature, humidity, pressure difference, operation status of supply and exhaust fans, air change frequency, backup battery power, etc.
4. The host has real-time alarm function.
5. The host is equipped with a built-in UPS power supply. When the host is powered off, the backup power supply is automatically connected and has a 12 hour battery life.
6. All cage frames are made of stainless steel, with a small diagonal error of ±0.5mm in the finished product.
7. After the cage is detached from the cage, the air supply and exhaust valves of the cage can be automatically closed immediately, so that there is no leakage when removing the cage
8. The cage cover adopts a double silicone O-ring to seal the spring air nozzle. When in use, the inlet and exhaust valves can also maintain a good sealing state between the cage box and the air nozzle.
9. Stainless steel mesh cover: The stainless steel wire diameter of the main frame of the mesh cover is 4.0mm, and the rectangular mesh stainless steel wire diameter inside the main frame is 1.8mm. The finished mesh cover should undergo surface electrochemical treatment to ensure its surface is smooth and free of burrs.
10. Each VC cage must undergo a separate airtightness test, that is, a single cage must be vacuumed to -100Pa, and the decay time from 100Pa to 0Pa should not be less than 5 minutes.
11. The cage buckle is made of aerospace engineering plastic, and the buckle has a safety device to prevent cage leakage caused by misoperation. It is easy and fast to open, not easy to break, and has a long service life.
Packaging & Delivery
Packaging Details: carton with wooden case
Delivery Detail: 7-10 days
Specifications

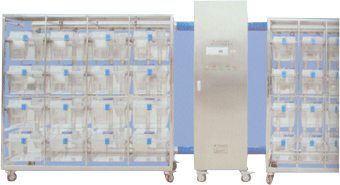

Independent ventilated cage(IVC), is with advanced technology, high quality, competitive price. IVC is represented by four components: Air system, exhaust system, cage shelf, box. Fans are used the original German imports, high-efficiency filters are produced by the Japanese joint venture Aetna,and imported original pressure gauges are employed in the United States. Special Pipes F-304 stainless steel cage is used imports. Raw materials of box are used PC transparent material from Germany's Bayer Company produced . Box and all sealing material used silicone rubber bear acid, alkali, the pressure of 15 pounds of high temperature 121 ° C for half an hour deformation.
Using Static breeze technology, independently delivery gas on each cage to prevent cross-infection.
The use of multi-function access Breeze makes valves automatically closed when boxes are put out .
Adjust every box wind speed and pressure difference arbitrarily to Completely protect animals and the environment safety
Medical silicone rubber seal ensure sealing of the cage boxes
HIP breeze makes the cage containing air leaving no quarter, reserved defense stifled channel blackout
Cage box containing HIP box makes clean air uniform downward delivering to the living area
Timer Timely remind the operator high efficiency filter replaced
Blackout alarm reminds the operator to open a window to life
Open the cage box and easily operate, only press the ends FIXATING BANDAGE TO EXTREMITY FRACTURE.
