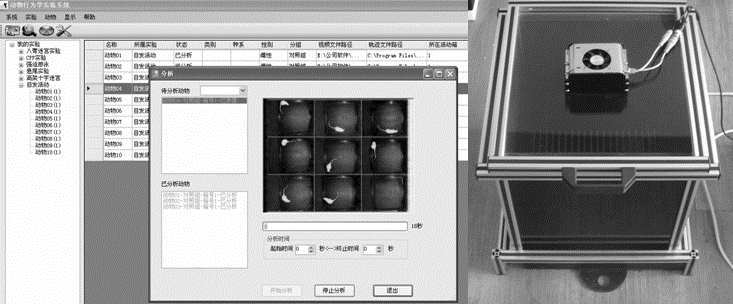

Spontaneous autonomous activity video analysis system is used for observe and research experimental animals nervous psychological changes also various behaviors when entering open environment,for example,animals feared the new open environment that mainly activity at side area and little activity at central area,but animal’s exploring characteristics make them to have motivation to activity at central area,also possible to observe the resulting anxiety.Central stimulant can increase spontaneous activity obviously and reduce explore behavior,certain doses of antipsychotics can reduce explore behaviors and not affect spontaneous activity.
Product characteristics:
Spontaneous autonomous activity video analysis system available max 16pcs animals to experiment in real time,super upgrade and extension supporting,just add 1-20 thousand RMB experiment module cost that you can do other experiments;successful to access lab information management system and cooperate SOP management process of GLP center,using video camera tracking technology and achieving experiment process automation;advanced core counting and practical ensure anti-interference and accurately of identification,various ways to display coordinate,providing trajectory image,trajectory coordinate and indicator result’s export function,fine workmanship,hardware firm and durable;standard industry design;eliminating the compatibility problems of apparatus by lab upgrade,strong software system function,providing various indicator parameters,avoiding the subjective error from artificial counting and interference to experimental animals.experimental cage easy to clean and available for long time and short time,it also can do video analysis under dark condition and smaller interference for animals.
Experiment mode:road mode,9 palace,16 palace,25 palace.
Technical indicator:
1.Rat activity box size:350*350*350mm
2.Mice activity box size:200*200*300mm
3.Material:acrylic,alloy frame
4.Available max 16 animals to experiment in real time.
5.Camera:box with exhaust
6.Clarity:540/600
7.Color:black white or colorful.
8.Min Intensity of illumination:<0.005Lux
9.Can export into Excel,easy for used to analysis and characteristic in Excel,SPSS,SAS
10.Camera frequency:28/30p 600X
11.Camera resolution:640*480
12.Camera power:12V 5A
13.Camera type:2.8-4mm
14.Encryption dog:USB 2.0 plug
15.Signal transportation way:power and signal one line 10m
16.Video collection module:USB 2.0 video collection card(supporting potable)
Packing list
NO |
Name |
qty |
1 |
spontaneous autonomous activity box |
1 |
2 |
video analysis software installation panel |
1 |
3 |
camera |
1 |
4 |
camera frame |
1 |
5 |
camera lens |
1 |
6 |
video collection card |
1 |
7 |
video and camera power line |
1 |
8 |
camera transformer |
1 |
9 |
USB data Encryption dog |
1 |
10 |
manual |
1 |
11 |
service commitment |
1 |
12 |
certificate of approval |
1 |
