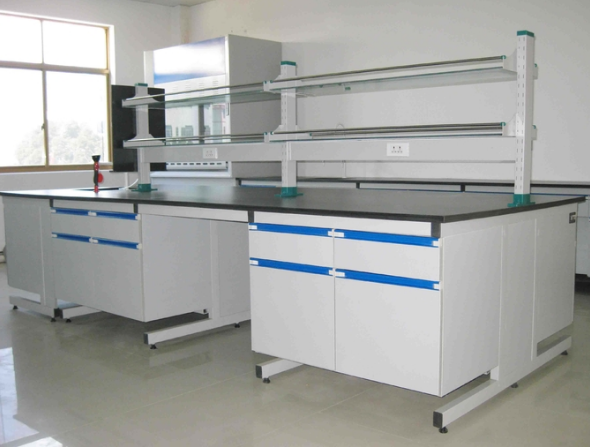

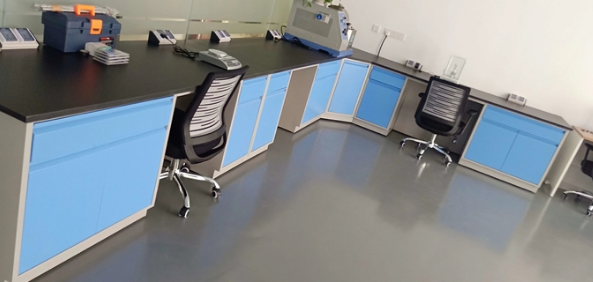

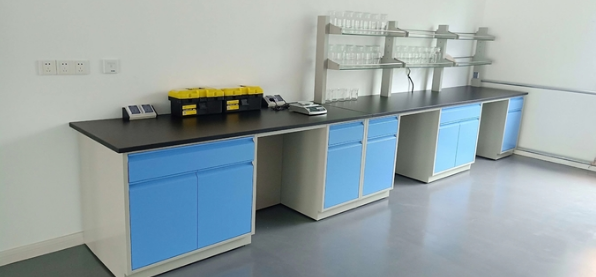

Steel Wooden Structure Central Lab Table

Lab furniture is one new environmental protection product, non-toxic, tasteless and pollution-free, ensuring the safety and health of laboratory operators. Slide Rail: use 3- section rolling ball slide rail, light smooth and no noise when slide, high strength and not deformed after long term load, can be used normally more than 100/50,000 times. - Hinge: use damping hinge, with opening angle is 90° or 110°, and it can be closed automatically without noise, no spring back, high strength
$1600.00
  • Steel Wooden Structure Central Table H Frame Island Bench
  • Steel Wooden Structure Central Lab Table
  • Steel Wooden Structure Central Lab Table
  • Steel Wooden Structure Central Lab Table
  • Steel Wooden Structure Central Lab Table

SPECIFICATION

Features
Workop: use 12.7mm thick phenolic resin(solid core physiochemical)board, all surrounding edges are double-thickened to 25.4mm, anti-static, waterproof, easy to clean, strong load-bearing, chemical corrosion resistance, high temperature resistance of 180 ℃, good scratch resistance, beautiful and smooth without hurting hands.
epoxy resin board, ceramic board, stainless steel sheet or marble is optional.

Main Frame (H Frams or Frames and Beams): use 60*40*1.5mm high quality steel tube, the surface is pickled and phosphorized and coated with epoxy resin powder, making the frame stable, exquisite appearance, with good corrosion resistance, good load-bearing performance, long service life.
The beams would be fixed on vertical frames by screws or blind rivets.

Base Cabinet:
1- DoorDrawer and Baffle(removable panels): use 18mm thick high quality melamine board, all sections are sealed by high quality PVC, integrated with the wood board. with anti-corrosion, fire, moth and other properties.
(MDF, HDF is optional)
2- Drawer Slide: use 3- section rolling ball slide rail,light smooth and no noise when slide, high strength and not deformed after long term load (open-close can reach to over 100,000 times).
3- Door Hinge: use damping hinge, with opening angle is 90°, ,and it can be closed automatically without noise, no spring back, high strength and can not easily be broken, open-close can reach 50,000 times at least..
4-Door  Handle: use recessed type integral molding PVC handle or U type aluminum alloy or stainless steel handle, firm and elegant appearance.

Adjustable Foot: the cabinet body is suspended from the floor about 15cm
use screw and nylon combination foot pad, with adjustable height 3-5cm,

Optional: the knee space(leg room) design for people to sit.

Technical Specifications

    Model   Length Width Worktop Height    Total Height
 XC-CB3000SW  3000mm 1500mm 800/850mm    1550/1600mm

Notes:
1. The dimension above is standard.
2. We can design and manufacture non-standard dimension as per users' requirements.
3. The price excluding reagent rack, drip rack, water sink&tap, eyewasher, etc

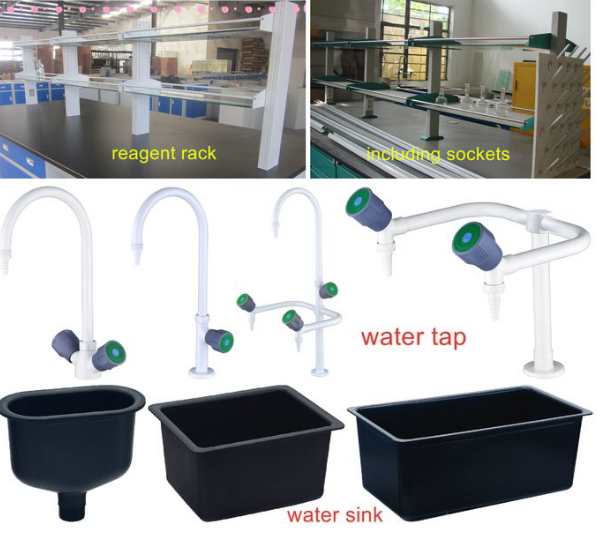

Optional Accessories

· Water Sink/Test Flume
Material: high density PP made, resistant to most chemicals, strong corrosion resistance;
Wall thickness: 5mm, up to 7mm, flat and non-deformation.

Water Tap/Faucet /Test Nozzle
Thick brass, high gloss thick epoxy resin powder; resistant to most chemicals, corrosive and heat resistance, anti ultraviolet radiation, non-toxics and safety.
Ceramic valve headwork: sealed structure, can be used for 500000 times without any leakage;
Nozzle: detachable, anti-splash bubbler is optional.
Switch knob: high grade PP knob, ergonomic design, feel comfortable, easy to operate.

Pegboard/Drip Rack/ Drying Rack
Material: high grade PP, stainless steel is available.
Size: 400*550*110mm, 550*700*120mm
400*550*260mm, 550*700*280mm
Type: single faced or double faced, there are drain holes in the middle of the bottom tray, and the pegs(drip rods) can be detachable, easy to use.
Installation mode: wall mounted/ desk mounted


 Two/Three-layer Reagent Rack:

Upright Column: use high quality rectangle galvanized steel column, spec is 50*100-120*1.0mm, surface is coated with epoxy resin powder, firm structure, anti-corrosion and elegant appearance;

Shelfuse 8-12mm thick single side frosting high quality tempered glass.
all around rim treatment, smooth and not easy to hurt the hands.

Other Fittings:
Equipped with glass support armwhich make user freely adjust the height according to comfortable requests.
The shelf edge is equipped with Ø12mm stainless steel stop rods in order to prevent reagent utensil drop, elegant appearance and useful.

Socket: there is 1 socket (size: 60*60mm, 10A 220v)) per column, 1 column per meter generally distributed.
10A or 16A socket, water-proof (3-hole or 5-hole) socket is optional
All international socket standards are available like British Standard, EU Standard, American Standard, Australian Standard, etc


Trunking
/Socket Box

Steel, Alum-alloy or PP pedestal box
10A or 16A socket, water-proof (3-hole or 5-hole) socket is optional
All international socket standards are available like British Standard, American Standard. etc

Packaging&Shipping
They would be packed in cartons for air shipping by Airlines or Express
by Airlines: Pure Cargo plane, EY, EK, ET, QR, TK, SQ,CA, CZ, KQ, NYK, etc
by Express: DHL, FedEx, UPS, TNT, EMS, Aramex, etc

if qty in large, LCL sea shipping would be one choice.
stainless lab furniture lab workbench stainless steel laboratory table wall bench 6000x750x850mm
stainless lab furniture lab workbench stainless steel laboratory table wall bench 6000x750x850mm

Application
biological pharmacy, biological analysis, plant culture, environmental test, electronic instruments and scientific research, etc.
