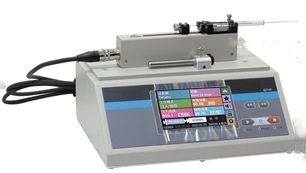

●The microinjection pump is composed of two parts: controllerand execution unit, with exquisite structure, high precision and stable operation;
●The controller and the execution unit are separated, connecte by a cable, and equipped with a quick-plug connector, which isconvenient for disassembly and assembly, and can be used withother instruments and equipment, such as a stereotaxic;
●The execution unit can be matched with a 0.5μL～100μLsyringe, which is suitable for various microinjection experiments;
Features:
•LF-Touch-OS software, stable, reliable and powerful.
•4.3-inch color LCD touch-screen, large icons, make the device easier to use.
•Multiple working modes are available.
•Separate design of controller and execution unit, easy to install and fix.
•Screen lock and key mute.
•Indicator light shows clear working state.
•Support a variety of standard syrings and can customize syringes.
•High precision control.
•RS485, Modbus Protocol.
•External signals control start, stop and direction.
•Power: 100-240V, 50/60Hz, 1A fuse.
Syringe specification and flow reference table
Syringe specification Internal diameter(mm) Minimun flow(nl/min) Maximun flow(μl/min)
0.5μl 0.103 0.005 0.761
1μl 0.146 0.010 1.531
2μl 0.206 0.020 3.047
5μl 0.3257 0.051 7.618
10μl 0.485 0.112 16.893
25μl 0.729 0.254 38.166
50μl 1.03 0.507 76.190
100μl 1.457 1.016 152.456
