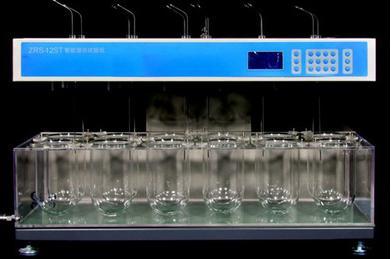

Tablet Dissolution Tester tests drug dissolution of tablets and capsules following USP, BP and IP standards. Equipped with 12 vessels and 12 shafts in linear layout, it features an automatically flip-over head. SUS316L basket and paddle assemblies, magnetically circulated water bath for uniform heating. MPU controls temperature, speed and timing with LED display, auto-test, self-diagnosis and alarm functions for pharmaceutical R&D and QC.

$999.00

Get the latest quote

SPECIFICATION

Overview

Tablet Dissolution Test Apparatus is used to determine the release of active pharmaceutical ingredients from tablets, capsules and other dosage forms in compliance with USP, BP and IP requirements. It is essential equipment for pharmaceutical formulation development, quality control and laboratory research.

Features

12 vessels and 12 stirring shafts arranged in a single line
Smooth and flexible automatic turnover of the instrument head
Basket and paddle assemblies fabricated from imported SUS316L stainless steel
Magnetic circulating water bath delivers uniform heating and consistent bath temperature
MPU microprocessor automatically controls temperature, rotation speed and time; parameters can be preset freely
Simple keypad operation with LED display; preset and real-time data shown alternately
Automated functions: auto-test, self-diagnosis and auto-alarm

Technical Parameters

Item	Specification
Speed range	20−200 rpm
Speed accuracy	±1 rpm
Temperature range	Ambient to +45.0°C
Temperature accuracy	±0.1℃
Temperature stability	±0.3℃
Preset timing	9 programmable points, 0−999 min
Stored test methods	300 methods, supports 9 sampling time intervals per method
Time accuracy	±0.5 min
Paddle radial run-out	±0.5 mm
Basket radial run-out	±1.0 mm
Power supply	220V/50Hz/600W or 110V/60Hz/1100W
