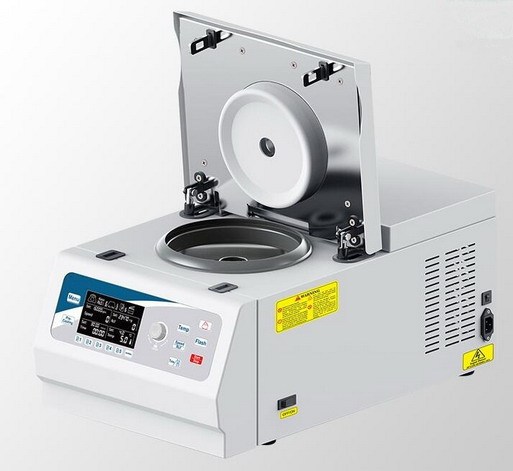

The micro high-speed freezing centrifuge has the advantages of powerful functions, high universality, and simple operability. It adopts advanced control technology, reliable quality, and superior performance, and is widely used in medical laboratories, biochemical and molecular biology research, as well as conventional analysis in industrial laboratories. It is particularly prominent in experimental research on genetic genes, protein nucleic acids, and PCR products. It can be adapted to various different rotors to meet the application needs of daily experiments.
Product features:
Adopting a maintenance free brushless variable frequency induction motor, with a speed range of 100-16000rpm and an accuracy of ± 10rpm;
A reliable Infineon vector sine wave drive control system that can accurately control speed, time, and relative centrifugal force;
A separate flash instantaneous centrifugal button can be pressed and held to achieve fast and convenient centrifugation;
High strength host and rotating head materials can resist various chemical corrosion, have sealing performance and unlimited high-temperature disinfection function, Teflon coated stainless steel cavity, good corrosion resistance, in-situ foaming, and good insulation effect; Reliable and convenient cover opening device for accidental power outage; The cover is equipped with a speed measuring hole, which is convenient for speed monitoring and meets GMP requirements;
Equipped with automatic ID recognition function for multi turn high-speed models, it is safer and more convenient to use. The door cover protection, overspeed and imbalance detection system can monitor the centrifugal process in real-time, ensuring the safe operation of the instrument. When the operation is completed, errors or imbalances occur, the sound signal will be displayed, and the operation will stop at the same time. LC D will display the result code;
Equipped with sealing angle rotating heads and rotor covers to prevent personnel from being contaminated by samples;
Stainless steel chamber, sturdy construction, suitable for continuous use, with a new and innovative electronic control automation suction double lock, achieving easy and fast opening and closing of the machine cover, making the opening and closing of the machine cover quiet and safe;
Preferred imported 5-inch LCD with bright black background and white text LCD display;
desktop high-speed freezing centrifuge
source
AC230V/50~60Hz
Input power [W]
650W
Large capacity [ml]
50ml (5ml × 10)
Higher speed [r/min.]
16000/speed step increase of 10rpm
Large relative centrifugal force[ × G]
23470/step increase of relative centrifugal force by 10 × G
driving system
Maintenance-free brushless induction variable frequency motor direct drive
Effective centrifugal time
1~10H/1~59Min/1~59Sec/Continuous Centrifuge (Hold) mode
Static temperature setting range
-20 ℃~+40 ℃/step increase of 0.5 ℃/display accuracy of 0.1 ℃/control accuracy of ± 1 ℃
Control temperature under high load/speed
-12 ℃~+40 ℃/step increase of 1 ℃/display accuracy of 0.5 ℃/control accuracy of ± 1 ℃
Misoperation/fault alarm
Sound prompt+display code
Faster acceleration time
16 Sec
Faster deceleration time
18 Sec
control mode
Infineon vector sine wave drive
Display method
Imported 5-inch LCD with bright black background and white text LCD
Stored program
10 built-in storage programs/5 panel shortcut program calls/equipped with NORAML buttons
Door cover locking method
Electric control automation suction type double lock
Control method
Physical buttons+touch control
Noise at higher speeds
≤ 56dB
Weight (without rotor) [Kg]
49Kg
Size: Long × wide × Height [mm]
three hundred and sixty × six hundred × two hundred and eighty
Interference suppression standard
EN 61010-1, EN 61010-2-020, EN 61326-1, EN 61010-3-2/A2
Protection level
IP21
temperature range
-20 ℃~+40 ℃
Note: At 23 ℃ ambient temperature
