Product desription

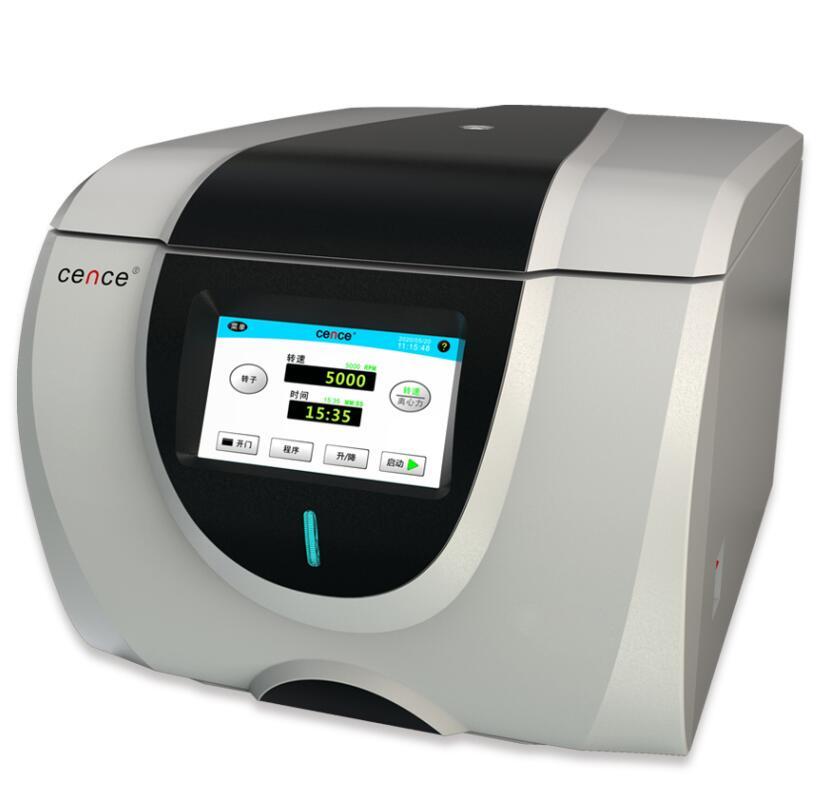

This high-speed desktop centrifuge provides you with the most cost-effective solution, suitable for medium flux applications with centrifugal forces up to 25100 x g (19000 r/min); Provide a series of rotors and adapters with various excellent functions, suitable for 0.2mL to 250mL centrifuge tubes and reagent bottles, as well as MTP, PCR, and deep well plates.
The high-definition and high brightness 7-inch touch screen can be operated directly with gloves, and the setting parameters and operating parameters are displayed on the same screen, making the display intuitive and easy to operate.
Speed, time, centrifugal force (RCF), acceleration and deceleration gears can be set by directly inputting numerical values through the touch screen, which is simpler, faster, and more accurate than traditional rotary operation.
◆ Automatic closing of electronic door lock, only by gently closing the door cover, it can automatically close. When running, the door cover cannot be opened, the centrifuge cannot be started if the door cover is not closed, and a door lock fault is reported, which is safe and reliable.
◆ Program settings: Through the program, the reproducibility of the experiment can be easily achieved, and it supports naming the program. When using it, simply call the corresponding name to reproduce the entire experimental plan; It can support 5-stage step centrifugation to meet diverse experimental needs.
◆ Data information: operation history records, operation fault records, which can be directly viewed on the screen.
11 types of acceleration curves and 12 types of deceleration curves effectively prevent secondary suspension and achieve the best centrifugal effect (the 10th gear can be customized according to experimental requirements).
Fast acceleration, the fastest acceleration only takes 10 seconds.
Equipped with automatic rotor recognition function to prevent excessive speed usage.
Equipped with multiple protections such as abnormal door locks, overspeed, motor overheating, misoperation, communication faults, and automatic diagnosis of machine faults, ensuring personal and machine safety.
◆ The front panel and door cover are molded in one go, with a streamlined and elegant appearance that conforms to ergonomics.
◆ Aerodynamic elliptical test cup, reducing resistance, noise, and energy consumption.
Various adapter options from 0.2ml to 250ml make it an ideal choice for clinical testing and laboratory analysis.
technical parameter
Maximum speed 19000r/min
Maximum relative centrifugal force 25100xg
Maximum capacity 4 × 250ml (horizontal rotor)
Speed accuracy ± 20r/min
Timing range: 1min~99h59min
Timing mode start timing, to speed timing, instantaneous centrifugation, continuous timing mode
Whole machine noise ≤ 65dB (A)
Power supply AC220V ± 22V 50/60Hz
Overall power 650W
External dimensions 436 × five hundred and sixty × 380 (mm)
Outer packaging size 547 × seven hundred and twenty-seven × 432 (mm)
Weight 48kg
