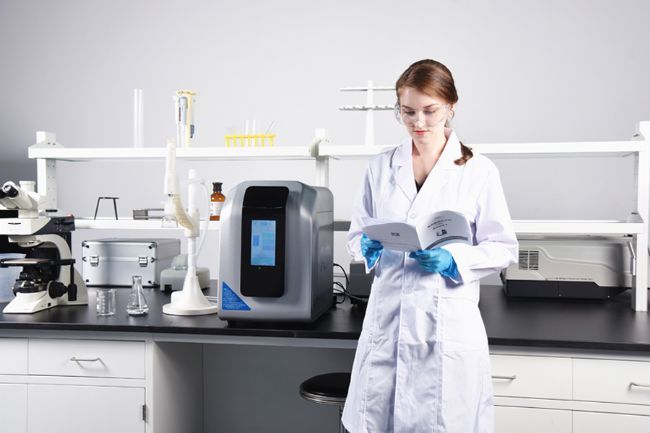

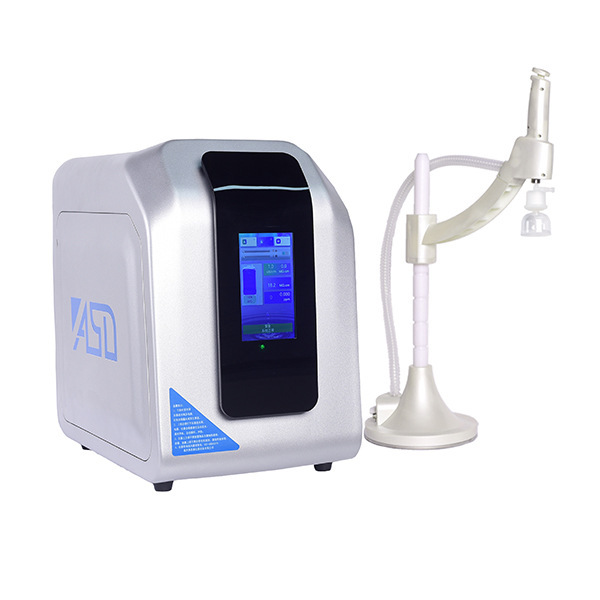

Product Introduction:The E10 model adopts an integrated ABS chassis, intelligent human-machine interaction control system, and a 7-inch LCD color capacitive touch screen, equipped with a 2.5m radius independent water arm. It is a laboratory small and medium-sized ultra pure water system that can provide you with efficient, high-quality, continuous, and stable Grade III pure water/Grade I ultra pure water, with a water production capacity of 10L/h, and is equipped with a 30 liter HDPE cone bottom water tank (which can be upgraded to 60 liters). The water tank can be optionally equipped with UV disinfection function and terminal ultrafiltration, Optional TOC online detection and display function, optional Internet of Things (IOT) module and cloud platform function, optional consumable IC chip recognition function, can be set for timed and quantitative water intake, RO membrane automatic flushing function, and has the function of querying the historical water volume and water quality record time of water production/intake. The operating language can be freely selected in both Chinese and English.

Product parameters:Produced water quality: pure water grade III/ultra pure water grade I
Production water flow rate @ 25 ℃+/-15% 10L/h
Pure water (Class III) conductivity ≤ 5 μ S/cm @ 25 ℃
Ultra pure water resistivity 18.2 M Ω · cm @ 25 ℃
TOC (with 185/254 nm UV lamp)<3 ppb ①
Instantaneous flow rate>1.2 L/min
MW organic matter retention rate>200>99%
Particles (particle size>0.22 μ m) <1 particle/mL
Endomycin (heat source)<0.001 EU/ml
Inlet TDS ② ≤ 400ppm
Device size Host: 530 × three hundred and fifty × 480mm
① Inlet TOC<100ppb
② Inlet water source: general urban tap water, water source with inlet TDS ≤ 400ppm, water pressure of 0.1-0.4MPa, water temperature of 5-35 ℃

Product application:This model combines excellent pre-treatment and advanced reverse osmosis technology to directly produce pure/ultrapure water from convenient and economical tap water. It is suitable for the preparation of high-purity standard solutions such as atomic absorption and high-performance liquid, precision instrument analysis, high-precision optical lens washing, analytical reagents and drug preparation, trace element analysis water, molecular biology experiment water, etc.
Product features:
The E10 model has automatic reminders for the expiration of filter elements and UV lights at various stages, and can use the cycle query function; The power supply adopts international universal bistable switching power supply; The international brand electromagnetic valve effectively ensures the stability of the entire machine operation; The key to ensuring stable water quality is the selection of a silent automatic stabilizing pump, which ensures no vibration, noise, or pressure fluctuations during system operation; No electromagnetic radiation, no impact on the working environment; Select imported reverse osmosis membranes from the United States, with stable performance, high desalination rate, and long service life; The system is designed to be sealed to prevent secondary pollution.
Product advantages:(1) High safety factor
1. The entire machine adopts an external adapter, which outputs a DC 24V safe voltage power supply (isolated power supply 220V voltage, there is no risk of electric shock), and comes with short circuit and overload protection;
2. The entire machine is equipped with a constant pressure pump and system with a constant pressure device, which ensures stable pressure supply and prevents pipe fittings and filter columns from bursting due to excessive pressure, ensuring the safety of the entire machine's water pressure and extending the service life of consumables such as reverse osmosis membranes;
3. The motherboard comes with built-in water leakage detection protection, which can be prompted by text, beeps, and indicator lights. Multiple external detection probes can also be selected and placed arbitrarily.

(2) High quality, low consumables
1. Adopting a two-stage reverse osmosis membrane process can effectively remove over 98% of soluble salts and over 99% of colloids, microorganisms, particles, and organic matter in water;
2. 185nm/254nm dual wavelength ultraviolet lamp. Through multiple experimental detection data, the scientific ratio between the two waves is obtained, and the reasonable and efficient use of the ultraviolet lamp effectively stabilizes water quality;
3. Through more than a year of experimental data, a scientifically reasonable resin ratio has been obtained for the purification column, which effectively improves the adsorption and dissolution of organic matter, effectively degrades TOC (controlled below 10ppb), and achieves a resistivity of over 18M Ω • cm @ 25 ℃ for ultrapure water.
(3) Consumables are easy to replace
1. Consumable replacement does not require tools, and can be disassembled and assembled with bare hands, without any professional knowledge;
2. Consumables such as pre-treatment, RO membrane (reverse osmosis membrane), ion exchange column, etc. are all connected with quick lock buckles. Simply press, pull, rotate, pull, and push five steps to complete the replacement and installation of commonly used components, making machine maintenance simple and convenient.
(4) Intelligent
1. An intelligent human-machine interaction control system, with a 7-inch LCD color capacitive touch screen, fully realizing human-machine dialogue function;
2. The timed (quantitative) water intake function can be set arbitrarily, with independent settings and control for pure and ultrapure water, eliminating the need for manual water intake waiting time and manual supervision;
3. Intelligent identification accurately and effectively records the usage of consumables, ensuring the safety of users' equipment and water quality.
(5) Automation
1. RO membrane automatic flushing can be freely set according to the characteristics of local water quality, especially water sources with high turbidity and hardness. The RO membrane flushing function can be independently set: flushing frequency, interval flushing on/off time, which can effectively extend the service life of the RO membrane;
2. UP automatic circulation ensures water quality safety and extends the service life of consumables;
3. Automatic reminder of the expiration of the filter element and UV lamp lifespan at each stage;
4. When the water quality drops and consumables need to be replaced, the host will automatically remind.
(6) IoT Cloud Platform
1. Remote network data collection, monitoring, and management functions can be achieved through mobile phones and PC terminals, enabling real-time understanding of device operation and consumables usage, timely processing of alarm information, and achieving rapid customer service response;
2. The data analysis technology based on the Internet of Things cloud platform makes device fault diagnosis more accurate, provides efficient service guarantee for customers, and makes experimental equipment networked and informationized.

(7) Alarm protection
1. Low pressure water alarm: fully automatic control, automatic shutdown protection for water/power outage/full water tank;
2. Water quality alarm: multiple unqualified water quality alarm settings function, with dual automatic prompts of text and indicator lights.
(8) HDPE cone bottom water tank
1. Raw materials and color masterbatch are tested with third-party data to obtain scientific ratios and formulas;
2. Made of HDPE material, non-toxic, odorless, wear-resistant, and resistant to acid and alkali corrosion;
3. Can add disinfection modules for easy cleaning and disinfection of water tanks;
4. The conical bottom water tank can completely drain the water inside the tank to prevent secondary pollution;
5. The use of pressure sensors to detect water level has advantages such as stable water quality and enhanced s
ervice life compared to floating ball water level measurement.
Product configuration:1. One ultra pure water host
2. A set of UP water intake arms
3. One terminal filter
4. One set of integrated pre purification column (built-in to the host)
5. One set of dual wavelength ultraviolet lamps (built-in to the host)
6. A set of professional quick disassembly purification columns (built-in to the host)
7. A set of professional quick disassembly precision purification columns (built-in to the host)
8. One set of 30 liter conical bottom water storage tank
9. Install a set of accessory kits
10. One operation manual
