DESCRIPTION

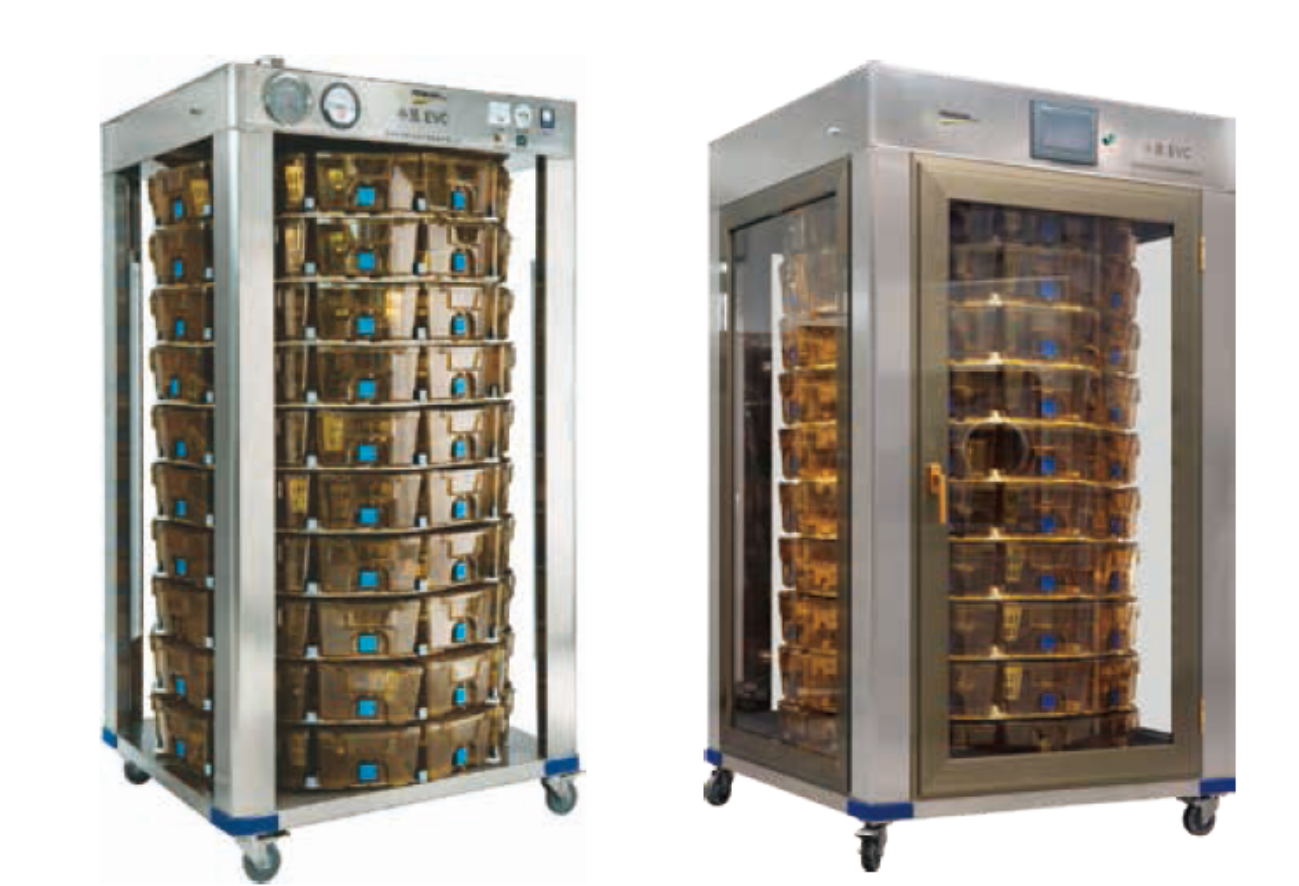

The new generation EVC small animals Ventilation feeding svstemusing clean environment baier system , so that the baier air can flowsteadily from the front of cage into the cage through filter , then exit thecage after being filtered the end of cage , to make sure the cleanlinessand air change times of each cagee product takes the rotary design , greatly saving the space of theanimal room . and the rotation is stableThe whole system is placed in negative pressure environment toeffectively prevent cross-infection between the cages , and ensure thesafety of the human beings an independent negative pressureventilation design to prevent cross contaminationne unique front and rear low resistance filter can keep the inside ofcage clean , and ventilation even taken from the rack and can becompetent for the short distance transport in the ordinary environmentFrame configuration and materal : The standard confiquration of thetop control unit consists inverter , Germany EBM low noise fanstepless speed change , air volume adiustable , with negative pressuredifference gauge , Thermo-hygrometer for convenient monitoringquipped with intelligent timing switch , for intelligent timing control foranimal lightinghe product has the advantages of compact structure , beautifulappearance , strong practicability , simple and convenient operationwide application in the area of life science , animal feeding , healthquarantine and so on , Which is recognized by the majonity of users
Product Features
1. Equipped with a gasification hydrogen peroxide disinfection interface, which can be used for online disinfection of the host and the entire machine.
2. The host is equipped with an air supply system and an exhaust system. The air supply system is equipped with an inlet primary efficiency filter and a HEPA high-efficiency filter, with a filtration efficiency of 9999%.
3. The host adopts a 7-inch HM true color operation interface, which can visually display: temperature, humidity, pressure difference, operation status of supply and exhaust fans, air change frequency, backup battery power, etc.
4. The host has real-time alarm function.
5. The host is equipped with a built-in UPS power supply. When the host is powered off, the backup power supply is automatically connected and has a 12 hour battery life.
6. All cage frames are made of stainless steel, with a small diagonal error of ±0.5mm in the finished product.
7. After the cage is detached from the cage, the air supply and exhaust valves of the cage can be automatically closed immediately, so that there is no leakage when removing the cage
8. The cage cover adopts a double silicone O-ring to seal the spring air nozzle. When in use, the inlet and exhaust valves can also maintain a good sealing state between the cage box and the air nozzle.
9. Stainless steel mesh cover: The stainless steel wire diameter of the main frame of the mesh cover is 4.0mm, and the rectangular mesh stainless steel wire diameter inside the main frame is 1.8mm. The finished mesh cover should undergo surface electrochemical treatment to ensure its surface is smooth and free of burrs.
10. Each VC cage must undergo a separate airtightness test, that is, a single cage must be vacuumed to -100Pa, and the decay time from 100Pa to 0Pa should not be less than 5 minutes.
11. The cage buckle is made of aerospace engineering plastic, and the buckle has a safety device to prevent cage leakage caused by misoperation. It is easy and fast to open, not easy to break, and has a long service life.
Product Parameters
