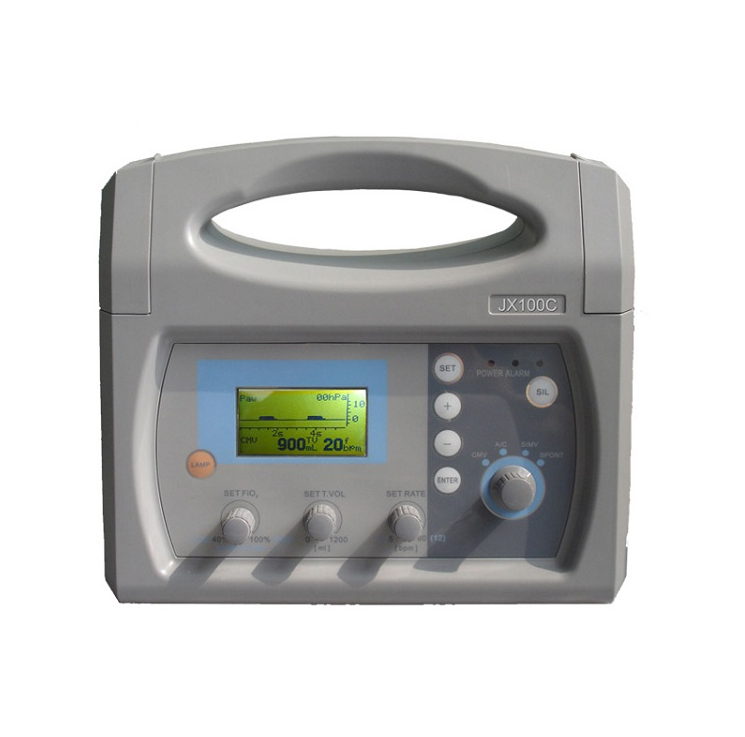

It is applicable in ambulances, ICUs, operating rooms, emergency departments, field first aid, transfer, etc.
- Microcomputer control, volume-fixed, pressure-triggered.
- LCD screen monitoring with multi-parameter data display.
- Lightweight and elegant design: the main unit weighs 3.0KG, and the total weight (including gas cylinder and accessories) is less than 7KG.
- Dual power supply (AC/DC) with a built-in rechargeable lithium battery, supporting continuous operation for more than 8 hours.
- Suitable for both invasive and non-invasive ventilation, and applicable to adults and children.
-
- Ventilation Modes: CMV, A/C, SIMV, SIGH, SPONT, etc.
- Tidal Volume: 50～1200ml, continuously adjustable with digital display.
- Ventilator Respiratory Rate: 1～60 breaths/min, continuously adjustable with digital display.
- Oxygen Concentration: 40～100%, continuously adjustable.
- Ventilator Synchronous Trigger Sensitivity: -10～0hpa.
- Positive End-Expiratory Pressure (PEEP): 0.5～20hPa.
It has multiple functions such as multi-parameter monitoring and display, various alarm prompts, and multiple safety protections.
- Power Supply: AC power supply, DC power supply, built-in lithium battery.
- Gas Source: Usable with large/small oxygen cylinders and central oxygen supply.
Composed of the ventilator main unit, carrying bag, silicone breathing circuit set, oxygen cylinder, pressure reducing valve, high-pressure oxygen tube, power charger, etc
